SKU:
GTP06031

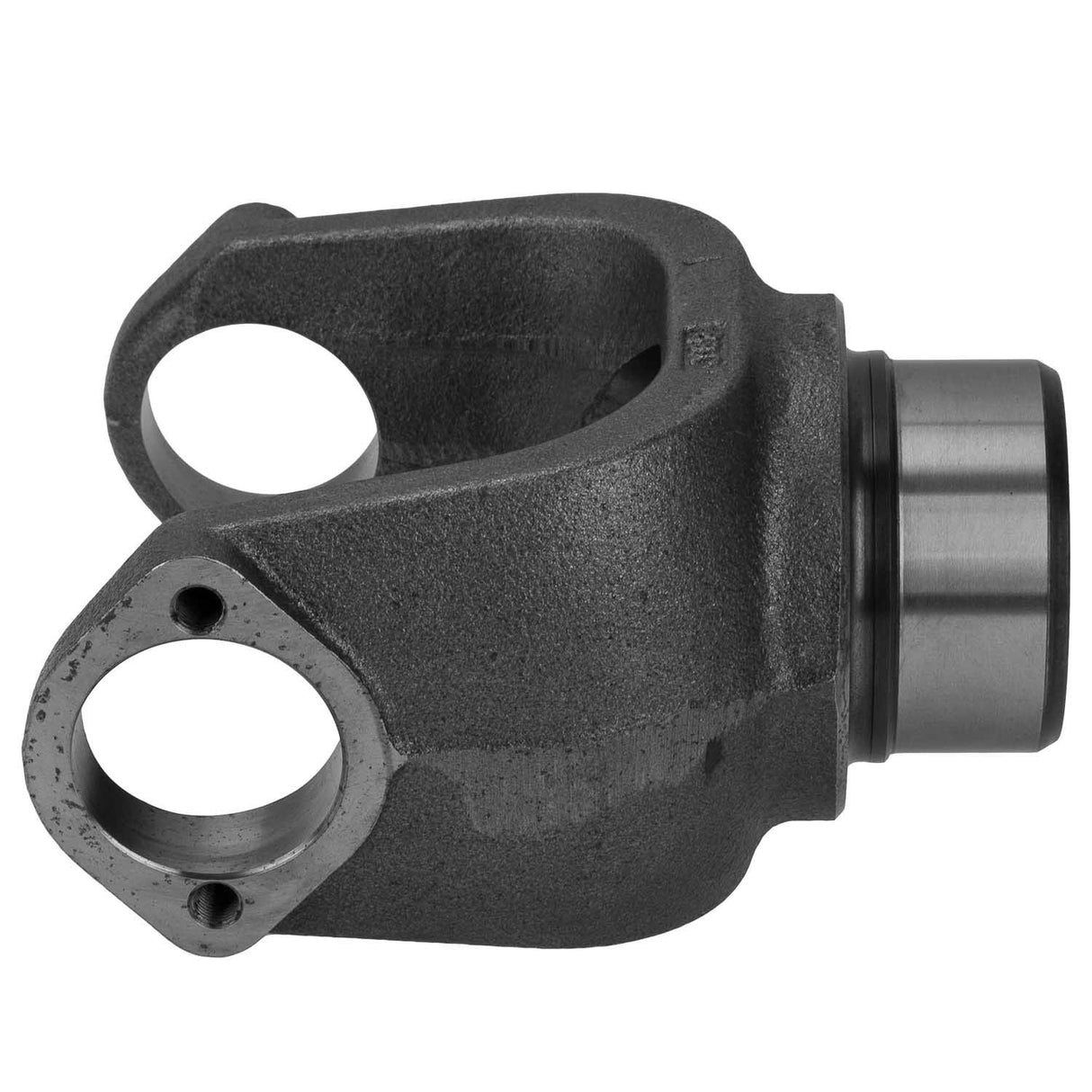

Full Round Style 1710 Series End Yoke 39 Spline | 016-4-6371, 1606-076-C, 1606076C, 1606076C1, 1633155, 1676-158-C, 17N4-6371, 17NY-S3299, 17NYS32-56, 17NYS32-99, 3260-P-120, 6-4-6371, 6-4-6371X, 6-4-6381X, 6-4-6391X, 6463711R, 6463911XR
Regular price
$97.01
Unit price
/
Unavailable
Shipping calculated at checkout.
Full Round Style 1710 Series End Yoke 39 Spline | 016-4-6371, 1606-076-C, 1606076C, 1606076C1, 1633155, 1676-158-C, 17N4-6371, 17NY-S3299, 17NYS32-56, 17NYS32-99, 3260-P-120, 6-4-6371, 6-4-6371X, 6-4-6381X, 6-4-6391X, 6463711R, 6463911XR is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Full Round Style 1710 Series End Yoke 39 Spline | 016-4-6371, 1606-...
Regular price
$97.01
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Across Ears | 6.09 Inch |
|---|---|
| Assembly | Yes |
| Bearing Cap Diameter | 1.94 Inch |
| Bearing Type | BP |
| C'bore Depth | 0.09 Inch |
| C-Bore Diameter | 0.9 |
| Centerline To End | 6.25 |
| Centerline to End | 6.25 Inch |
| Dimensions | Spline Size: 2.024 - 39 Major Diameter: 2.024 Ground Hub Diameter: 3.000 Length Thru Hole: 2.312 Centerline To End: 6.250 CBore Depth: 0.090 Inch |
| Ground Hub Diameter | 3 Inch |
| Ground Hub Diameter | 3 Inch |
| Includes Slinger/Plug | Yes |
| Involute Spline | No |
| Joint Angle | 45 Degrees |
| Length Thru Hole | 2.312 Inch |
| Length Thru Hole | 2.312 Inch |
| Major Diameter | 2.024 Inch |
| Material | Steel |
| Maximum Hub Diameter | 3 Inch |
| Outside Yoke Dimension | 6.19 Inch |
| Series | 1710 Series (Full Round) |
| Spline Diameter | 2 Inch |
| Spline Length | 2.31 Inch |
| Spline Quantity | 39 |
| Spline Size | 2.024 - 39 Inch |
| Style | BP |
| Type | Splined Hole |
| Universal Joint Series | 1710 |
| Yoke Bearing Dimension | 1.938 Inch |
| Yoke Style | HR |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Freightliner | 016-4-6371 |
| International | 1606-076-C |
| International | 1606076C |
| International | 1606076C1 |
| Spicer | 1633155 |
| International | 1676-158-C |
| Meritor | 17N4-6371 |
| Meritor | 17NY-S3299 |
| Meritor | 17NYS32-56 |
| Spicer | 17NYS32-99 |
| Meritor | 3260-P-120 |
| Spicer | 6-4-6371 |
| Spicer | 6-4-6371X |
| Spicer | 6-4-6381X |
| Spicer | 6-4-6391X |
| World American | 6463711R |
| World American | |
| World American | 6463911XR |
| Neapco OE Series | N6-4-6371 |
| Spicer | PAC6-4-6371 |
| Genuine Newstar | S-9906 |
| Genuine Newstar | S9906 |
| Genuine Newstar | SD-6-4-6371 |
| Spicer | SD646371 |
| Freightliner | SP646371X |
| Freightliner | TDA 17NYS32 99 |
