SKU:
GTP11826

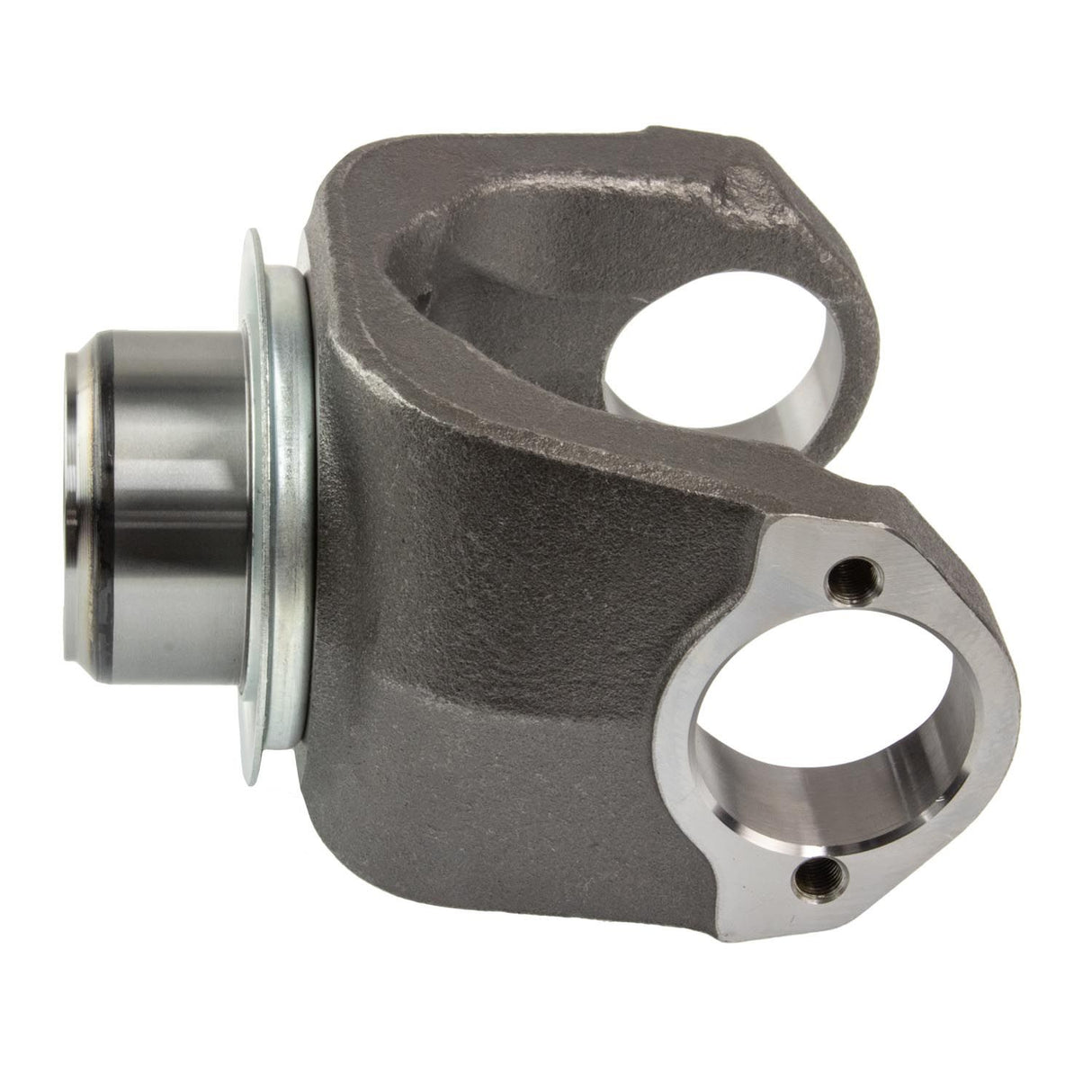

Full Round Style 1710 Series End Yoke 39 Spline | 127558, 17N4-9041X, 17NYS32-90A, 6-4-8441R, 6-4-9041X, 649041, S-17094, S17094, SD-6-4-9041X, SD649041X, SP 6 4 9041X, SP649041X, TDA 17N4 9041X
Regular price
$150.51
Unit price
/
Unavailable
Shipping calculated at checkout.
Full Round Style 1710 Series End Yoke 39 Spline | 127558, 17N4-9041X, 17NYS32-90A, 6-4-8441R, 6-4-9041X, 649041, S-17094, S17094, SD-6-4-9041X, SD649041X, SP 6 4 9041X, SP649041X, TDA 17N4 9041X is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Full Round Style 1710 Series End Yoke 39 Spline | 127558, 17N4-9041...
Regular price
$150.51
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | Yes |
|---|---|
| Bearing Type | BP |
| C'bore Depth | 0.25 Inch |
| C-Bore Depth | 0.25 Inch |
| Centerline to End | 5.25 Inch |
| Centerline To End | 5.25 |
| Dimensions | Spline Size: 2.024 - 39 Major Diameter: 2.024 Ground Hub Diameter: 2.625 Length Thru Hole: 2.500 Centerline To End: 5.250 CBore Depth: 0.250 Inch |
| Ground Hub Diameter | 2.625 Inch |
| Includes Slinger/Plug | Yes |
| Involute Spline | Yes |
| Length Thru Hole | 2.5 Inch |
| Length Thru Hole | 2.5 Inch |
| Major Diameter | 2.024 Inch |
| Material | Steel |
| Maximum Hub Diameter | 2.625 Inch |
| Outside Yoke Dimension | 6.19 Inch |
| Series | 1710 Series (Full Round) |
| Spline Quantity | 39 |
| Spline Size | 2.024 - 39 Inch |
| Style | BP |
| Type | Splined Hole |
| U Joint Cap Diameter | 2.024 Inch |
| Yoke Bearing Dimension | 1.938 Inch |
| Yoke Style | HR |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Eaton | 127558 |
| Meritor | 17N4-9041X |
| Meritor | 17NYS32-90A |
| World American | 6-4-8441R |
| Spicer | 6-4-9041X |
| Spicer | 649041 |
| Genuine Newstar | S-17094 |
| Genuine Newstar | S17094 |
| Genuine Newstar | SD-6-4-9041X |
| Spicer | SD649041X |
| Spicer | SP 6 4 9041X |
| Freightliner | SP649041X |
| Freightliner | TDA 17N4 9041X |
