SKU:
GTP11846

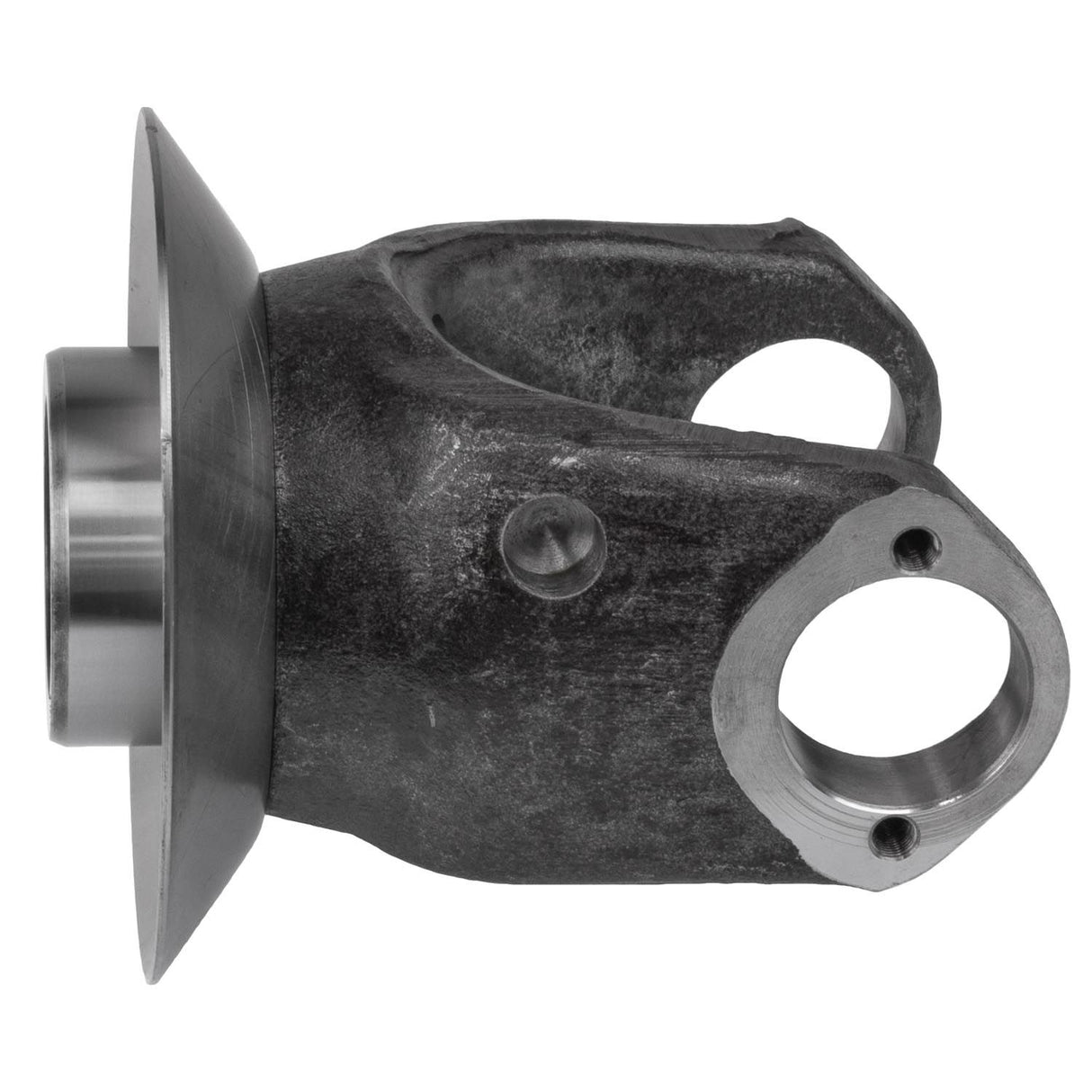

Full Round Style 1710 Series End Yoke 46 Spline | 016-4-7771X, 1666-086-C, 1666086C, 1666086C91, 17N 4 7771X, 17N4-777-1X, 17N4-7771X, 17NYS38 38A, 17NYS38-38A, 30011-0196, 6-4-7761, 6-4-7771R, 647771X, A-3260-R-1058, N6-4-7771X, N647771X, NEPN6-4-7771X
Regular price
$130.54
Unit price
/
Unavailable
Shipping calculated at checkout.
Full Round Style 1710 Series End Yoke 46 Spline | 016-4-7771X, 1666-086-C, 1666086C, 1666086C91, 17N 4 7771X, 17N4-777-1X, 17N4-7771X, 17NYS38 38A, 17NYS38-38A, 30011-0196, 6-4-7761, 6-4-7771R, 647771X, A-3260-R-1058, N6-4-7771X, N647771X, NEPN6-4-7771X is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Full Round Style 1710 Series End Yoke 46 Spline | 016-4-7771X, 1666...
Regular price
$130.54
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Across Ears | 6.09 Inch |
|---|---|
| Assembly | Yes |
| Bearing Cap Diameter | 1.94 Inch |
| Bearing Type | BP |
| C'bore Depth | 0.14 Inch |
| Centerline To End | 6.5 |
| Centerline to End | 6.5 Inch |
| Dimensions | Spline Size: 2.390 - 46 Major Diameter: 2.390 Ground Hub Diameter: 3.250 Length Thru Hole: 2.344 Centerline To End: 6.500 CBore Depth: 0.140 Inch |
| Ground Hub Diameter | 3.25 Inch |
| Ground Hub Diameter | 3.25 Inch |
| Includes Slinger/Plug | Yes |
| Joint Angle | 45 Degrees |
| Length Thru Hole | 2.344 Inch |
| Length Thru Hole | 2.344 Inch |
| Major Diameter | 2.39 Inch |
| Material | Steel |
| Maximum Hub Diameter | 3.25 Inch |
| Series | 1710 Series (Full Round) |
| Spline Diameter | 2.375 Inch |
| Spline Length | 2.32 Inch |
| Spline Quantity | 46 |
| Spline Size | 2.390 - 46 Inch |
| Style | BP |
| Type | Splined Hole |
| Universal Joint Series | 1710 |
| Yoke Style | HR |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Freightliner | 016-4-7771X |
| International | 1666-086-C |
| International | 1666086C |
| International | 1666086C91 |
| Meritor | 17N 4 7771X |
| Spicer | 17N4-777-1X |
| Meritor | 17N4-7771X |
| Meritor | 17NYS38 38A |
| Meritor | 17NYS38-38A |
| Volvo Truck | 30011-0196 |
| Spicer | 6-4-7761 |
| World American | 6-4-7771R |
| Prima Brands | 647771X |
| Meritor | A-3260-R-1058 |
| Neapco OE Series | N6-4-7771X |
| Neapco OE Series | N647771X |
| Automann | NEPN6-4-7771X |
| Genuine Newstar | S-C076 |
| Genuine Newstar | SC076 |
| Genuine Newstar | SD-6-4-7771X |
| Spicer | SD647771X |
| Freightliner | TDA 17N47771X |
