SKU:
GTP11707

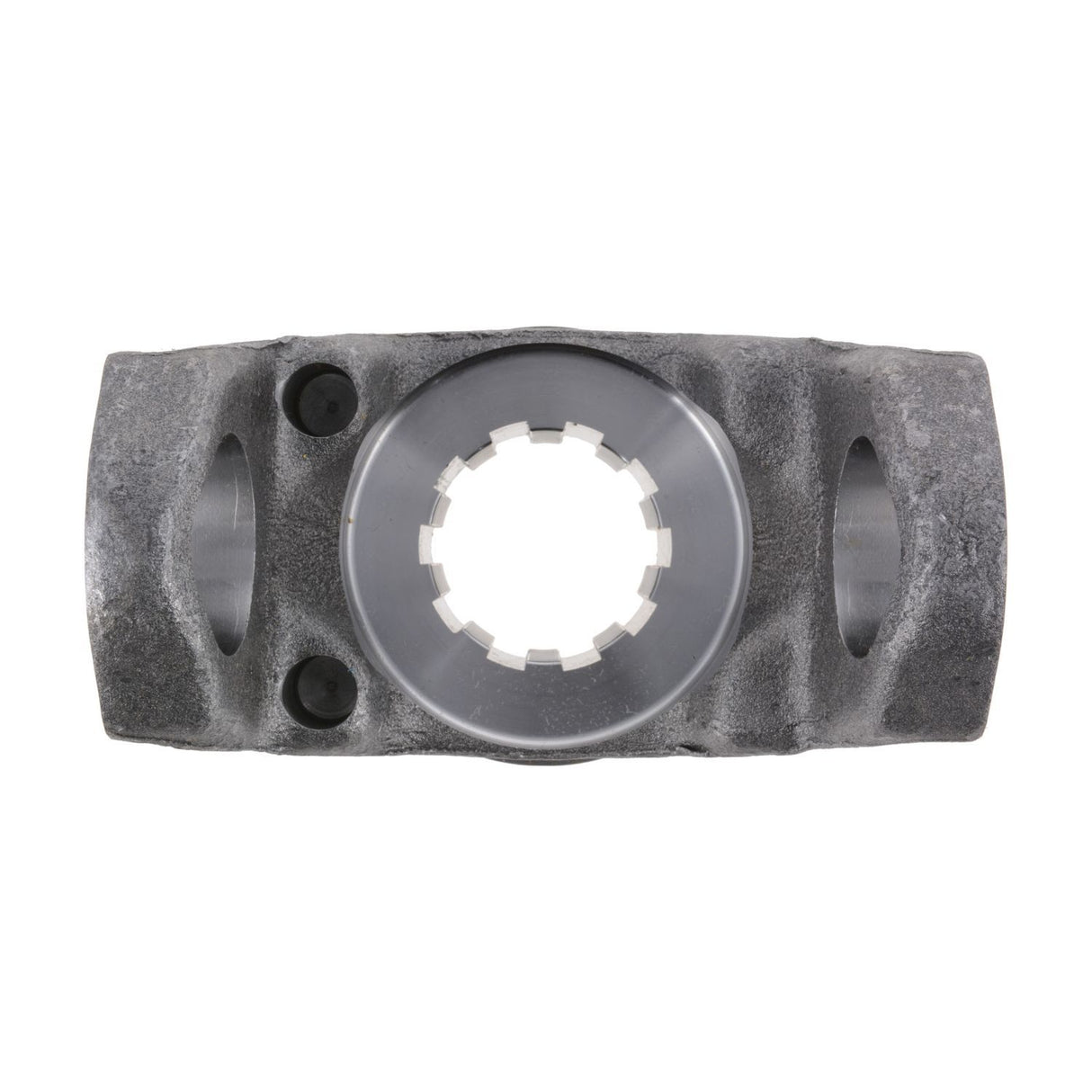

Full Round Style 1810 Series End Yoke 10 Spline | 016.5-4-3551X, 18N4-3551X, 6.5-4-3451, 6543551X, NSS6543451, NSS6543551, S-B075, SB075, SD-6.5-4-3551X
Regular price
$133.65
Unit price
/
Unavailable
Shipping calculated at checkout.
Full Round Style 1810 Series End Yoke 10 Spline | 016.5-4-3551X, 18N4-3551X, 6.5-4-3451, 6543551X, NSS6543451, NSS6543551, S-B075, SB075, SD-6.5-4-3551X is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Full Round Style 1810 Series End Yoke 10 Spline | 016.5-4-3551X, 18...
Regular price
$133.65
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | Yes |
|---|---|
| Bearing Type | BP |
| Centerline To End | 5.875 |
| Centerline to End | 5.875 Inch |
| Dimensions | Spline Size: 2.500 -10 Major Diameter: 2.500 Ground Hub Diameter: 3.750 Length Thru Hole: 3.000 Centerline To End: 5.875 Inch |
| Ground Hub Diameter | 3.75 Inch |
| Includes Slinger/Plug | Yes |
| Involute Spline | No |
| Length Thru Hole | 3 Inch |
| Length Thru Hole | 3 Inch |
| Major Diameter | 2.5 Inch |
| Material | Steel |
| Maximum Hub Diameter | 3.75 Inch |
| Outside Yoke Dimension | 7.643 Inch |
| Series | 1810 Series (Full Round) |
| Spline Diameter | 2.5 Inch |
| Spline Quantity | 10 |
| Spline Size | 2.500 - 10 Inch |
| Spline Size | 2.500 -10 Inch |
| Style | BP |
| Type | Splined Hole |
| Yoke Bearing Dimension | 1.938 Inch |
| Yoke Style | HR |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Freightliner | 016.5-4-3551X |
| Meritor | 18N4-3551X |
| Spicer | 6.5-4-3451 |
| Prima Brands | 6543551X |
| OE Aftermarket | NSS6543451 |
| International | NSS6543551 |
| Genuine Newstar | S-B075 |
| Genuine Newstar | SB075 |
| Genuine Newstar | SD-6.5-4-3551X |
