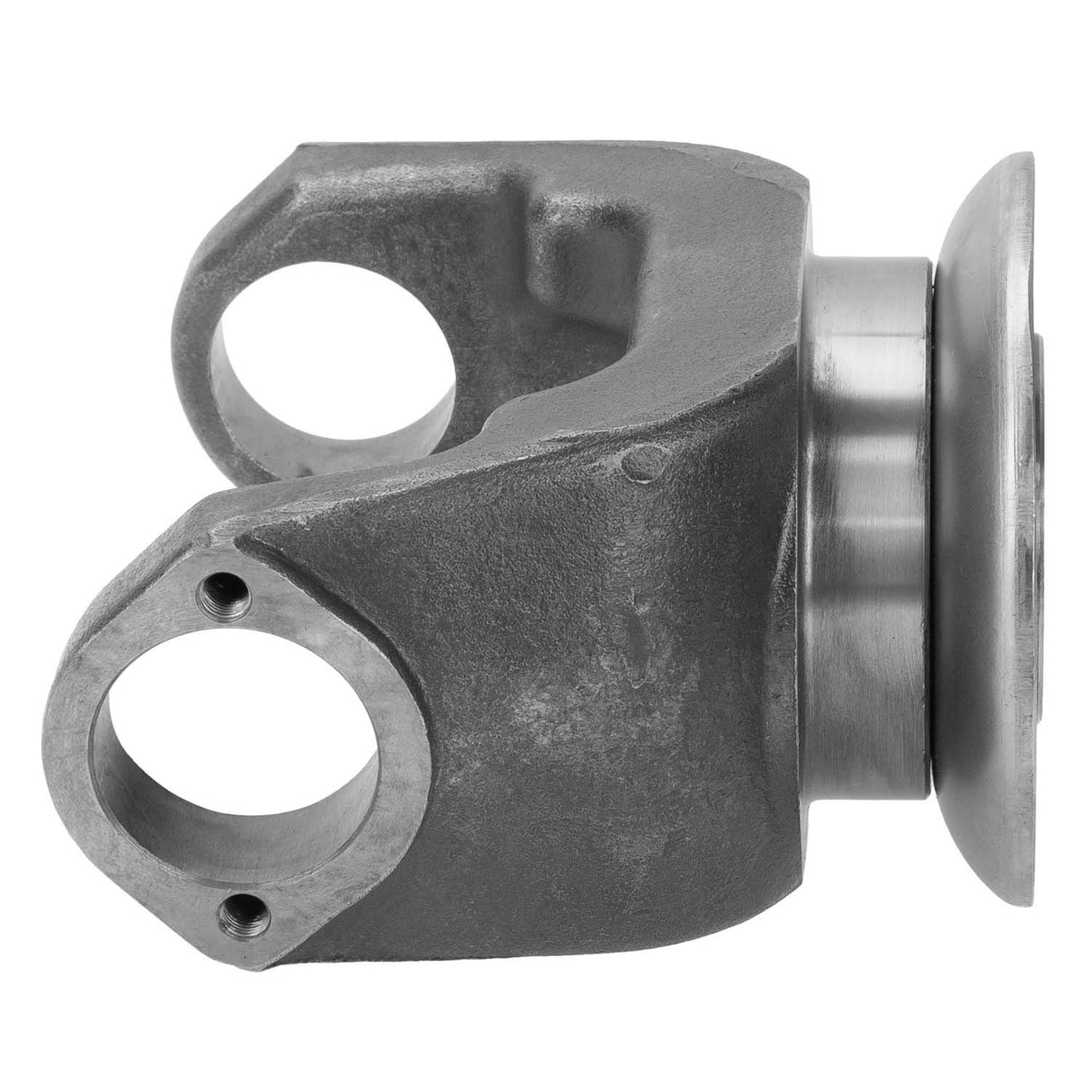

Full Round Style 1810 Series End Yoke 16 Spline | 1662-143-C, 1662143C, 1662143C91, 18N4-1891, 18N4-2531X, 18NYS38-3, 2104-6542531X, 6.5-4-1891, 6.5-4-2531X, N6.5-4-1891, N6.5-4-2531X, NEPN6.5-4-1891, NSCS6541891, PAC6.5-4-2531X, S-9167, S9167
Regular price
$119.66
Unit price
/
Unavailable
Shipping calculated at checkout.
Full Round Style 1810 Series End Yoke 16 Spline | 1662-143-C, 1662143C, 1662143C91, 18N4-1891, 18N4-2531X, 18NYS38-3, 2104-6542531X, 6.5-4-1891, 6.5-4-2531X, N6.5-4-1891, N6.5-4-2531X, NEPN6.5-4-1891, NSCS6541891, PAC6.5-4-2531X, S-9167, S9167 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Full Round Style 1810 Series End Yoke 16 Spline | 1662-143-C, 16621...
Regular price
$119.66
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Across Ears | 7.55 Inch |
|---|---|
| Assembly | No |
| Bearing Cap Diameter | 1.94 Inch |
| Bearing Type | BP |
| Centerline To End | 5.5 |
| Centerline to End | 5.5 Inch |
| Dimensions | Spline Size: 2.350 - 16 Major Diameter: 2.350 Ground Hub Diameter: 2.875 Length Thru Hole: 2.750 Centerline To End: 5.500 Inch |
| Ground Hub Diameter | 2.875 Inch |
| Ground Hub Diameter | 2.88 Inch |
| Includes Slinger/Plug | No |
| Involute Spline | No |
| Joint Angle | 32 Degrees |
| Length Thru Hole | 2.75 Inch |
| Length Thru Hole | 2.75 Inch |
| Major Diameter | 2.35 Inch |
| Material | Steel |
| Maximum Hub Diameter | 2.875 Inch |
| Outside Yoke Dimension | 7.643 Inch |
| Series | 1810 Series (Full Round) |
| Spline Diameter | 2.344 Inch |
| Spline Length | 2.75 Inch |
| Spline Quantity | 16 |
| Spline Size | 2.350 - 16 Inch |
| Style | BP |
| Type | Splined Hole |
| Universal Joint Series | 1810 |
| Yoke Bearing Dimension | 1.938 Inch |
| Yoke Style | HR |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| International | 1662-143-C |
| International | 1662143C |
| International | 1662143C91 |
| Meritor | 18N4-1891 |
| Meritor | 18N4-2531X |
| Meritor | 18NYS38-3 |
| Mack | 2104-6542531X |
| Spicer | 6.5-4-1891 |
| Spicer | 6.5-4-2531X |
| Spicer | N6.5-4-1891 |
| Neapco OE Series | N6.5-4-2531X |
| Automann | NEPN6.5-4-1891 |
| International | NSCS6541891 |
| Spicer | PAC6.5-4-2531X |
| Genuine Newstar | S-9167 |
| Genuine Newstar | S9167 |
| Genuine Newstar | SD-6.5-4-2531X |
| Freightliner | SP6.542531X |
