SKU:
GTP11710

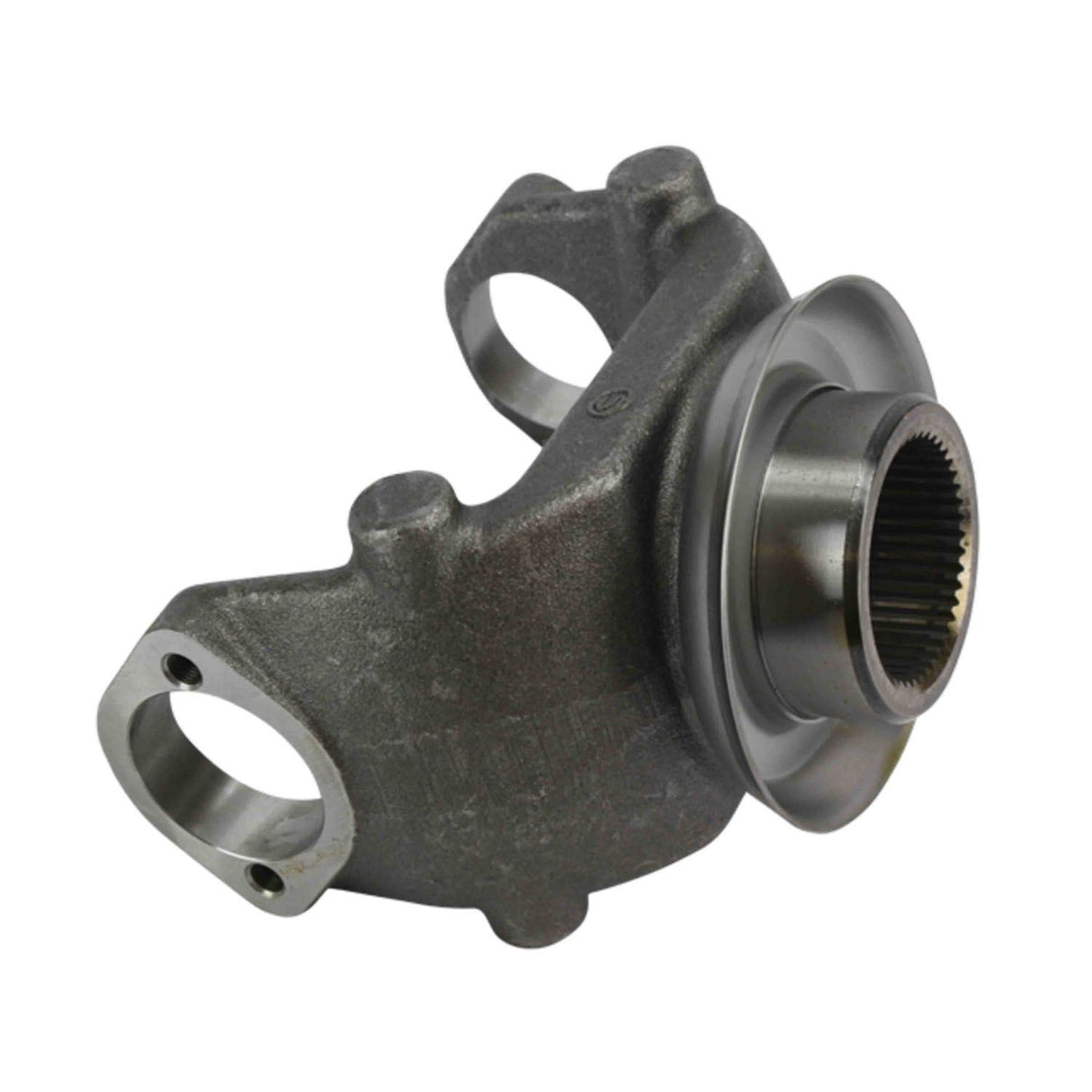

Full Round Style 1810 Series End Yoke 44 Spline | 126394, 127753, 1662-149-C, 18N4-3281X, 18NYS36-16A1, 586-549-C, 586-550-C, 6.5-4-3271, 6.5-4-3281R, 6.5-4-3281X, 6.5-4-4091X, 6.5-4-4321, N6.5-4-3281X, S-C503, SC503, SD-6.5-4-3281X
Regular price
$143.92
Unit price
/
Unavailable
Shipping calculated at checkout.
Full Round Style 1810 Series End Yoke 44 Spline | 126394, 127753, 1662-149-C, 18N4-3281X, 18NYS36-16A1, 586-549-C, 586-550-C, 6.5-4-3271, 6.5-4-3281R, 6.5-4-3281X, 6.5-4-4091X, 6.5-4-4321, N6.5-4-3281X, S-C503, SC503, SD-6.5-4-3281X is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Full Round Style 1810 Series End Yoke 44 Spline | 126394, 127753, 1...
Regular price
$143.92
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | Yes |
|---|---|
| Bearing Type | BP |
| Centerline To End | 5.25 |
| Centerline to End | 5.25 Inch |
| Dimensions | Spline Size: 2.274 - 44 Major Diameter: 2.274 Ground Hub Diameter: 2.938 Length Thru Hole: 2.500 Centerline To End: 5.250 Inch |
| Ground Hub Diameter | 2.938 Inch |
| Includes Slinger/Plug | Yes |
| Involute Spline | Yes |
| Length Thru Hole | 2.5 Inch |
| Length Thru Hole | 2.5 Inch |
| Major Diameter | 2.274 Inch |
| Material | Steel |
| Maximum Hub Diameter | 2.938 Inch |
| Outside Yoke Dimension | 7.643 Inch |
| Series | 1810 Series (Full Round) |
| Spline Diameter | 2.274 Inch |
| Spline Quantity | 44 |
| Spline Size | 2.274 - 44 Inch |
| Style | BP |
| Type | Splined Hole |
| Yoke Bearing Dimension | 1.938 Inch |
| Yoke Style | HR |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Eaton | 126394 |
| Eaton | 127753 |
| International | 1662-149-C |
| Meritor | 18N4-3281X |
| Meritor | 18NYS36-16A1 |
| International | 586-549-C |
| International | 586-550-C |
| Spicer | 6.5-4-3271 |
| World American | 6.5-4-3281R |
| Spicer | 6.5-4-3281X |
| Spicer | 6.5-4-4091X |
| Spicer | 6.5-4-4321 |
| Neapco OE Series | N6.5-4-3281X |
| Genuine Newstar | S-C503 |
| Genuine Newstar | SC503 |
| Genuine Newstar | SD-6.5-4-3281X |
