SKU:
GTP11704

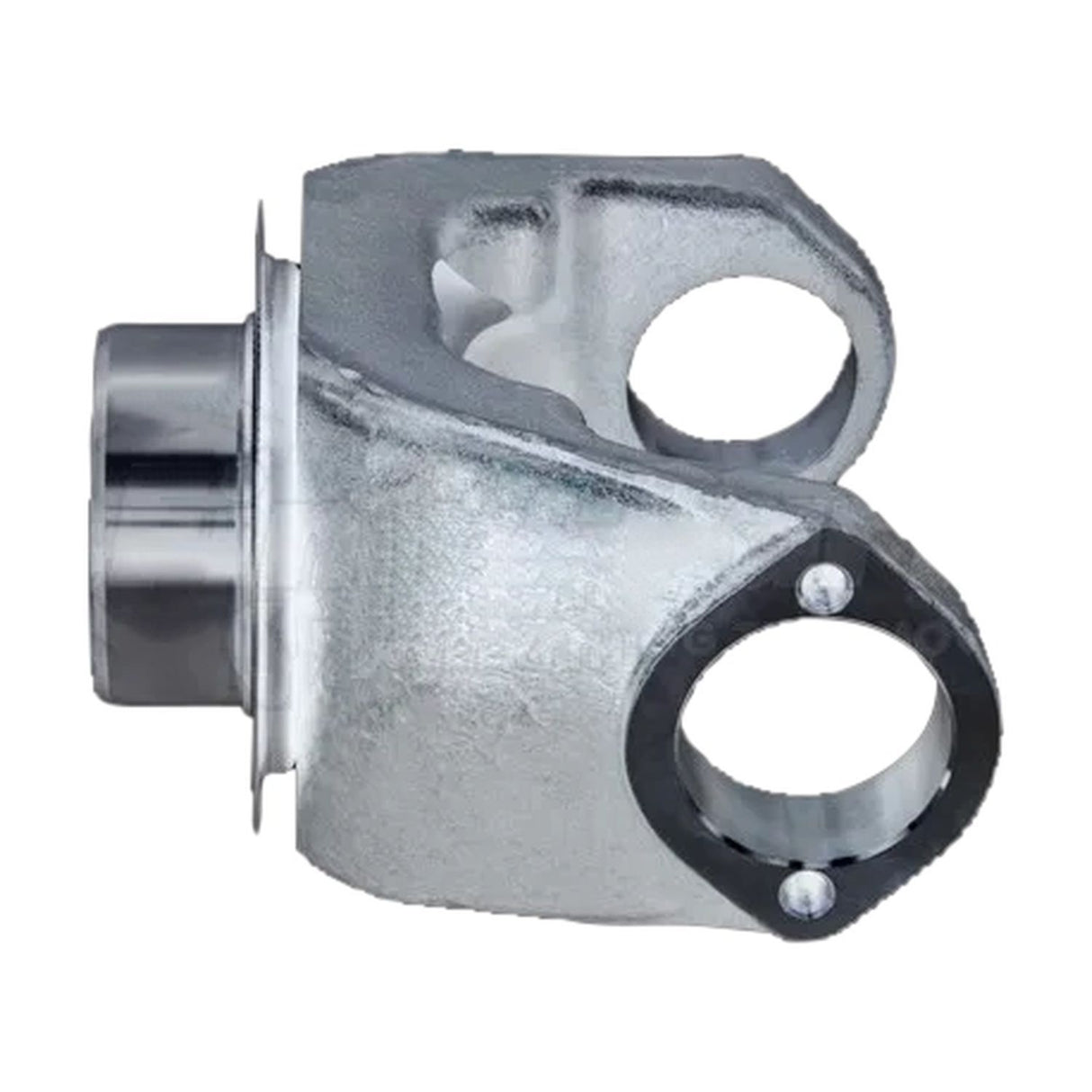

Full Round Style 1810 Series End Yoke 44 Spline | 6.5-4-4571, 6.5-4-4571XR, S-10007, S-27587, S10007, S27587, SD-6.5-4-4571
Regular price
$116.90
Unit price
/
Unavailable
Shipping calculated at checkout.
Full Round Style 1810 Series End Yoke 44 Spline | 6.5-4-4571, 6.5-4-4571XR, S-10007, S-27587, S10007, S27587, SD-6.5-4-4571 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Full Round Style 1810 Series End Yoke 44 Spline | 6.5-4-4571, 6.5-4...
Regular price
$116.90
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | Y |
|---|---|
| C'bore Depth | 0.236 Inch |
| C/l To End Hub S | 5.25 |
| Hub Diameter R | 3 Inch |
| Includes Slinger/plug | Y |
| Involute Spline | Y |
| Length Thru Hole | 2.5 Inch |
| Major Diameter | 2.274 Inch |
| Material | Steel |
| Outside Yoke Dimension E | 7.547 Inch |
| Series | 1810 Series (Full Round) |
| Series | 1810 |
| Spline Count | 44 |
| Type | Splined Hole |
| Yoke Bearing Dimension D | 1.938 Inch |
| Yoke Style | BP |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Spicer | 6.5-4-4571 |
| World American | 6.5-4-4571XR |
| Genuine Newstar | S-10007 |
| Genuine Newstar | S-27587 |
| Genuine Newstar | S10007 |
| Genuine Newstar | S27587 |
| Genuine Newstar | SD-6.5-4-4571 |
