SKU:
GTP06075

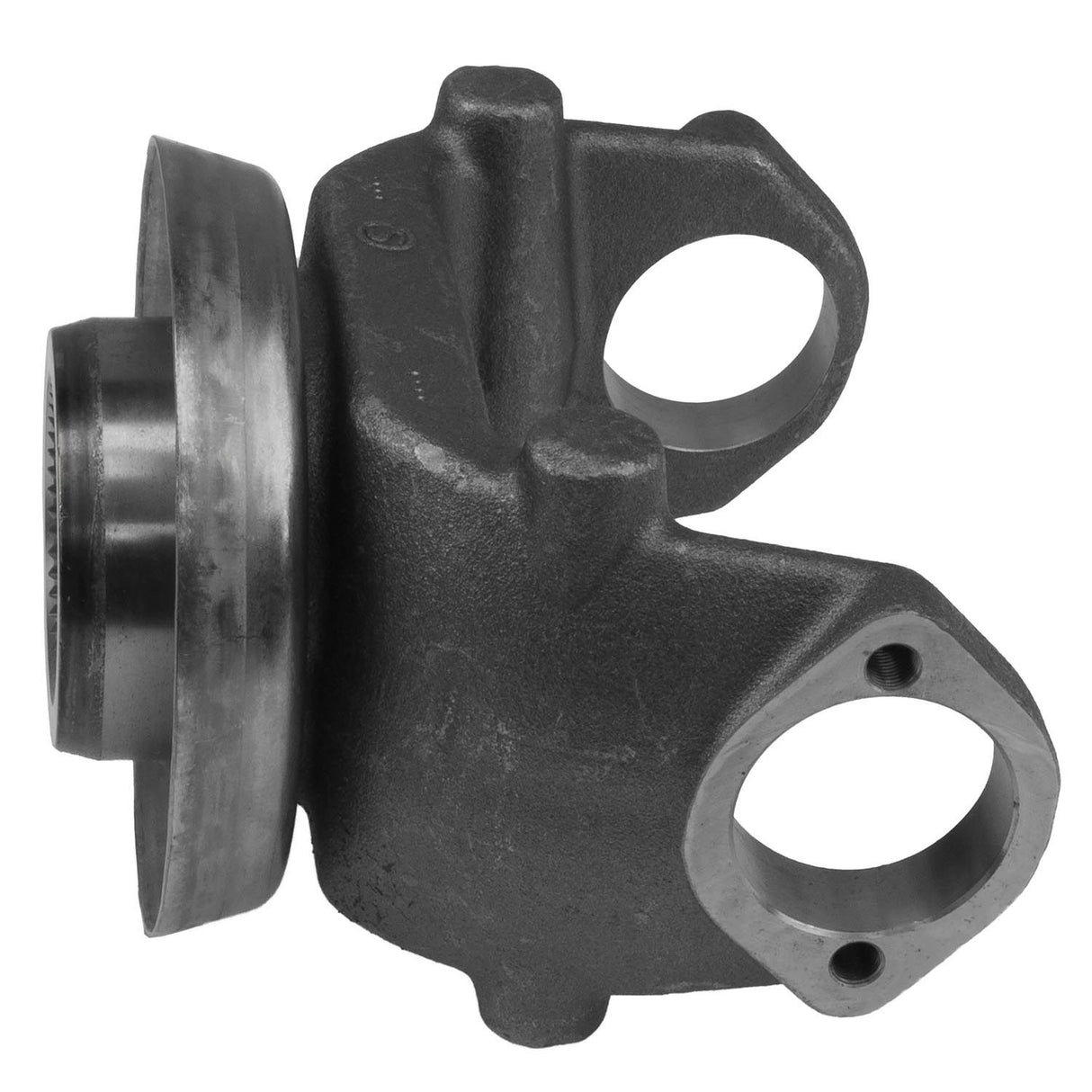

Full Round Style 1810 Series End Yoke 46 Spline | 016.5-4-2711X, 1662-145-C, 1662145C, 1662145C91, 18N4-2701, 18N4-2711X, 3280-Z-6734, 476-823-C, 6.5-4-2701, 6.5-4-2701R, 6.5-4-2711, 6.5-4-2711R, 6.5-4-2711X, 6542701R, A-3280-Z-6734, N6.5-4-2711X
Regular price
$119.26
Unit price
/
Unavailable
Shipping calculated at checkout.
Full Round Style 1810 Series End Yoke 46 Spline | 016.5-4-2711X, 1662-145-C, 1662145C, 1662145C91, 18N4-2701, 18N4-2711X, 3280-Z-6734, 476-823-C, 6.5-4-2701, 6.5-4-2701R, 6.5-4-2711, 6.5-4-2711R, 6.5-4-2711X, 6542701R, A-3280-Z-6734, N6.5-4-2711X is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Full Round Style 1810 Series End Yoke 46 Spline | 016.5-4-2711X, 16...
Regular price
$119.26
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Across Ears | 7.55 Inch |
|---|---|
| Assembly | Yes |
| Bearing Cap Diameter | 1.94 Inch |
| Bearing Type | BP |
| Centerline To End | 5.438 |
| Centerline to End | 5.438 Inch |
| Dimensions | Spline Size: 2.374 - 46 Major Diameter: 2.374 Ground Hub Diameter: 3.250 Length Thru Hole: 2.625 Centerline To End: 5.438 Inch |
| Ground Hub Diameter | 3.25 Inch |
| Ground Hub Diameter | 3.25 Inch |
| Includes Slinger/Plug | Yes |
| Involute Spline | No |
| Joint Angle | 32 Degrees |
| Length Thru Hole | 2.625 Inch |
| Length Thru Hole | 2.625 Inch |
| Major Diameter | 2.374 Inch |
| Material | Steel |
| Maximum Hub Diameter | 3.25 Inch |
| Outside Yoke Dimension | 7.643 Inch |
| Series | 1810 Series (Full Round) |
| Spline Diameter | 2.375 Inch |
| Spline Length | 2.62 Inch |
| Spline Quantity | 46 |
| Spline Size | 2.374 - 46 Inch |
| Style | BP |
| Type | Splined Hole |
| Universal Joint Series | 1810 |
| Yoke Bearing Dimension | 1.938 Inch |
| Yoke Style | HR |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Freightliner | 016.5-4-2711X |
| International | 1662-145-C |
| International | 1662145C |
| International | 1662145C91 |
| Meritor | 18N4-2701 |
| Meritor | 18N4-2711X |
| Meritor | 3280-Z-6734 |
| International | 476-823-C |
| Spicer | 6.5-4-2701 |
| World American | 6.5-4-2701R |
| Spicer | 6.5-4-2711 |
| World American | 6.5-4-2711R |
| Spicer | 6.5-4-2711X |
| World American | 6542701R |
| Meritor | A-3280-Z-6734 |
| Neapco OE Series | N6.5-4-2711X |
| International | NS3280Z6734 |
| Paccar Parts | PAC3280Z6734 |
| Spicer | PAC6.5-4-2711X |
| Paccar Parts | PACA3280Z6734 |
| Genuine Newstar | S-9035 |
| Genuine Newstar | S9035 |
| Genuine Newstar | SD-6.5-4-2711X |
| Freightliner | SP6542711 |
