SKU:
GTP06067

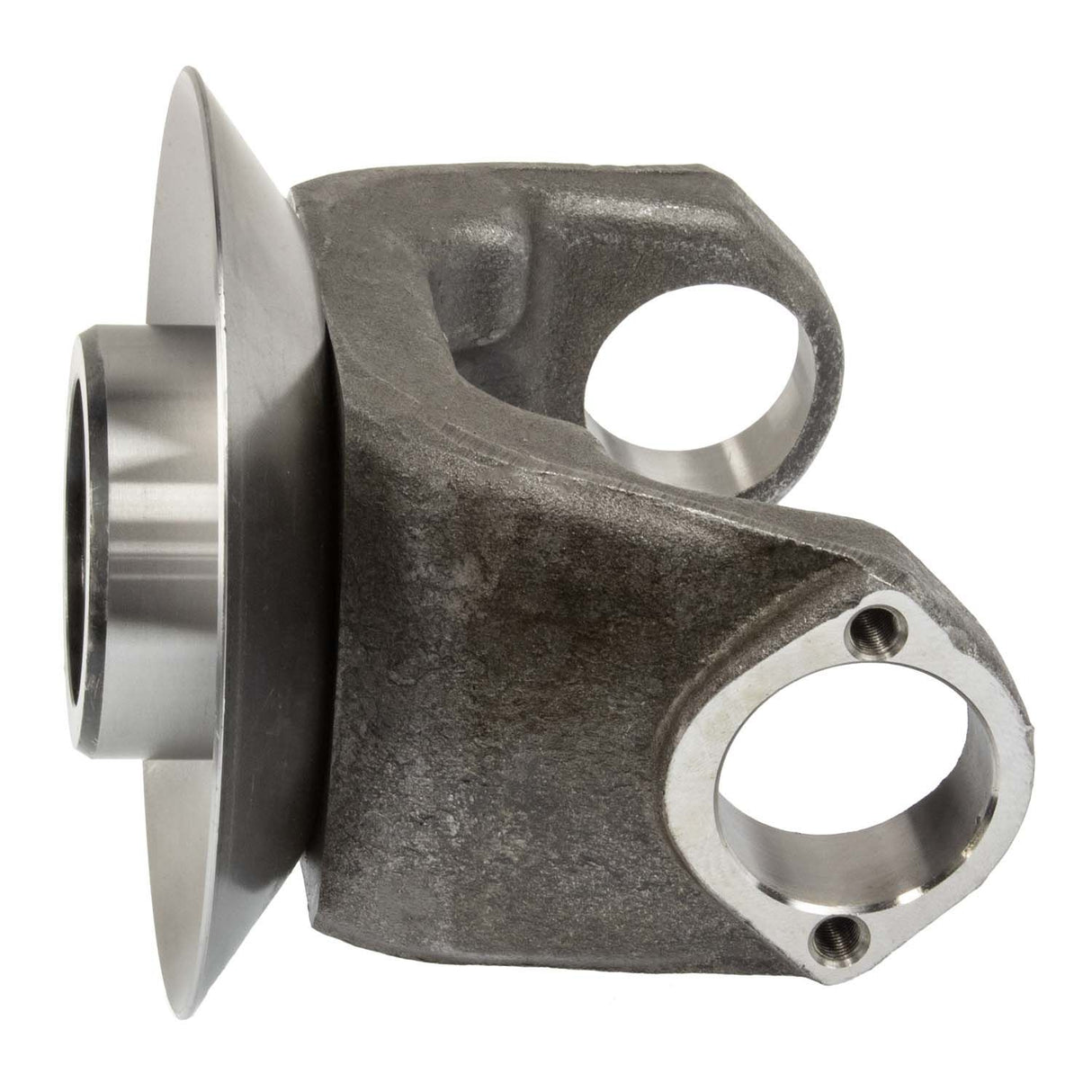

Full Round Style 1810 Series End Yoke 46 Spline | 181MU52P24, 18N 4 3731X, 18N4-3721, 18N4-3731X, 18NYS38 27A, 18NYS38-16A, 18NYS3827A, 2032-771-C, 2032771C, 2032771C91, 2104-6543731X, 25162862, 6.5-4-3721, 6.5-4-3721R, 6.5-4-3721X, 6.5-4-3731
Regular price
$144.12
Unit price
/
Unavailable
Shipping calculated at checkout.
Full Round Style 1810 Series End Yoke 46 Spline | 181MU52P24, 18N 4 3731X, 18N4-3721, 18N4-3731X, 18NYS38 27A, 18NYS38-16A, 18NYS3827A, 2032-771-C, 2032771C, 2032771C91, 2104-6543731X, 25162862, 6.5-4-3721, 6.5-4-3721R, 6.5-4-3721X, 6.5-4-3731 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Full Round Style 1810 Series End Yoke 46 Spline | 181MU52P24, 18N 4...
Regular price
$144.12
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Across Ears | 7.55 Inch |
|---|---|
| Assembly | Yes |
| Bearing Cap Diameter | 1.94 Inch |
| Bearing Type | BP |
| C'bore Depth | 0.14 Inch |
| C-Bore Depth | 0.14 Inch |
| Centerline to End | 5.156 Inch |
| Centerline To End | 5.156 |
| Dimensions | Spline Size: 2.390 - 46 Major Diameter: 2.390 Ground Hub Diameter: 3.250 Length Thru Hole: 2.312 Centerline To End: 5.156 CBore Depth: 0.140 Inch |
| Ground Hub Diameter | 3.25 Inch |
| Ground Hub Diameter | 3.25 Inch |
| Includes Slinger/Plug | Yes |
| Involute Spline | Yes |
| Joint Angle | 32 Degrees |
| Length Thru Hole | 2.312 Inch |
| Length Thru Hole | 2.312 Inch |
| Major Diameter | 2.39 Inch |
| Material | Steel |
| Maximum Hub Diameter | 3.25 Inch |
| Outside Yoke Dimension | 7.643 Inch |
| Series | 1810 Series (Full Round) |
| Spline Diameter | 2.375 Inch |
| Spline Length | 2.32 Inch |
| Spline Quantity | 46 |
| Spline Size | 2.390 - 46 Inch |
| Style | BP |
| Type | Splined Hole |
| Universal Joint Series | 1810 |
| Yoke Bearing Dimension | 1.938 Inch |
| Yoke Style | HR |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Mack | 181MU52P24 |
| Meritor | 18N 4 3731X |
| Meritor | 18N4-3721 |
| Meritor | 18N4-3731X |
| Meritor | 18NYS38 27A |
| Meritor | 18NYS38-16A |
| Meritor | 18NYS3827A |
| International | 2032-771-C |
| International | 2032771C |
| International | 2032771C91 |
| Mack | 2104-6543731X |
| Mack | 25162862 |
| Spicer | 6.5-4-3721 |
| World American | 6.5-4-3721R |
| Spicer | 6.5-4-3721X |
| Spicer | 6.5-4-3731 |
| World American | 6.5-4-3731R |
| Meritor | 6.5-4-3731X |
| Spicer | 6.5-4-3731XN |
| World American | 65437211R |
| World American | 6543721R |
| Prima Brands | 6543731X |
| Volvo Truck | 8179901 |
| Meritor | A-3260-C-1147 |
| Spicer | A6974 |
| Neapco OE Series | N6.5-4-3731X |
| Automann | NEPN6.5-4-3731X |
| Spicer | PAC6.5-4-3731X |
| Genuine Newstar | S-B621 |
| Genuine Newstar | SB621 |
| Genuine Newstar | SD-6.5-4-3731X |
| Freightliner | TDA 18N43731X |
