SKU: GTP11705

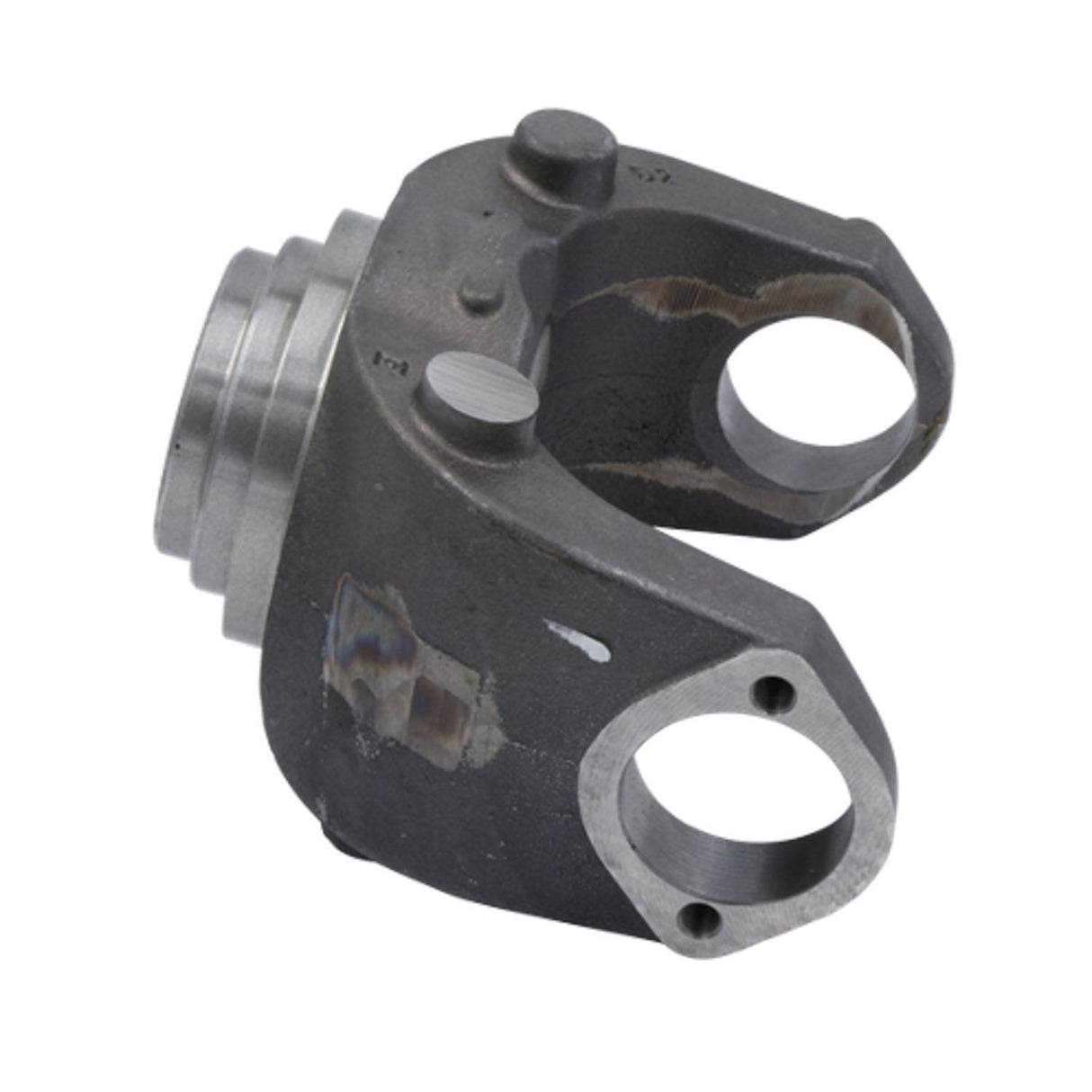

Full Round Style 1810 Series End Yoke 46 Spline | 18N4-3591, 18N43591, 6.5-4-3591, 6.5-4-3591X, N6.5-4-3591, S-17720, S-24954, S17720, S24954, SD-6.5-4-3591X, TDA 18N4 3591

Name: Full Round Style 1810 Series End Yoke 46 Spline | 18N4-3591, 18N43591, 6.5-4-3591, 6.5-4-3591X, N6.5-4-3591, S-17720, S-24954, S17720, S24954, SD-6.5-4-3591X, TDA 18N4 3591
Brand: Newstar
SKU: GTP11705
Price: 154.32 USD
Availability: InStock

$154.32

Shipping calculated at checkout.

If you need to order multiple parts, give us a call so our sales team can work to combine your order into fewer packages and save you money on shipping! 858-898-1558

Delivery and Shipping

This part typically ships within 1 to 2 business days.

This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.

Specifications

Assembly	No
Bearing Type	HR
Centerline To End	5.5
Centerline to End	5.5 Inch
Dimensions	Spline Size: 2.390 - 46 Major Diameter: 2.390 Ground Hub Diameter: 2.875 Length Thru Hole: 2.750 Centerline To End: 5.500 Inch
Ground Hub Diameter	2.875 Inch
Includes Slinger/Plug	No
Length Thru Hole	2.75 Inch
Length Thru Hole	2.75 Inch
Major Diameter	2.39 Inch
Material	Steel
Maximum Hub Diameter	2.875 Inch
Outside Yoke Dimension	7.643 Inch
Series	1810 Series (Full Round)
Spline Quantity	46
Spline Size	2.390 - 46 Inch
Style	HR
Type	Splined Hole
Yoke Bearing Dimension	1.938 Inch
Yoke Style	HR
Warranty Period	1 Year or 100,000 Miles

Interchange / Cross-Reference Numbers

Brand	Part Number
Meritor	18N4-3591
Spicer	18N43591
Spicer	6.5-4-3591
Spicer	6.5-4-3591X
Spicer	N6.5-4-3591
Genuine Newstar	S-17720
Genuine Newstar	S-24954
Genuine Newstar	S17720
Genuine Newstar	S24954
Genuine Newstar	SD-6.5-4-3591X
Freightliner	TDA 18N4 3591
