SKU:
GTP06063

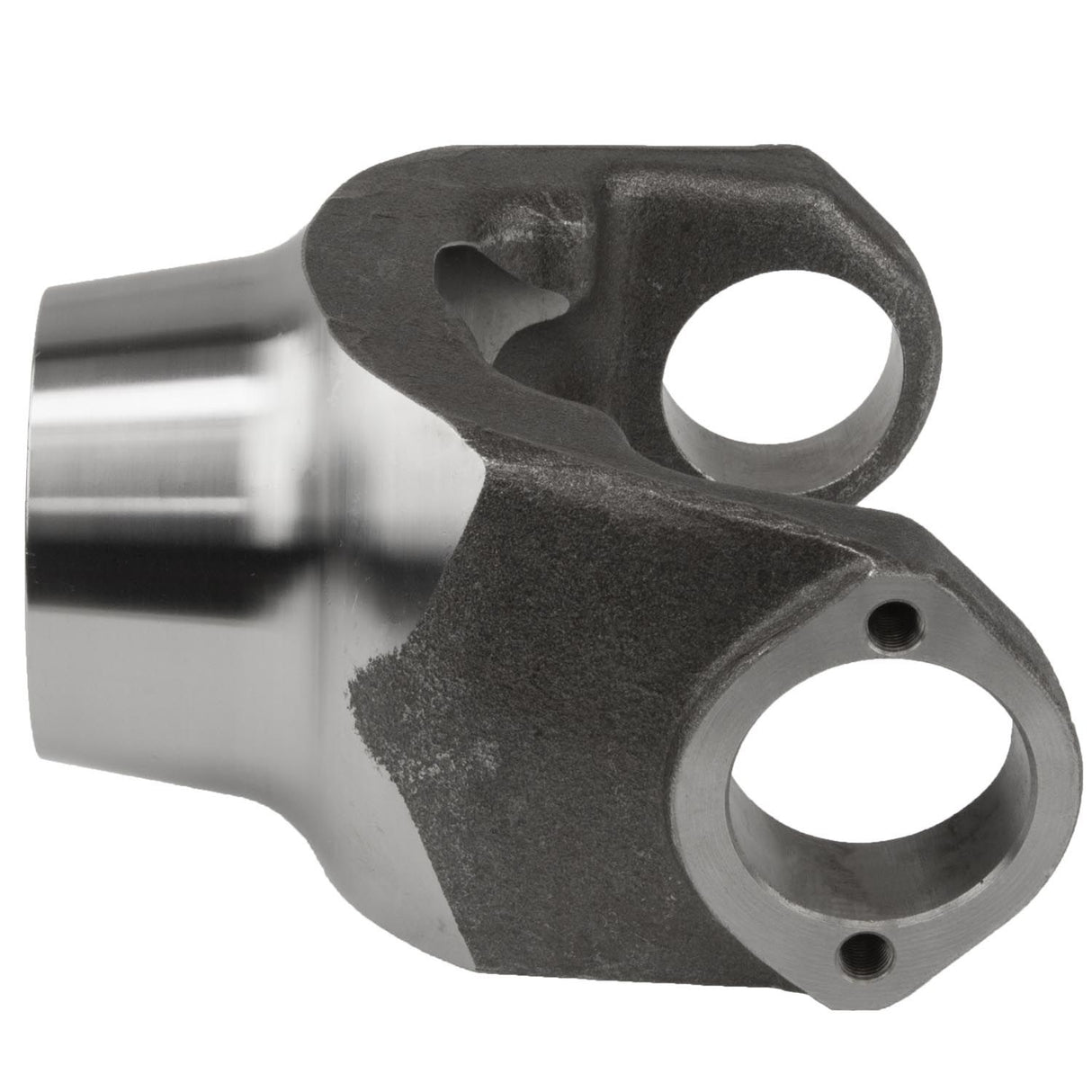

Full Round Style 1810 Series End Yoke 54 Spline | 016.5-4-4631, 181MU52P48, 18N-4-4631, 18NYS45, 2104-6544631, 3534225C, 3534225C1, 3971290, 5505548, 6.5-4-4631, 6544631, 7000205, FUL 5505548, N6.5-4-4631, NEPN6.5-4-4631, S-C631, SC631, SD-6.5-4-4631
Regular price
$134.09
Unit price
/
Unavailable
Shipping calculated at checkout.
Full Round Style 1810 Series End Yoke 54 Spline | 016.5-4-4631, 181MU52P48, 18N-4-4631, 18NYS45, 2104-6544631, 3534225C, 3534225C1, 3971290, 5505548, 6.5-4-4631, 6544631, 7000205, FUL 5505548, N6.5-4-4631, NEPN6.5-4-4631, S-C631, SC631, SD-6.5-4-4631 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Full Round Style 1810 Series End Yoke 54 Spline | 016.5-4-4631, 181...
Regular price
$134.09
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Across Ears | 7.643 Inch |
|---|---|
| Assembly | No |
| Bearing Cap Diameter | 1.938 Inch |
| Centerline to End | 5.625 Inch |
| Centerline To End | 5.625 |
| Dimensions | Spline Size: 2.794 - 54 Major Diameter: 2.794 Length Thru Hole: 2.750 Centerline To End: 5.625 Inch |
| Includes Slinger/Plug | No |
| Joint Angle | 30 Degrees |
| Length Thru Hole | 2.75 Inch |
| Length Thru Hole | 2.75 Inch |
| Major Diameter | 2.794 Inch |
| Material | Steel |
| Outside Yoke Dimension | 7.643 Inch |
| Schematic | FRF15210B |
| Schematic | FROF16210B |
| Schematic | FROF16210C |
| Series | 1810 Series (Full Round) |
| Spline Diameter | 2.794 Inch |
| Spline Length | 2.75 Inch |
| Spline Quantity | 54 |
| Spline Size | 2.794 - 54 Inch |
| Style | BP |
| Type | Splined Hole |
| Universal Joint Series | 1810 |
| Yoke Bearing Dimension | 1.938 Inch |
| Yoke Style | HR |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Freightliner | 016.5-4-4631 |
| Mack | 181MU52P48 |
| Meritor | 18N-4-4631 |
| Meritor | 18NYS45 |
| Mack | 2104-6544631 |
| International | 3534225C |
| International | 3534225C1 |
| Volvo Truck | 3971290 |
| Fuller- Transmissions | 5505548 |
| Spicer | 6.5-4-4631 |
| Prima Brands | 6544631 |
| OE Aftermarket | 7000205 |
| Freightliner | FUL 5505548 |
| Neapco OE Series | N6.5-4-4631 |
| Automann | NEPN6.5-4-4631 |
| Genuine Newstar | S-C631 |
| Genuine Newstar | SC631 |
| Genuine Newstar | SD-6.5-4-4631 |
