SKU:
GTP06113

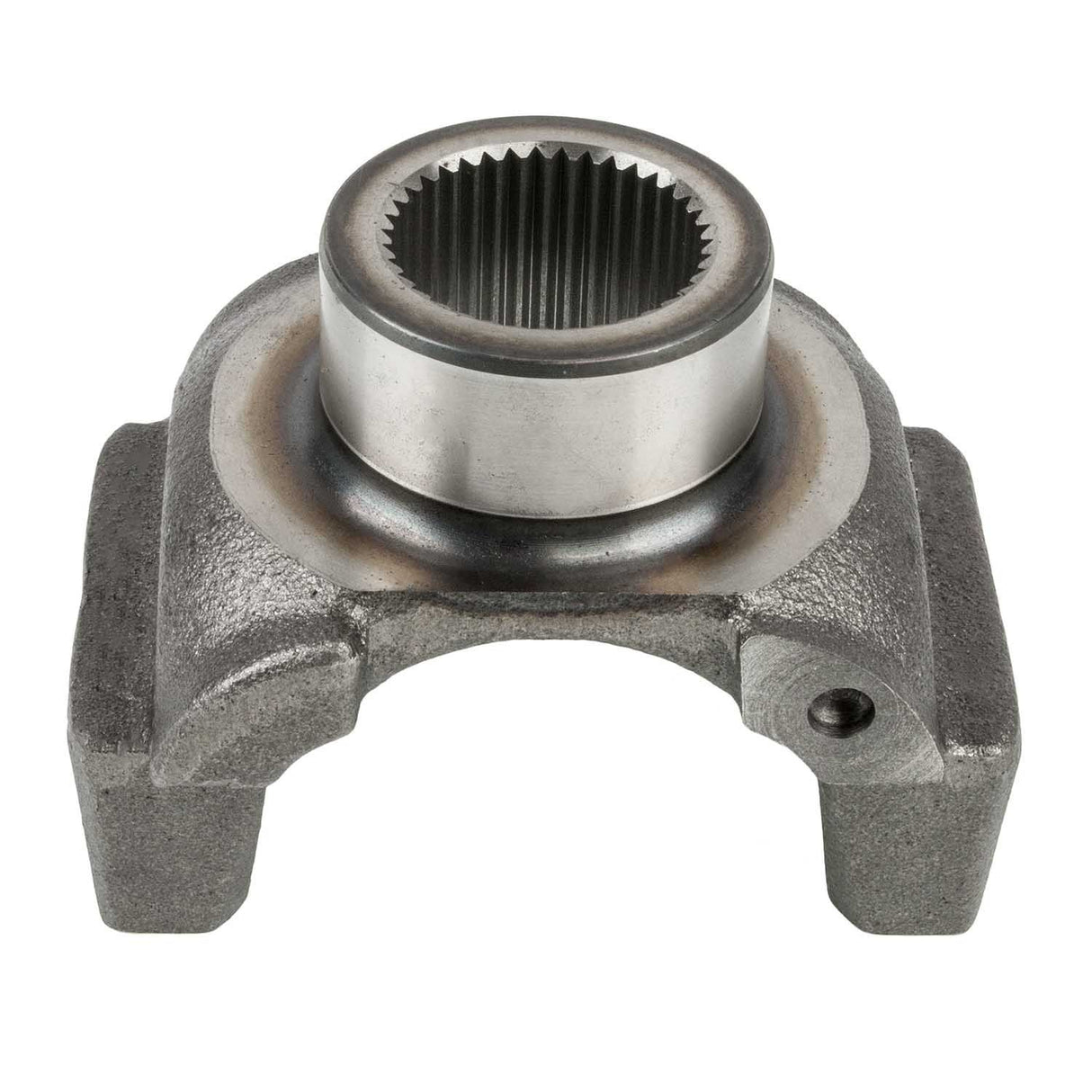

Half Round Style 1610 Series End Yoke 38 Spline | 15656429, 16N4-6321-1, 16N463211, 16TYS32-61, 5-4-6321-1, 5463211, S-F036, SD-5-4-6321-1, SD5463211, SF036, SP5463211
Regular price
$82.88
Unit price
/
Unavailable
Shipping calculated at checkout.
Half Round Style 1610 Series End Yoke 38 Spline | 15656429, 16N4-6321-1, 16N463211, 16TYS32-61, 5-4-6321-1, 5463211, S-F036, SD-5-4-6321-1, SD5463211, SF036, SP5463211 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Half Round Style 1610 Series End Yoke 38 Spline | 15656429, 16N4-63...
Regular price
$82.88
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | No |
|---|---|
| Bearing Type | HR |
| Centerline To End | 4 |
| Centerline to End | 4 Inch |
| Dimensions | Spline Size: 1.998 - 38 Major Diameter: 1.998 Ground Hub Diameter: 2.750 Length Thru Hole: 2.125 Centerline To End: 4.000 Inch |
| Ground Hub Diameter | 2.75 Inch |
| Hub Diameter | 2.75 Inch |
| Includes Slinger/Plug | No |
| Joint Angle | 19 Degrees |
| Joint Angle | 20.5 Degrees |
| Length Thru Hole | 2.125 Inch |
| Length Thru Hole | 2.125 Inch |
| Major Diameter | 1.998 Inch |
| Material | Steel |
| Maximum Hub Diameter | 2.75 Inch |
| Outside Yoke Dimension | 5.312 Inch |
| Series | 1610 Series (Half Round) |
| Spline Quantity | 38 |
| Spline Size | 1.998 - 38 Inch |
| Style | HR |
| Type | Splined Hole |
| U Joint Cap Diameter | 1.998 Inch |
| Yoke Bearing Dimension | 1.875 Inch |
| Yoke Style | HR |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| General Motors | 15656429 |
| Meritor | 16N4-6321-1 |
| Meritor | 16N463211 |
| Meritor | 16TYS32-61 |
| Spicer | 5-4-6321-1 |
| Prima Brands | 5463211 |
| Genuine Newstar | S-F036 |
| Genuine Newstar | SD-5-4-6321-1 |
| Spicer | SD5463211 |
| Genuine Newstar | SF036 |
| Freightliner | SP5463211 |
