Loading...
SKU:
GTP11761

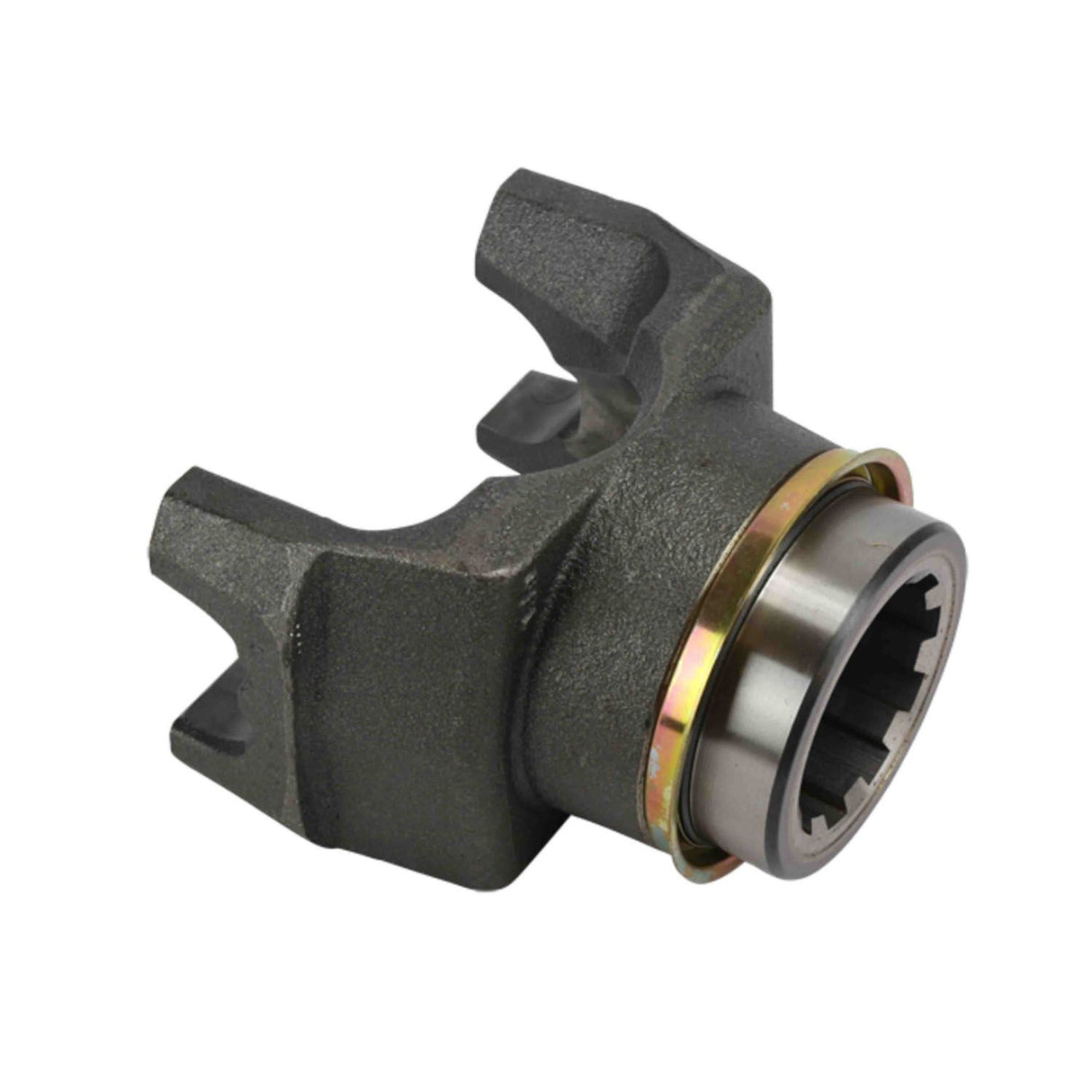

Half Round Style 1710 Series End Yoke 10 Spline | 1657-279-C, 1657279C91, 17N4-6931-1X, 6-4-6821-1, 6-4-6931-1, 6-4-6931-1R, 6-4-6931-1X, 6469311X, A-3260-P-1368, N6-4-6931-1X, S-B598, SB598, SD-6-4-6931-1X, SD6469311X
Regular price
$165.60
Unit price
/
Unavailable
Shipping calculated at checkout.
Half Round Style 1710 Series End Yoke 10 Spline | 1657-279-C, 1657279C91, 17N4-6931-1X, 6-4-6821-1, 6-4-6931-1, 6-4-6931-1R, 6-4-6931-1X, 6469311X, A-3260-P-1368, N6-4-6931-1X, S-B598, SB598, SD-6-4-6931-1X, SD6469311X is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Half Round Style 1710 Series End Yoke 10 Spline | 1657-279-C, 16572...
Regular price
$165.60
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | Yes |
|---|---|
| Bearing Type | HR |
| Centerline To End | 5.75 |
| Centerline to End | 5.75 Inch |
| Dimensions | Spline Size: 2.750 - 10 Major Diameter: 2.750 Ground Hub Diameter: 3.750 Length Thru Hole: 3.000 Centerline To End: 5.750 Inch |
| Ground Hub Diameter | 3.75 Inch |
| Hub Diameter | 3.75 Inch |
| Includes Slinger/Plug | Yes |
| Involute Spline | No |
| Joint Angle | 20.5 Degrees |
| Joint Angle | 34 Degrees |
| Length Thru Hole | 3 Inch |
| Length Thru Hole | 3 Inch |
| Major Diameter | 2.75 Inch |
| Material | Steel |
| Maximum Hub Diameter | 3.75 Inch |
| Outside Yoke Dimension | 6.19 Inch |
| Series | 1710 Series (Half Round) |
| Spline Quantity | 10 |
| Spline Size | 2.750 - 10 Inch |
| Style | HR |
| Type | Splined Hole |
| Yoke Bearing Dimension | 1.938 Inch |
| Yoke Style | HR |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| International | 1657-279-C |
| International | 1657279C91 |
| Meritor | 17N4-6931-1X |
| Spicer | 6-4-6821-1 |
| Spicer | 6-4-6931-1 |
| World American | 6-4-6931-1R |
| Spicer | 6-4-6931-1X |
| Prima Brands | 6469311X |
| Meritor | A-3260-P-1368 |
| Neapco OE Series | N6-4-6931-1X |
| Genuine Newstar | S-B598 |
| Genuine Newstar | SB598 |
| Genuine Newstar | SD-6-4-6931-1X |
| Spicer | SD6469311X |
