SKU:
GTP11729

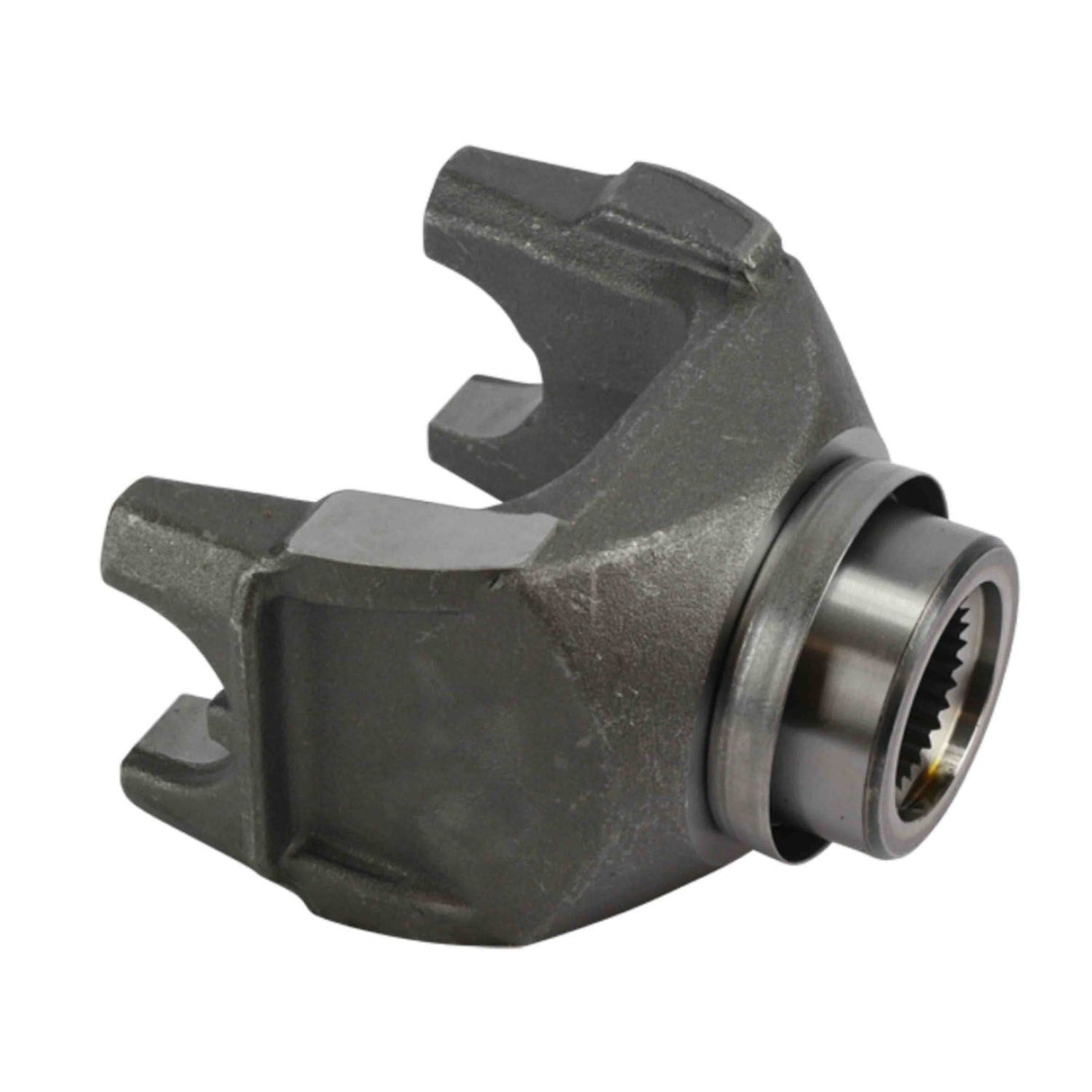

Half Round Style 1710 Series End Yoke 30 Spline | 1689-535-C, 6-4-8731-1R, 6-4-8731-1X, 6-4-8741-1X, S-10011, S10011, SD-6-4-8731-1X, SD6487311X
Regular price
$151.90
Unit price
/
Unavailable
Shipping calculated at checkout.
Half Round Style 1710 Series End Yoke 30 Spline | 1689-535-C, 6-4-8731-1R, 6-4-8731-1X, 6-4-8741-1X, S-10011, S10011, SD-6-4-8731-1X, SD6487311X is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Half Round Style 1710 Series End Yoke 30 Spline | 1689-535-C, 6-4-8...
Regular price
$151.90
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | Yes |
|---|---|
| Bearing Type | HR |
| C'bore Depth | 0.22 Inch |
| C-Bore Depth | 0.22 Inch |
| Centerline to End | 6.281 Inch |
| Centerline To End | 6.281 |
| Dimensions | Spline Size: 1.989 - 30 Major Diameter: 1.989 Ground Hub Diameter: 3.000 Length Thru Hole: 2.703 Centerline To End: 6.281 CBore Depth: 0.220 Inch |
| Ground Hub Diameter | 3 Inch |
| Includes Slinger/Plug | Yes |
| Involute Spline | Yes |
| Length Thru Hole | 2.703 Inch |
| Length Thru Hole | 2.703 Inch |
| Major Diameter | 1.989 Inch |
| Material | Steel |
| Maximum Hub Diameter | 3 Inch |
| Outside Yoke Dimension | 6.19 Inch |
| Series | 1710 Series (Half Round) |
| Spline Quantity | 30 |
| Spline Size | 1.989 - 30 Inch |
| Style | HR |
| Type | Splined Hole |
| Yoke Bearing Dimension | 1.938 Inch |
| Yoke Style | HR |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| International | 1689-535-C |
| World American | 6-4-8731-1R |
| Spicer | 6-4-8731-1X |
| Spicer | 6-4-8741-1X |
| Genuine Newstar | S-10011 |
| Genuine Newstar | S10011 |
| Genuine Newstar | SD-6-4-8731-1X |
| Spicer | SD6487311X |
