SKU:
GTP06012

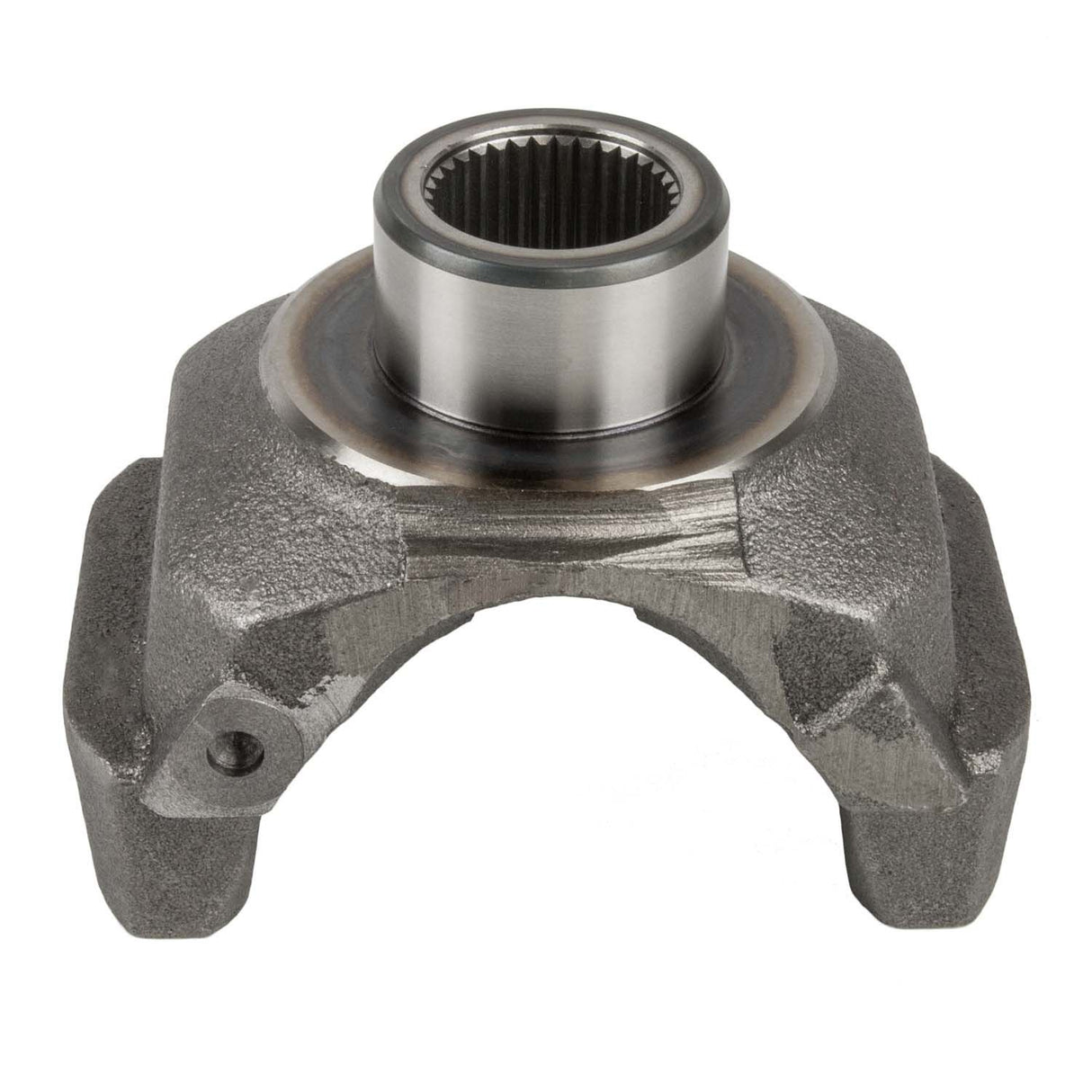

Half Round Style 1710 Series End Yoke 34 Spline | 2009-476-C, 2009476C, 2009476C1, 6-4-9021-1, S-F123, SD-6-4-9021-1, SD6490211, SF123, SP6490211
Regular price
$106.62
Unit price
/
Unavailable
Shipping calculated at checkout.
Half Round Style 1710 Series End Yoke 34 Spline | 2009-476-C, 2009476C, 2009476C1, 6-4-9021-1, S-F123, SD-6-4-9021-1, SD6490211, SF123, SP6490211 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Half Round Style 1710 Series End Yoke 34 Spline | 2009-476-C, 20094...
Regular price
$106.62
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | No |
|---|---|
| Bearing Type | HR |
| C'bore Depth | 0.09 Inch |
| C-Bore Diameter | 1.795 Inch |
| Centerline To End | 4.875 |
| Centerline to End | 4.875 Inch |
| Dimensions | Spline Size: 1.790 - 34 Major Diameter: 1.790 Ground Hub Diameter: 2.500 Length Thru Hole: 2.250 Centerline To End: 4.875 CBore Depth: 0.090 Inch |
| Ground Hub Diameter | 2.5 Inch |
| Includes Slinger/Plug | No |
| Joint Angle | 28 Degrees |
| Length Thru Hole | 2.25 Inch |
| Length Thru Hole | 2.25 Inch |
| Major Diameter | 1.79 Inch |
| Material | Steel |
| Maximum Hub Diameter | 2.5 Inch |
| Outside Yoke Dimension | 6.19 Inch |
| Series | 1710 Series (Half Round) |
| Spline Quantity | 34 |
| Spline Size | 1.790 - 34 Inch |
| Style | HR |
| Type | Splined Hole |
| U Joint Cap Diameter | 1.79 Inch |
| Yoke Bearing Dimension | 1.938 Inch |
| Yoke Style | HR |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| International | 2009-476-C |
| International | 2009476C |
| International | 2009476C1 |
| Spicer | 6-4-9021-1 |
| Genuine Newstar | S-F123 |
| Genuine Newstar | SD-6-4-9021-1 |
| Spicer | SD6490211 |
| Genuine Newstar | SF123 |
| Freightliner | SP6490211 |
