SKU:
GTP06022

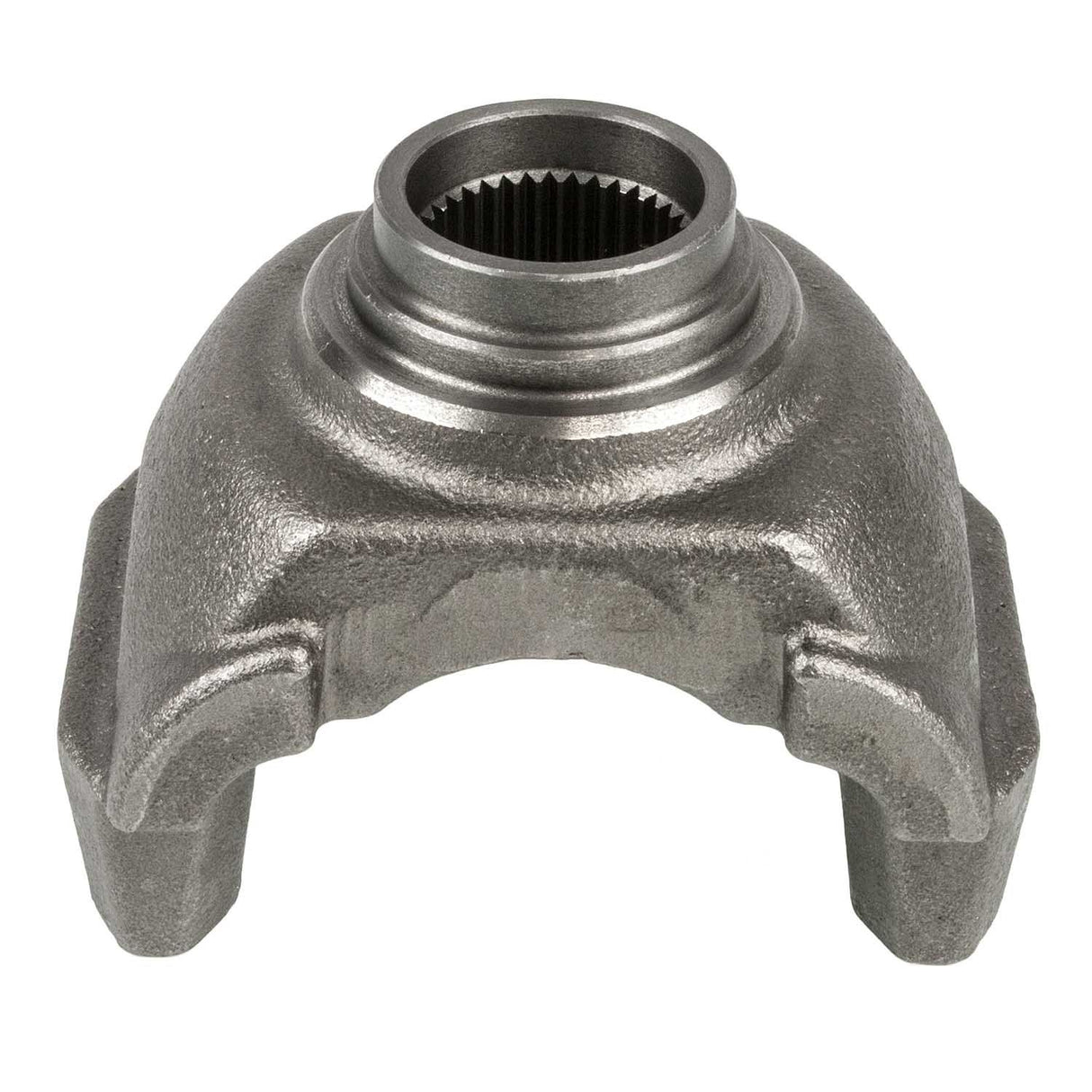

Half Round Style 1710 Series End Yoke 38 Spline | 15633775, 17N4-7141-1, 2104-6471411, 6-4-7141-1, 6-4-7141-1X, 6-4-7141X, N6-4-7141-1, NEPN6-4-7141-1, S-F339, SD-6-4-7141-1, SD6471411, SF339, SP6471411, TDA 17N4 7141 1
Regular price
$116.64
Unit price
/
Unavailable
Shipping calculated at checkout.
Half Round Style 1710 Series End Yoke 38 Spline | 15633775, 17N4-7141-1, 2104-6471411, 6-4-7141-1, 6-4-7141-1X, 6-4-7141X, N6-4-7141-1, NEPN6-4-7141-1, S-F339, SD-6-4-7141-1, SD6471411, SF339, SP6471411, TDA 17N4 7141 1 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Half Round Style 1710 Series End Yoke 38 Spline | 15633775, 17N4-71...
Regular price
$116.64
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | No |
|---|---|
| Bearing Type | HR |
| C'bore Depth | 0.5 Inch |
| Centerline To End | 5 |
| Centerline to End | 5 Inch |
| Dimensions | Spline Size: 1.998 - 38 Major Diameter: 1.998 Ground Hub Diameter: 2.810 Length Thru Hole: 3.000 Centerline To End: 5.000 CBore Depth: 0.500 Inch |
| Ground Hub Diameter | 2.81 Inch |
| Includes Slinger/Plug | No |
| Joint Angle | 25 Degrees |
| Length Thru Hole | 3 Inch |
| Length Thru Hole | 3 Inch |
| Major Diameter | 1.998 Inch |
| Material | Steel |
| Maximum Hub Diameter | 2.81 Inch |
| Outside Yoke Dimension | 6.19 Inch |
| Series | 1710 Series (Half Round) |
| Spline Quantity | 38 |
| Spline Size | 1.998 - 38 Inch |
| Style | HR |
| Type | Splined Hole |
| U Joint Cap Diameter | 1.998 Inch |
| Yoke Bearing Dimension | 1.938 Inch |
| Yoke Style | HR |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| General Motors | 15633775 |
| Meritor | 17N4-7141-1 |
| Mack | 2104-6471411 |
| Spicer | 6-4-7141-1 |
| Spicer | 6-4-7141-1X |
| Spicer | 6-4-7141X |
| Neapco OE Series | N6-4-7141-1 |
| Automann | NEPN6-4-7141-1 |
| Genuine Newstar | S-F339 |
| Genuine Newstar | SD-6-4-7141-1 |
| Spicer | SD6471411 |
| Genuine Newstar | SF339 |
| Freightliner | SP6471411 |
| Freightliner | TDA 17N4 7141 1 |
