SKU:
GTP11843

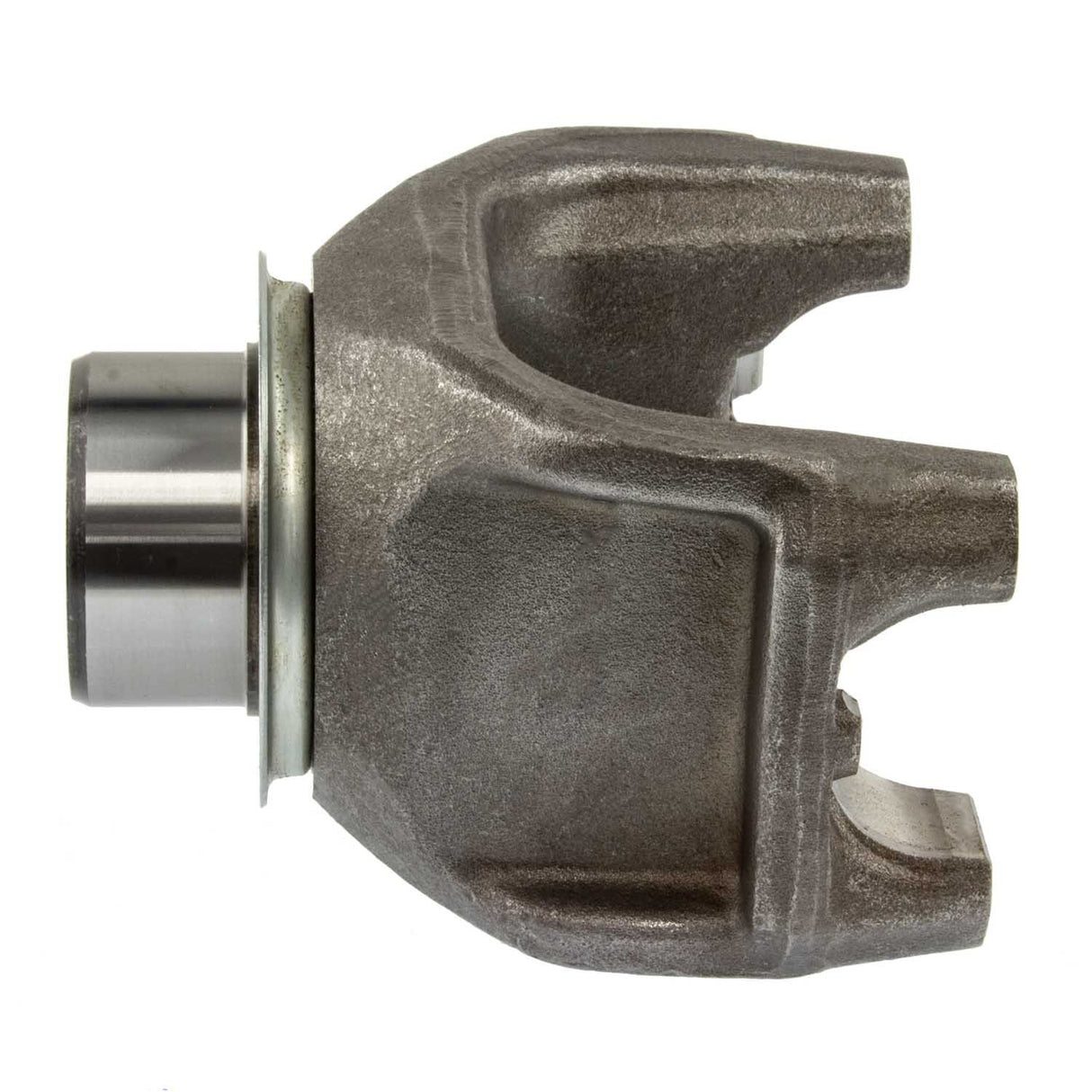

Half Round Style 1710 Series End Yoke 39 Spline | 128722, 15708546, 17N-4-9001-1X, 17N490011X, 17TYS32-91A, 6-4-8431-1R, 6490011X, 8026372, N6-4-9001-1X, NEPN6-4-9001-1X, S-F411, SD-6-4-9001-1X, SD6490011X, SF411
Regular price
$204.96
Unit price
/
Unavailable
Shipping calculated at checkout.
Half Round Style 1710 Series End Yoke 39 Spline | 128722, 15708546, 17N-4-9001-1X, 17N490011X, 17TYS32-91A, 6-4-8431-1R, 6490011X, 8026372, N6-4-9001-1X, NEPN6-4-9001-1X, S-F411, SD-6-4-9001-1X, SD6490011X, SF411 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Half Round Style 1710 Series End Yoke 39 Spline | 128722, 15708546,...
Regular price
$204.96
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | Yes |
|---|---|
| Bearing Type | HR |
| C'bore Depth | 0.25 Inch |
| C-Bore Diameter | 2.047 Inch |
| Centerline To End | 6.125 |
| Centerline to End | 6.125 Inch |
| Dimensions | Spline Shaft: 2.024 - 39 Major Diameter: 2.024 Ground Hub Diameter: 2.625 Length Thru Hole: 2.500 Centerline To End: 6.125 CBore Depth: 0.250 Inch |
| Ground Hub Diameter | 2.625 Inch |
| Includes Slinger/Plug | Yes |
| Length Thru Hole | 2.5 Inch |
| Length Thru Hole | 2.5 Inch |
| Major Diameter | 2.024 Inch |
| Material | Steel |
| Maximum Hub Diameter | 2.625 Inch |
| Outside Yoke Dimension | 6.19 Inch |
| Series | 1710 Series (Half Round) |
| Spline Quantity | 39 |
| Spline Shaft | 2.024 - 39 |
| Spline Size | 2.024 - 39 Inch |
| Style | HR |
| Type | Splined Hole |
| U Joint Cap Diameter | 2.024 Inch |
| Yoke Bearing Dimension | 1.938 Inch |
| Yoke Style | HR |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Eaton | 128722 |
| GMC | 15708546 |
| Meritor | 17N-4-9001-1X |
| Meritor | 17N490011X |
| Meritor | 17TYS32-91A |
| World American | 6-4-8431-1R |
| Saginaw | 6490011X |
| Volvo Truck | 8026372 |
| Spicer | N6-4-9001-1X |
| Automann | NEPN6-4-9001-1X |
| Genuine Newstar | S-F411 |
| Genuine Newstar | SD-6-4-9001-1X |
| Spicer | SD6490011X |
| Genuine Newstar | SF411 |
