SKU:
GTP06013

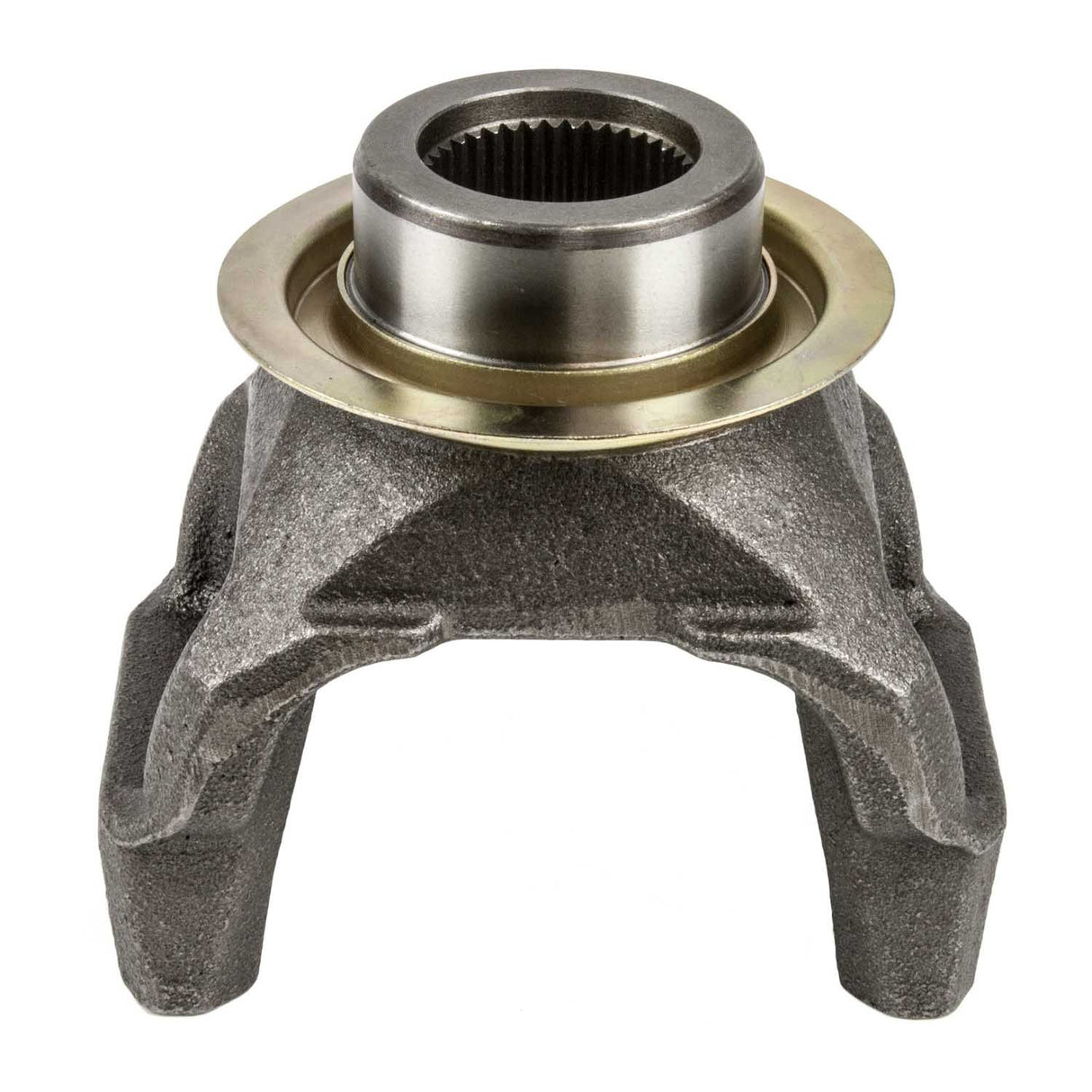

Half Round Style 1710 Series End Yoke 39 Spline | 128746, 17N4-8991-1X, 6-4-8411-1, 6-4-8411-1R, 6-4-8991-1, 6-4-8991-1R, 6-4-8991-1X, 6-4-8991-1XN, 6484111R, 8026374, N6-4-8991-1X, NEPN6-4-8991-1X, S-F412, SD-6-4-8991-1X, SD6489911X, SF412
Regular price
$119.37
Unit price
/
Unavailable
Shipping calculated at checkout.
Half Round Style 1710 Series End Yoke 39 Spline | 128746, 17N4-8991-1X, 6-4-8411-1, 6-4-8411-1R, 6-4-8991-1, 6-4-8991-1R, 6-4-8991-1X, 6-4-8991-1XN, 6484111R, 8026374, N6-4-8991-1X, NEPN6-4-8991-1X, S-F412, SD-6-4-8991-1X, SD6489911X, SF412 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Half Round Style 1710 Series End Yoke 39 Spline | 128746, 17N4-8991...
Regular price
$119.37
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | Yes |
|---|---|
| Bearing Type | HR |
| C'bore Depth | 0.25 Inch |
| C-Bore Depth | 0.25 Inch |
| Centerline to End | 6.125 Inch |
| Centerline To End | 6.125 |
| Dimensions | Spline Size: 2.024 - 39 Major Diameter: 2.024 Ground Hub Diameter: 3.000 Length Thru Hole: 2.281 Centerline To End: 6.125 CBore Depth: 0.250 Inch |
| Ground Hub Diameter | 3 Inch |
| Includes Slinger/Plug | Yes |
| Involute Spline | Yes |
| Length Thru Hole | 2.281 Inch |
| Length Thru Hole | 2.281 Inch |
| Major Diameter | 2.024 Inch |
| Material | Steel |
| Maximum Hub Diameter | 3 Inch |
| Outside Yoke Dimension | 6.19 Inch |
| Series | 1710 Series (Half Round) |
| Spline Quantity | 39 |
| Spline Size | 2.024 - 39 Inch |
| Style | HR |
| Type | Splined Hole |
| U Joint Cap Diameter | 2.024 Inch |
| Yoke Bearing Dimension | 1.938 Inch |
| Yoke Style | HR |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Eaton | 128746 |
| Meritor | 17N4-8991-1X |
| Spicer | 6-4-8411-1 |
| World American | 6-4-8411-1R |
| Spicer | 6-4-8991-1 |
| World American | 6-4-8991-1R |
| Spicer | 6-4-8991-1X |
| Spicer | 6-4-8991-1XN |
| World American | 6484111R |
| World American | |
| Volvo Truck | 8026374 |
| Spicer | N6-4-8991-1X |
| Automann | NEPN6-4-8991-1X |
| Genuine Newstar | S-F412 |
| Genuine Newstar | SD-6-4-8991-1X |
| Spicer | SD6489911X |
| Genuine Newstar | SF412 |
