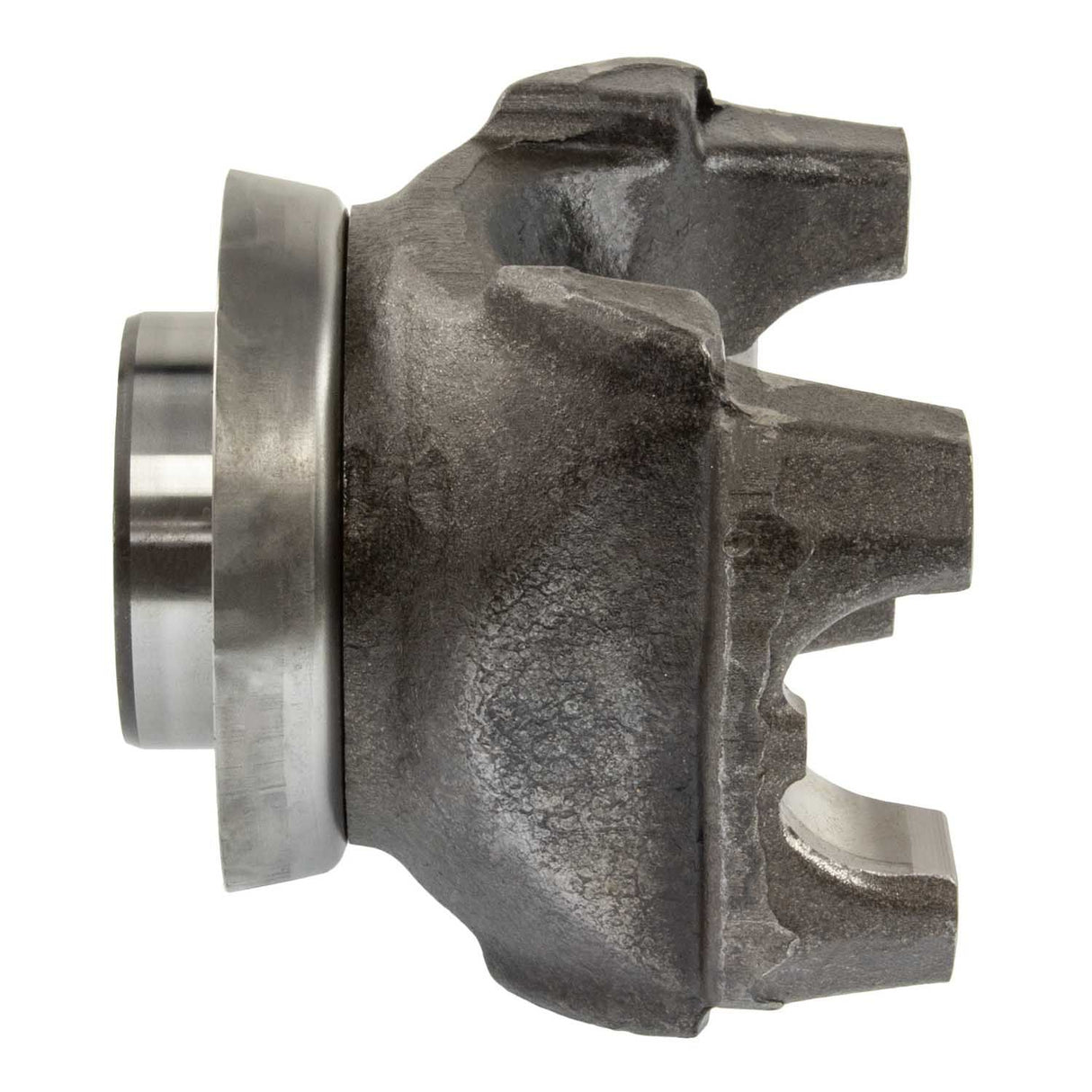

Half Round Style 1710 Series End Yoke 39 Spline | 15656441, 1657-348-C, 1657348C91, 1657348C92, 17N4-7631-1X, 17N476311X, 6-4-6411-1X, 6-4-7621-1X, 6-4-7631-1R, 6-4-7631-1X, 6-4-7641-1X, 6-4-8601-1X, 6476311X, A-3260-R-1292, N6-4-7631-1X, NEPN6-4-7631-1X
Regular price
$129.72
Unit price
/
Unavailable
Shipping calculated at checkout.
Half Round Style 1710 Series End Yoke 39 Spline | 15656441, 1657-348-C, 1657348C91, 1657348C92, 17N4-7631-1X, 17N476311X, 6-4-6411-1X, 6-4-7621-1X, 6-4-7631-1R, 6-4-7631-1X, 6-4-7641-1X, 6-4-8601-1X, 6476311X, A-3260-R-1292, N6-4-7631-1X, NEPN6-4-7631-1X is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Half Round Style 1710 Series End Yoke 39 Spline | 15656441, 1657-34...
Regular price
$129.72
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | Yes |
|---|---|
| Bearing Type | HR |
| C'bore Depth | 0.09 Inch |
| Centerline To End | 5.156 |
| Centerline to End | 5.156 Inch |
| Dimensions | Spline Size: 2.024 - 39 Major Diameter: 2.024 Ground Hub Diameter: 3.000 Length Thru Hole: 2.312 Centerline To End: 5.156 CBore Depth: 0.090 Inch |
| Ground Hub Diameter | 3 Inch |
| Includes Slinger/Plug | Yes |
| Involute Spline | No |
| Length Thru Hole | 2.312 Inch |
| Length Thru Hole | 2.312 Inch |
| Major Diameter | 2.024 Inch |
| Material | Steel |
| Maximum Hub Diameter | 3 Inch |
| Outside Yoke Dimension | 6.19 Inch |
| Series | 1710 Series (Half Round) |
| Spline Quantity | 39 |
| Spline Size | 2.024 - 39 Inch |
| Style | HR |
| Type | Splined Hole |
| Yoke Bearing Dimension | 1.938 Inch |
| Yoke Style | HR |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| GMC | 15656441 |
| International | 1657-348-C |
| International | 1657348C91 |
| International | 1657348C92 |
| Meritor | 17N4-7631-1X |
| Meritor | 17N476311X |
| Spicer | 6-4-6411-1X |
| Spicer | 6-4-7621-1X |
| World American | 6-4-7631-1R |
| Spicer | 6-4-7631-1X |
| Spicer | 6-4-7641-1X |
| Spicer | 6-4-8601-1X |
| Prima Brands | 6476311X |
| Meritor | A-3260-R-1292 |
| Neapco OE Series | N6-4-7631-1X |
| Automann | NEPN6-4-7631-1X |
| Genuine Newstar | S-B058 |
| Genuine Newstar | SB058 |
| Genuine Newstar | SD-6-4-7631-1X |
| Spicer | SD6476311X |
| Freightliner | TDA 17N4 7631 1X |
