SKU:
GTP06030

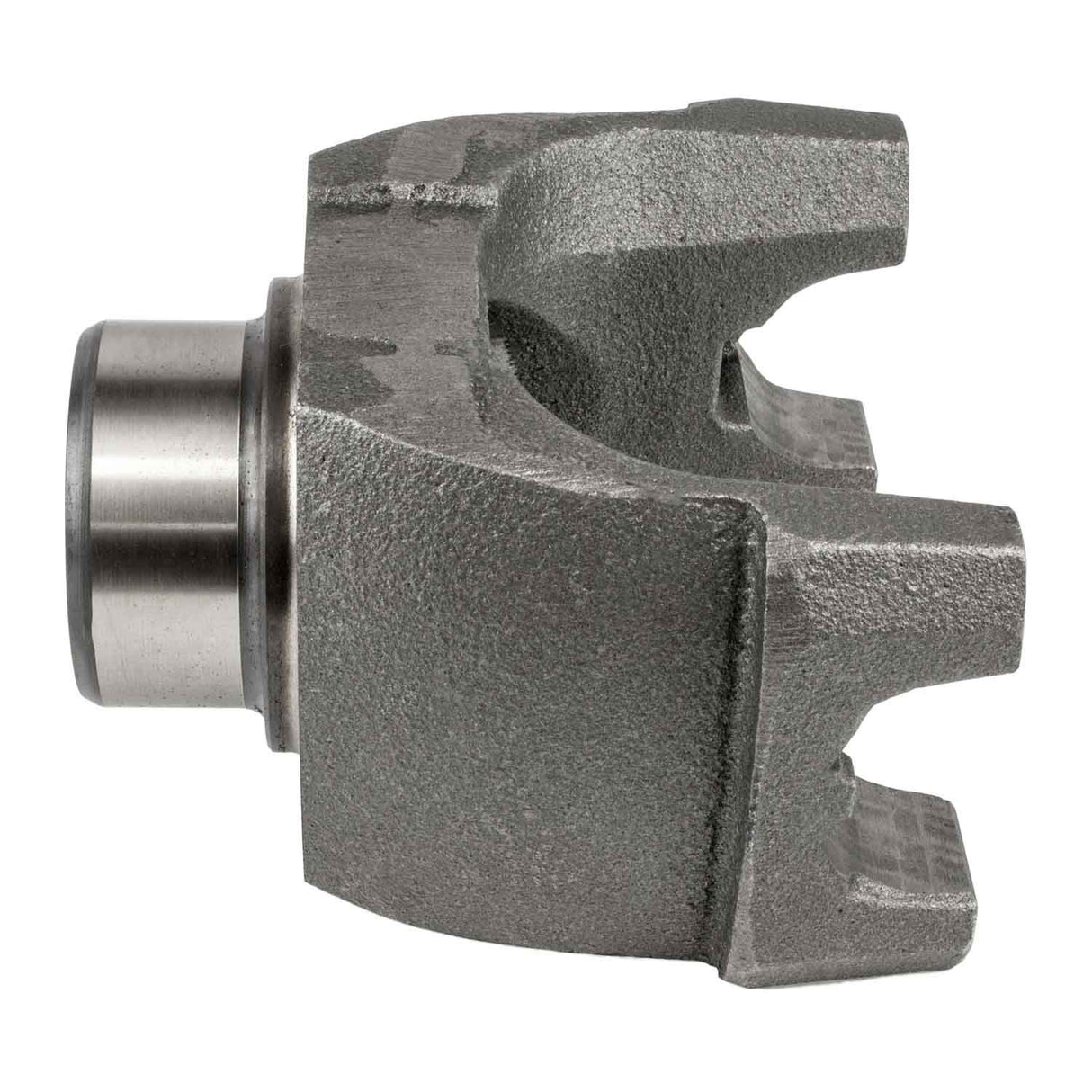

Half Round Style 1710 Series End Yoke 39 Spline | 17N 4 6391 1X, 17N4-6391-1X, 17TYS32 99A, 17TYS32-95A, 17TYS32-99, 17TYS3299A, 2013-006-C, 2013-007-C, 2013007C, 2013007C91, 6-4-6371-1, 6-4-6371-1N, 6-4-6371-1R, 6-4-6371-1X, 6-4-6381X, 6-4-6391-1R
Regular price
$146.28
Unit price
/
Unavailable
Shipping calculated at checkout.
Half Round Style 1710 Series End Yoke 39 Spline | 17N 4 6391 1X, 17N4-6391-1X, 17TYS32 99A, 17TYS32-95A, 17TYS32-99, 17TYS3299A, 2013-006-C, 2013-007-C, 2013007C, 2013007C91, 6-4-6371-1, 6-4-6371-1N, 6-4-6371-1R, 6-4-6371-1X, 6-4-6381X, 6-4-6391-1R is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Half Round Style 1710 Series End Yoke 39 Spline | 17N 4 6391 1X, 17...
Regular price
$146.28
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | Yes |
|---|---|
| Bearing Type | HR |
| C'bore Depth | 0.09 Inch |
| C-Bore Diameter | 2.06 Inch |
| Centerline To End | 6.25 |
| Centerline to End | 6.25 Inch |
| Dimensions | Spline Size: 2.024 - 39 Major Diameter: 2.024 Ground Hub Diameter: 3.000 Length Thru Hole: 2.312 Centerline To End: 6.250 CBore Depth: 0.090 Inch |
| Ground Hub Diameter | 3 Inch |
| Ground Hub Diameter | 3 Inch |
| Includes Slinger/Plug | Yes |
| Involute Spline | No |
| Joint Angle | 43.5 Degrees |
| Length Thru Hole | 2.312 Inch |
| Length Thru Hole | 2.312 Inch |
| Major Diameter | 2.024 Inch |
| Material | Steel |
| Maximum Hub Diameter | 3 Inch |
| Outside Yoke Dimension | 6.19 Inch |
| Series | 1710 Series (Half Round) |
| Spline Diameter | 2.024 Inch |
| Spline Length | 2.31 Inch |
| Spline Quantity | 39 |
| Spline Size | 2.024 - 39 Inch |
| Style | HR |
| Type | Splined Hole |
| Universal Joint Series | 1710 |
| Yoke Bearing Dimension | 1.938 Inch |
| Yoke Style | HR |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Meritor | 17N 4 6391 1X |
| Spicer | 17N4-6391-1X |
| Meritor | 17TYS32 99A |
| Meritor | 17TYS32-95A |
| Spicer | 17TYS32-99 |
| Meritor | 17TYS3299A |
| Spicer | 2013-006-C |
| International | 2013-007-C |
| International | 2013007C |
| International | 2013007C91 |
| Spicer | 6-4-6371-1 |
| Spicer | 6-4-6371-1N |
| World American | 6-4-6371-1R |
| Spicer | 6-4-6371-1X |
| Spicer | 6-4-6381X |
| World American | 6-4-6391-1R |
| Spicer | 6-4-6391-1X |
| Spicer | 6-4-6391-1XN |
| Spicer | 6-4-8571-1X |
| Midwest Truck & Auto Parts Inc | 646371R |
| World American | 6463911R |
| Prima Brands | 6463911X |
| Volvo Truck | 8068502 |
| Automann | 823517TYS3299 |
| Neapco OE Series | N6-4-6371 |
| Neapco OE Series | N6-4-6391-1X |
| Automann | NEPN6-4-6371-1 |
| Genuine Newstar | S-B994 |
| Genuine Newstar | SB994 |
| Genuine Newstar | SD-6-4-6391-1X |
| Spicer | SD6463911X |
| Freightliner | TDA 17N463911X |
| Freightliner | TDA 17TYS32 99 |
