SKU:
GTP06015

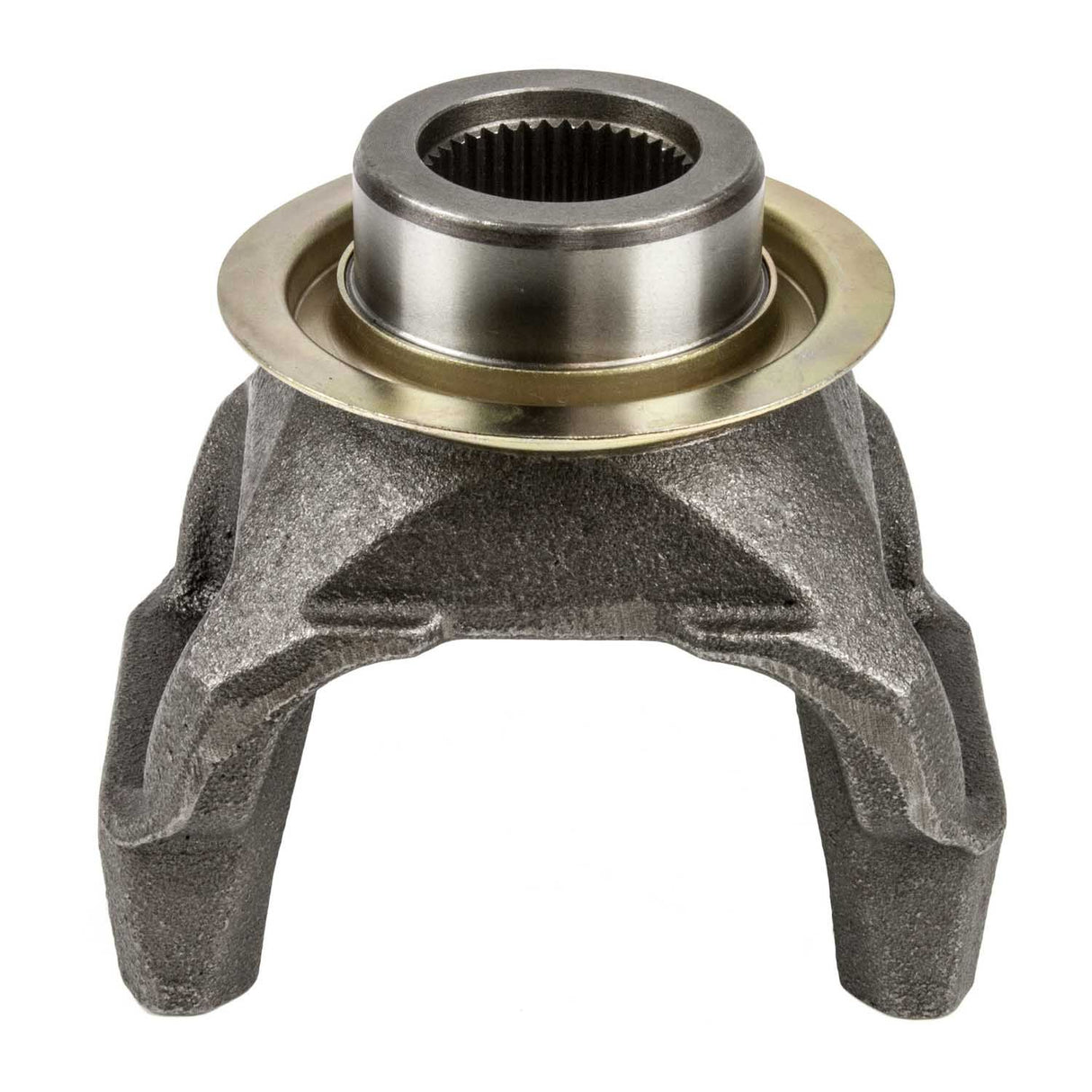

Half Round Style 1710 Series End Yoke 39 Spline | 6-4-8411-1, 6-4-8411-1X, 6-4-8991-1XR, S-47245, S47245
Regular price
$110.39
Unit price
/
Unavailable
Shipping calculated at checkout.
Half Round Style 1710 Series End Yoke 39 Spline | 6-4-8411-1, 6-4-8411-1X, 6-4-8991-1XR, S-47245, S47245 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Half Round Style 1710 Series End Yoke 39 Spline | 6-4-8411-1, 6-4-8...
Regular price
$110.39
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | Yes |
|---|---|
| Centerline to End | 6.125 Inch |
| Includes Slinger/Plug | Yes |
| Joint Angle | 39.5 Degrees |
| Length Thru Hole | 2.281 Inch |
| Material | Steel |
| Maximum Hub Diameter | 3 Inch |
| Outside Yoke Dimension | 6.19 Inch |
| Series | 1710 Series (Half Round) |
| Spline Quantity | 39 |
| Type | Splined Hole |
| U Joint Cap Diameter | 2.024 Inch |
| Yoke Bearing Dimension | 1.938 Inch |
| Yoke Style | HR |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Spicer | 6-4-8411-1 |
| Spicer | 6-4-8411-1X |
| World American | 6-4-8991-1XR |
| Genuine Newstar | S-47245 |
| Genuine Newstar | S47245 |
