SKU:
GTP11824

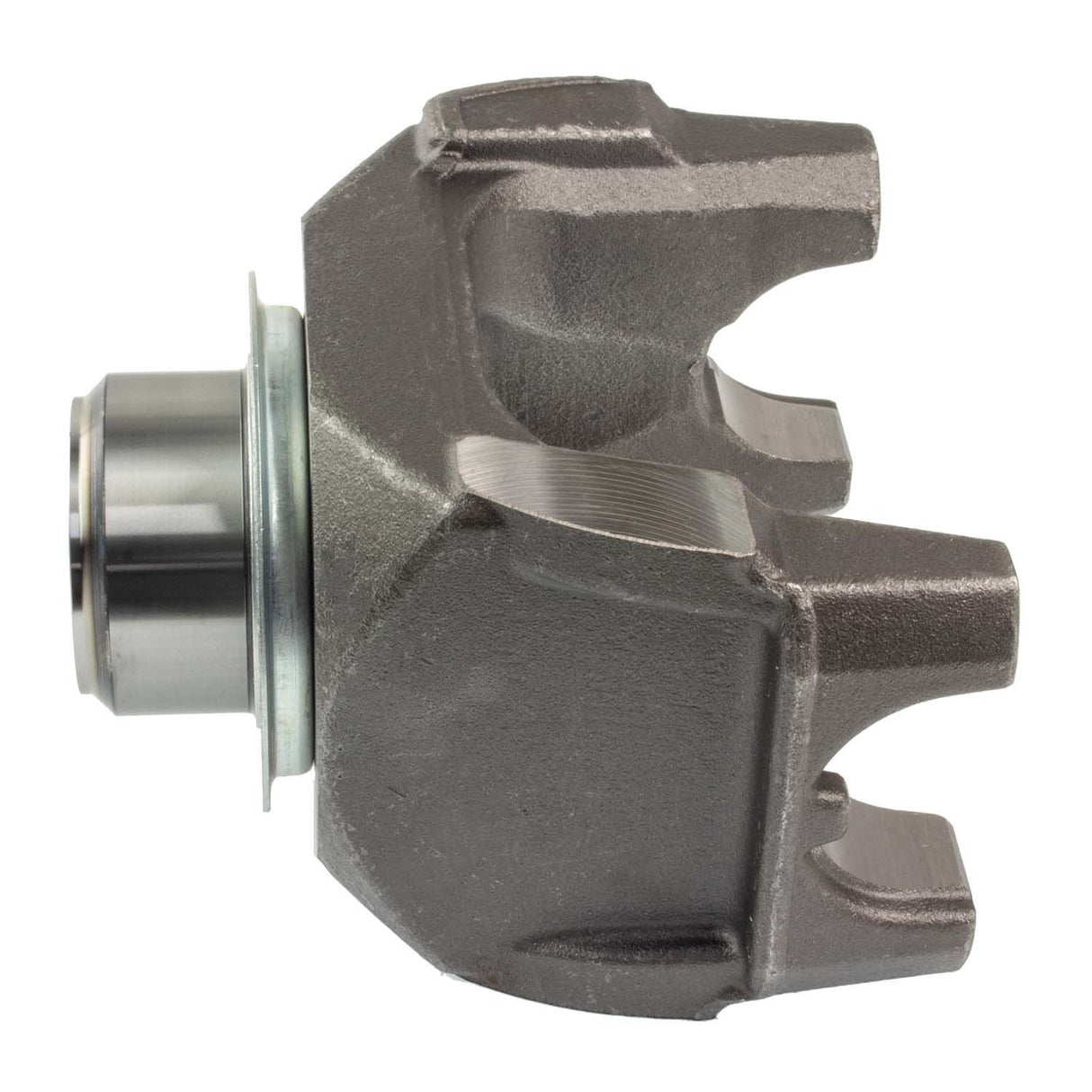

Half Round Style 1710 Series End Yoke 39 Spline | 6-4-8431-1, 6-4-8431-1X, 6-4-9001-1, 6-4-9001-1XR, 6484311S, S-27575, S-E708, S27575, SD-6-4-9001-1, SE708, SP6484311
Regular price
$162.68
Unit price
/
Unavailable
Shipping calculated at checkout.
Half Round Style 1710 Series End Yoke 39 Spline | 6-4-8431-1, 6-4-8431-1X, 6-4-9001-1, 6-4-9001-1XR, 6484311S, S-27575, S-E708, S27575, SD-6-4-9001-1, SE708, SP6484311 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Half Round Style 1710 Series End Yoke 39 Spline | 6-4-8431-1, 6-4-8...
Regular price
$162.68
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | Yes |
|---|---|
| C-Bore Depth | 0.25 Inch |
| C-Bore Diameter | 2.047 Inch |
| Centerline to End | 6.125 Inch |
| Includes Slinger/Plug | Yes |
| Joint Angle | 39.5 Degrees |
| Length Thru Hole | 2.5 Inch |
| Material | Steel |
| Maximum Hub Diameter | 2.625 Inch |
| Outside Yoke Dimension | 6.19 Inch |
| Series | 1710 Series (Half Round) |
| Spline Quantity | 39 |
| Type | Splined Hole |
| Yoke Bearing Dimension | 1.938 Inch |
| Yoke Style | HR |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Spicer | 6-4-8431-1 |
| Spicer | 6-4-8431-1X |
| Spicer | 6-4-9001-1 |
| World American | 6-4-9001-1XR |
| AXLE TECH INTERNATIONAL | 6484311S |
| Genuine Newstar | S-27575 |
| Genuine Newstar | S-E708 |
| Genuine Newstar | S27575 |
| Genuine Newstar | SD-6-4-9001-1 |
| Genuine Newstar | SE708 |
| Freightliner | SP6484311 |
