SKU:
GTP11726

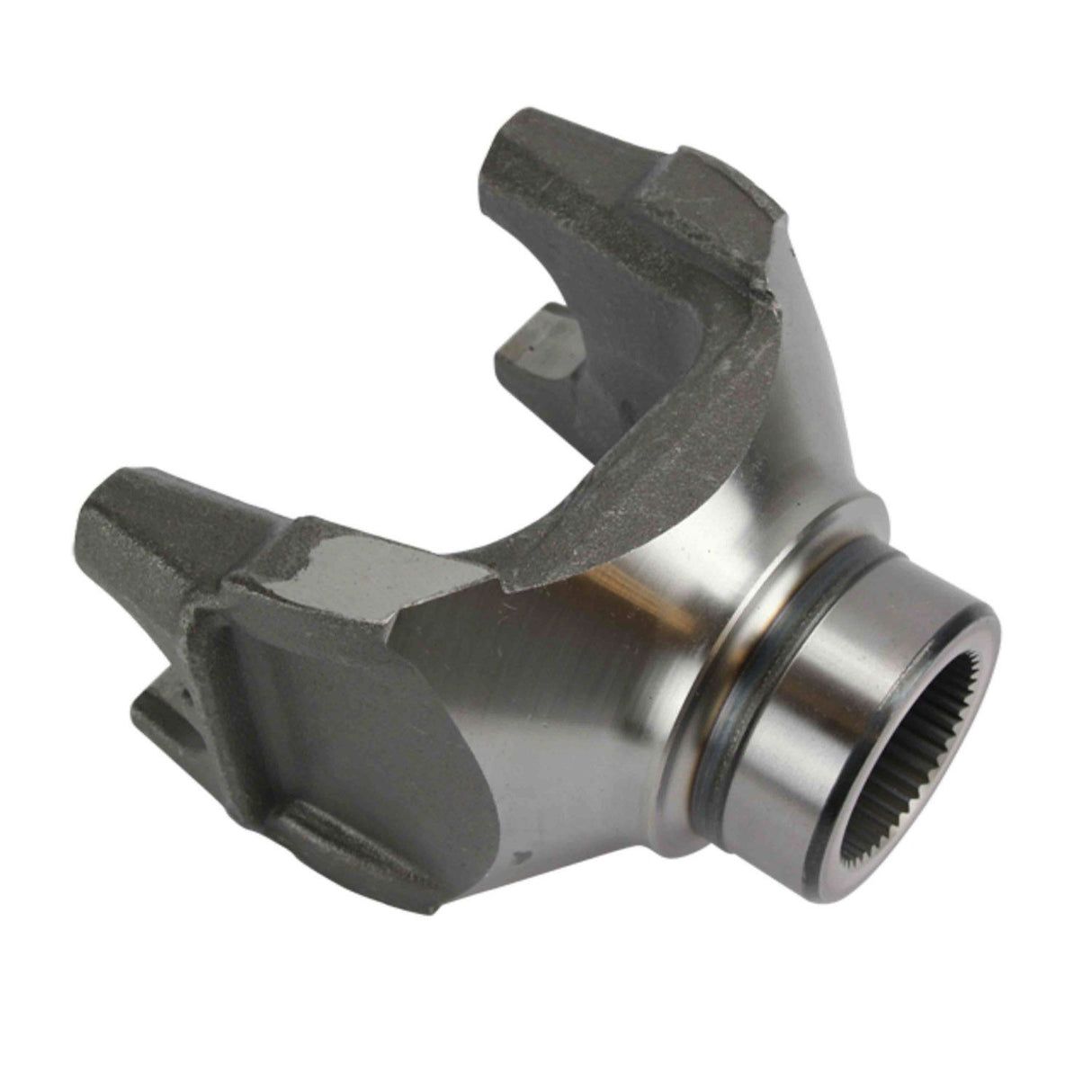

Half Round Style 1710 Series End Yoke 41 Spline | 128938, 17N4-7561-1X, 6-4-7551-1, 6-4-7561-1X, 6-4-9181-1, 6-4-9181-1X, PAC6-4-9181-1, S-13616, S-F498, S13616, SD-6-4-9181-1, SD6491811, SF498
Regular price
$104.04
Unit price
/
Unavailable
Shipping calculated at checkout.
Half Round Style 1710 Series End Yoke 41 Spline | 128938, 17N4-7561-1X, 6-4-7551-1, 6-4-7561-1X, 6-4-9181-1, 6-4-9181-1X, PAC6-4-9181-1, S-13616, S-F498, S13616, SD-6-4-9181-1, SD6491811, SF498 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Half Round Style 1710 Series End Yoke 41 Spline | 128938, 17N4-7561...
Regular price
$104.04
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | Yes |
|---|---|
| Bearing Type | HR |
| Centerline To End | 6.125 |
| Centerline to End | 6.125 Inch |
| Dimensions | Spline Size: 2.143 - 41 Major Diameter: 2.143 Ground Hub Diameter: 2.938 Length Thru Hole: 2.500 Centerline To End: 6.125 Inch |
| Ground Hub Diameter | 2.938 Inch |
| Includes Slinger/Plug | Yes |
| Involute Spline | Yes |
| Length Thru Hole | 2.5 Inch |
| Length Thru Hole | 2.5 Inch |
| Major Diameter | 2.143 Inch |
| Material | Steel |
| Maximum Hub Diameter | 2.938 Inch |
| Outside Yoke Dimension | 6.19 Inch |
| Series | 1710 Series (Half Round) |
| Spline Quantity | 41 |
| Spline Size | 2.143 - 41 Inch |
| Style | HR |
| Type | Splined Hole |
| U Joint Cap Diameter | 2.143 Inch |
| Yoke Bearing Dimension | 1.938 Inch |
| Yoke Style | HR |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Eaton | 128938 |
| Meritor | 17N4-7561-1X |
| Spicer | 6-4-7551-1 |
| Spicer | 6-4-7561-1X |
| Spicer | 6-4-9181-1 |
| Spicer | 6-4-9181-1X |
| Spicer | PAC6-4-9181-1 |
| Genuine Newstar | S-13616 |
| Genuine Newstar | S-F498 |
| Genuine Newstar | S13616 |
| Genuine Newstar | SD-6-4-9181-1 |
| Spicer | SD6491811 |
| Genuine Newstar | SF498 |
