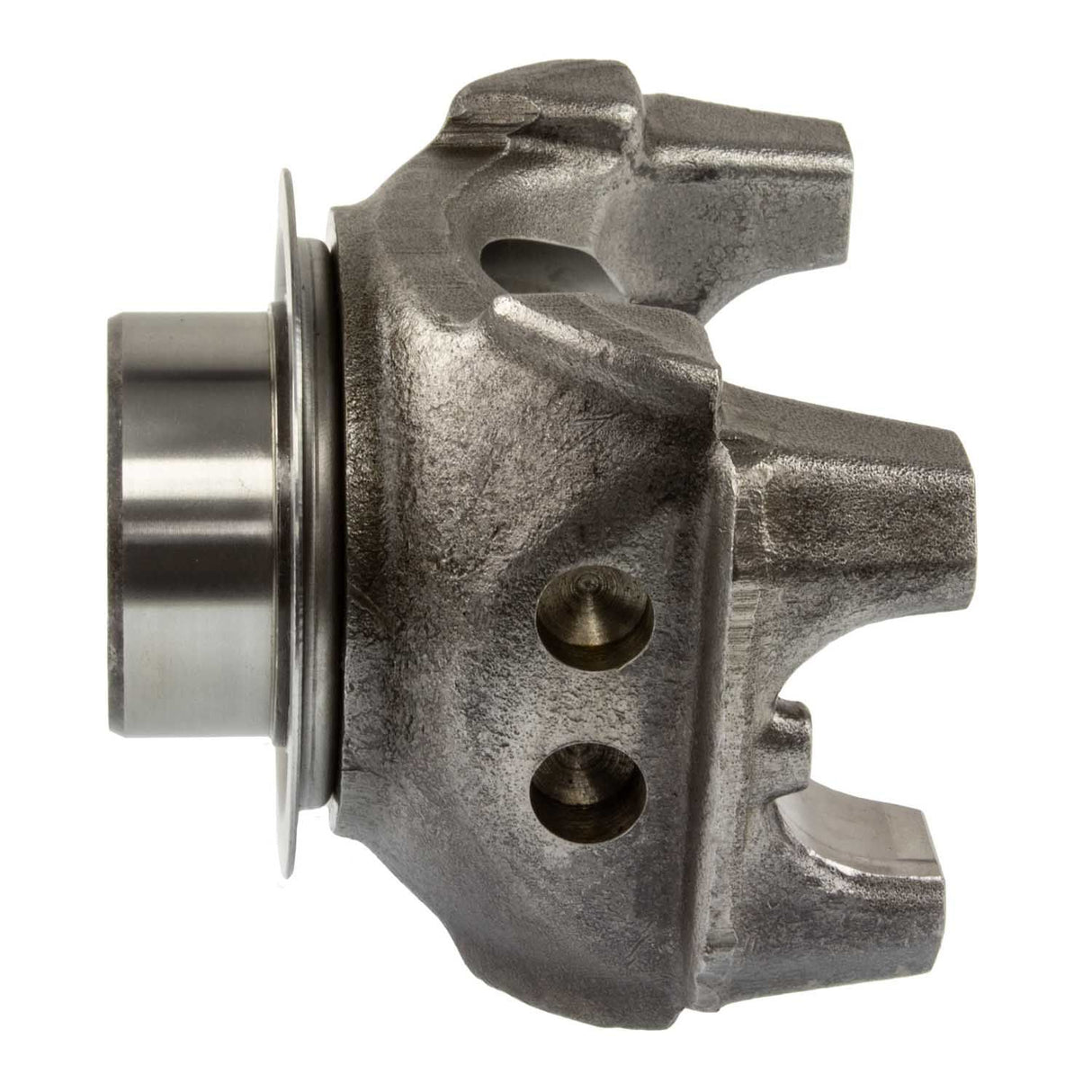

This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | Yes |
|---|---|
| Bearing Type | HR |
| C'bore Depth | 0.236 Inch |
| C-Bore Diameter | 2.28 Inch |
| Centerline To End | 5.19 |
| Centerline to End | 5.19 Inch |
| Dimensions | Spline Size: 2.274 - 44 Major Diameter: 2.274 Ground Hub Diameter: 3.000 Length Thru Hole: 2.500 Centerline To End: 5.190 CBore Depth: 0.236 Inch |
| Ground Hub Diameter | 3 Inch |
| Includes Slinger/Plug | Yes |
| Joint Angle | 30 Degrees |
| Length Thru Hole | 2.5 Inch |
| Length Thru Hole | 2.5 Inch |
| Major Diameter | 2.274 Inch |
| Material | Steel |
| Maximum Hub Diameter | 3 Inch |
| Outside Yoke Dimension | 6.19 Inch |
| Series | 1710 Series (Half Round) |
| Spline Quantity | 44 |
| Spline Size | 2.274 - 44 Inch |
| Style | HR |
| Type | Splined Hole |
| Yoke Bearing Dimension | 1.938 Inch |
| Yoke Style | HR |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Eaton | 127617 |
| General Motors | 15708543 |
| Meritor | 17TY36-62A |
| International | 2017785C |
| International | 2017785C91 |
| Volvo Truck | 3919549 |
| Spicer | 6-4-8451-1 |
| Spicer | 6-4-8981-1 |
| Prima Brands | 6489811X |
| Genuine Newstar | S-F207 |
| Genuine Newstar | SD-6-4-8981-1X |
| Spicer | SD6489811X |
| Genuine Newstar | SF207 |
