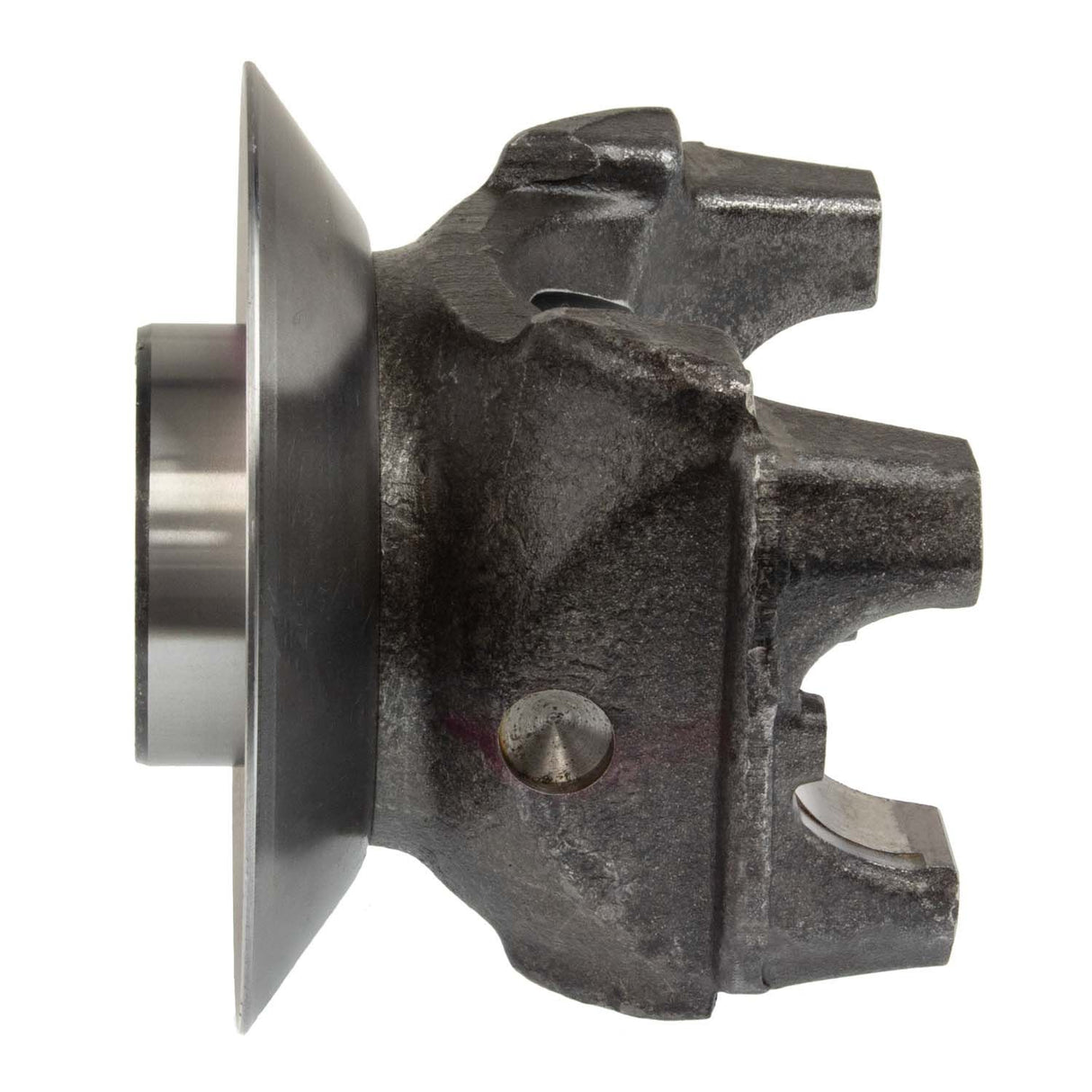

Half Round Style 1710 Series End Yoke 46 Spline | 15656445, 1657320C, 1657320C91, 17N 4 7181 1X, 17N4-7181-1X, 17N47-1811X, 17N471811X, 17TYS38 76, 17TYS38 76A, 17TYS38-76A, 6-4-7161-1, 6471811X, A-3260-G-1229, N6471811X, S-13873, S13873, SD-6-4-7181-1X
Regular price
$133.39
Unit price
/
Unavailable
Shipping calculated at checkout.
Half Round Style 1710 Series End Yoke 46 Spline | 15656445, 1657320C, 1657320C91, 17N 4 7181 1X, 17N4-7181-1X, 17N47-1811X, 17N471811X, 17TYS38 76, 17TYS38 76A, 17TYS38-76A, 6-4-7161-1, 6471811X, A-3260-G-1229, N6471811X, S-13873, S13873, SD-6-4-7181-1X is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Half Round Style 1710 Series End Yoke 46 Spline | 15656445, 1657320...
Regular price
$133.39
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | Yes |
|---|---|
| Bearing Type | HR |
| C'bore Depth | 0.14 Inch |
| Centerline To End | 5.391 |
| Centerline to End | 5.391 Inch |
| Diameter | 2.39 Inch |
| Dimensions | Spline Size: 2.390 - 46 Major Diameter: 2.390 Ground Hub Diameter: 3.250 Length Thru Hole: 2.328 Centerline To End: 5.391 CBore Depth: 0.140 Inch |
| Ground Hub Diameter | 3.25 Inch |
| Includes Slinger/Plug | Yes |
| Involute Spline | No |
| Length Thru Hole | 2.328 Inch |
| Length Thru Hole | 2.328 Inch |
| Major Diameter | 2.39 Inch |
| Material | Steel |
| Maximum Hub Diameter | 3.25 Inch |
| Outside Yoke Dimension | 6.19 Inch |
| Series | 1710 Series (Half Round) |
| Spline Quantity | 46 |
| Spline Size | 2.390 - 46 Inch |
| Style | HR |
| Type | Splined Hole |
| Yoke Bearing Dimension | 1.938 Inch |
| Yoke Style | HR |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| GMC | 15656445 |
| International | 1657320C |
| International | 1657320C91 |
| Meritor | 17N 4 7181 1X |
| Meritor | 17N4-7181-1X |
| Spicer | 17N47-1811X |
| Meritor | 17N471811X |
| Meritor | 17TYS38 76 |
| Meritor | 17TYS38 76A |
| Meritor | 17TYS38-76A |
| Spicer | 6-4-7161-1 |
| Prima Brands | 6471811X |
| Meritor | A-3260-G-1229 |
| Neapco OE Series | N6471811X |
| Genuine Newstar | S-13873 |
| Genuine Newstar | S13873 |
| Genuine Newstar | SD-6-4-7181-1X |
| Spicer | SD6471811X |
| Freightliner | TDA 17N4 7181 1X |
