SKU:
GTP06020

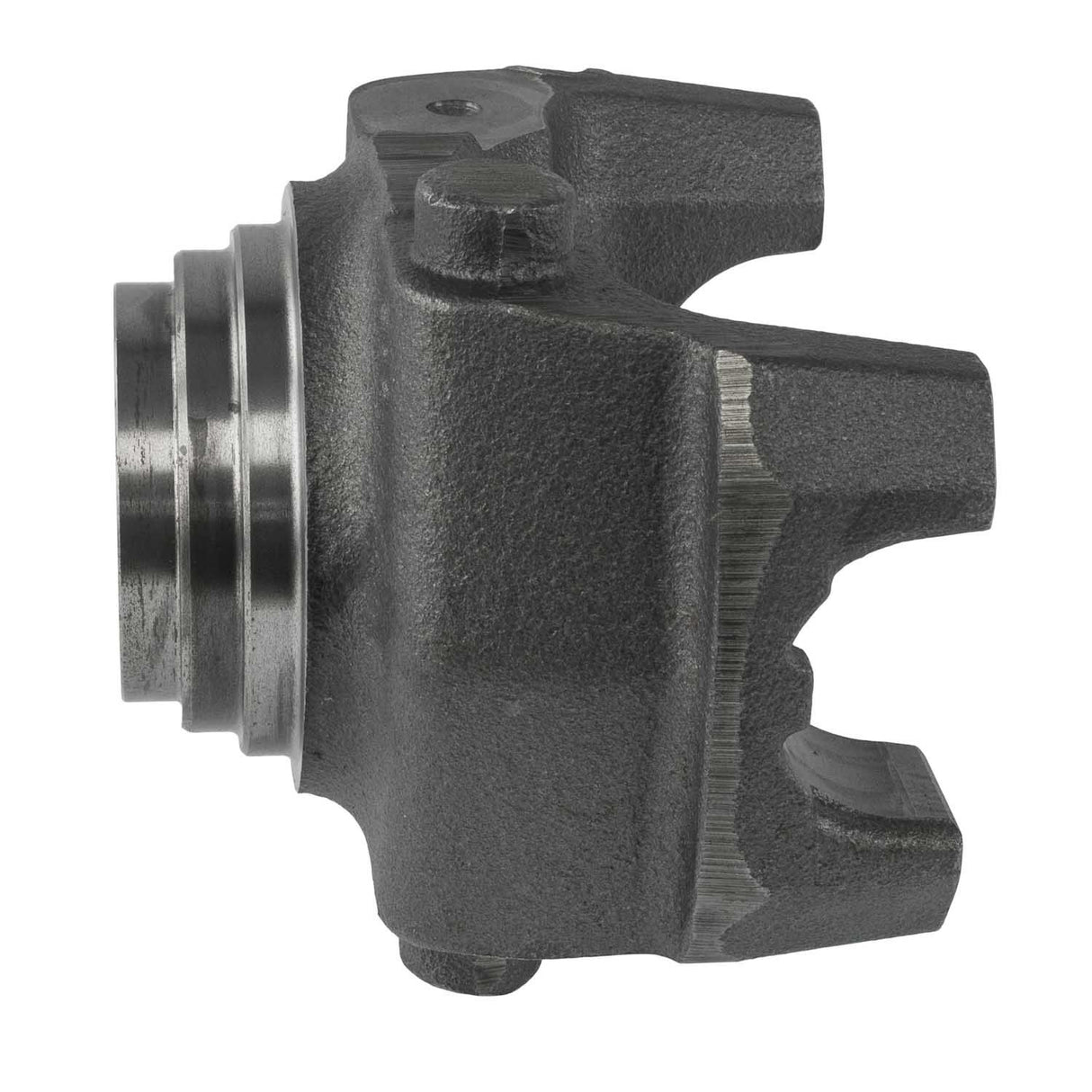

Half Round Style 1710 Series End Yoke 46 Spline | 1668-158-C, 2104-6474811, 6-4-7481-1, 6-4-7481-1N, 6-4-7481-1X, 6474811, N6-4-7481-1, NEPN6-4-7481-1, S-B330, S-F314, SB330, SD-6-4-7481-1, SD6474811, SF314, SP6474811
Regular price
$96.86
Unit price
/
Unavailable
Shipping calculated at checkout.
Half Round Style 1710 Series End Yoke 46 Spline | 1668-158-C, 2104-6474811, 6-4-7481-1, 6-4-7481-1N, 6-4-7481-1X, 6474811, N6-4-7481-1, NEPN6-4-7481-1, S-B330, S-F314, SB330, SD-6-4-7481-1, SD6474811, SF314, SP6474811 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Half Round Style 1710 Series End Yoke 46 Spline | 1668-158-C, 2104-...
Regular price
$96.86
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | No |
|---|---|
| Bearing Type | HR |
| C'bore Depth | 0.5 Inch |
| Centerline To End | 4.938 |
| Centerline to End | 4.938 Inch |
| Dimensions | Spline Size: 2.390 - 46 Major Diameter: 2.390 Ground Hub Diameter: 2.875 Length Thru Hole: 2.750 Centerline To End: 4.938 CBore Depth: 0.500 Inch |
| Ground Hub Diameter | 2.875 Inch |
| Includes Slinger/Plug | No |
| Joint Angle | 20.5 Degrees |
| Length Thru Hole | 2.75 Inch |
| Length Thru Hole | 2.75 Inch |
| Major Diameter | 2.39 Inch |
| Material | Steel |
| Maximum Hub Diameter | 2.875 Inch |
| Outside Yoke Dimension | 6.19 Inch |
| Series | 1710 Series (Half Round) |
| Spline Quantity | 46 |
| Spline Size | 2.390 - 46 Inch |
| Style | HR |
| Type | Splined Hole |
| U Joint Cap Diameter | 2.39 Inch |
| Yoke Bearing Dimension | 1.938 Inch |
| Yoke Style | HR |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| International | 1668-158-C |
| Mack | 2104-6474811 |
| Spicer | 6-4-7481-1 |
| Spicer | 6-4-7481-1N |
| Spicer | 6-4-7481-1X |
| Prima Brands | 6474811 |
| Spicer | N6-4-7481-1 |
| Automann | NEPN6-4-7481-1 |
| Genuine Newstar | S-B330 |
| Genuine Newstar | S-F314 |
| Genuine Newstar | SB330 |
| Genuine Newstar | SD-6-4-7481-1 |
| Spicer | SD6474811 |
| Genuine Newstar | SF314 |
| Freightliner | SP6474811 |
