SKU:
GTP11847

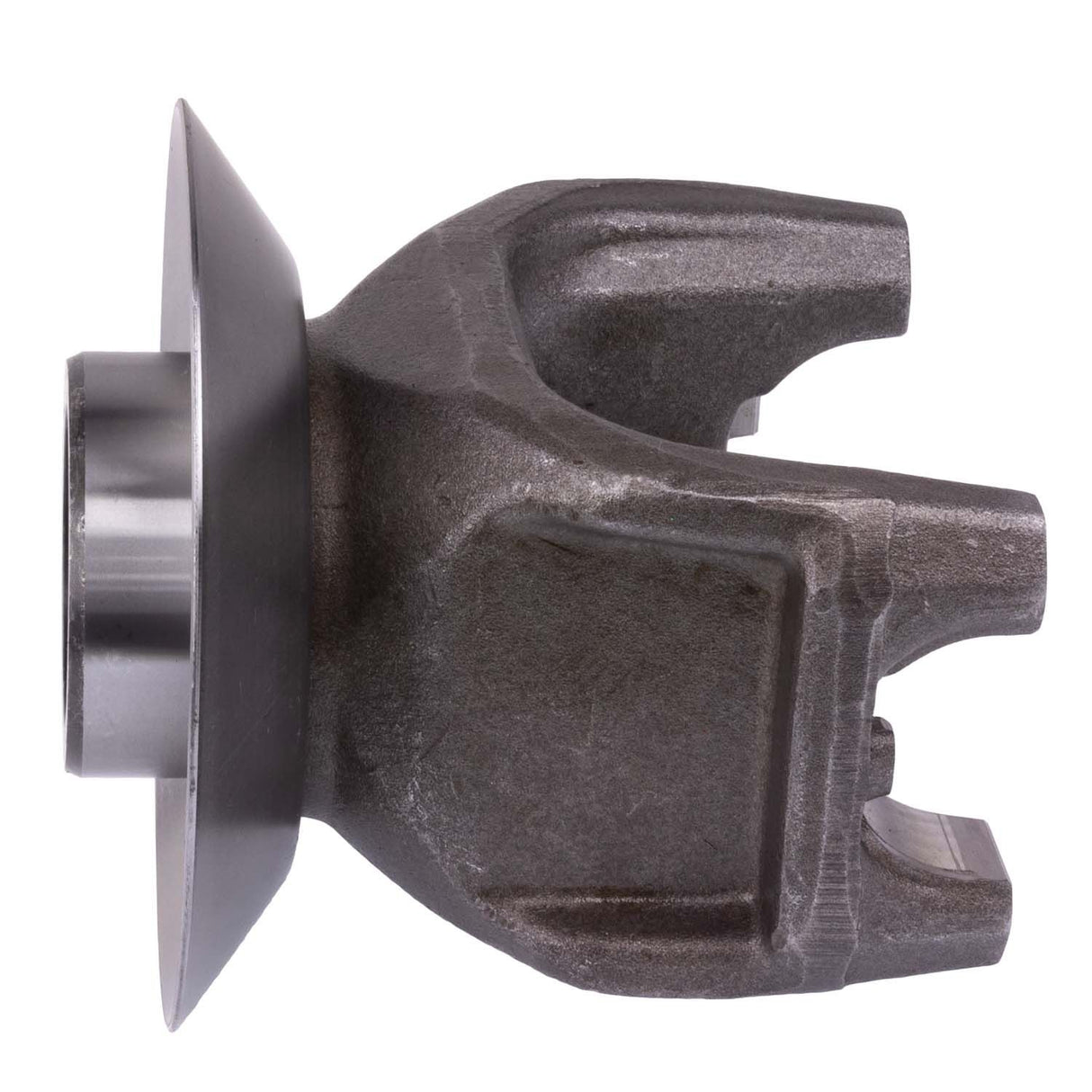

Half Round Style 1710 Series End Yoke 46 Spline | 17N4-7771-1X, 17N477711X, 17N47771X, 17NYS-38-71A, 17TYS38-75A, 2013-008-C, 2013008C, 2013008C91, 6-4-7761-1, 6-4-7771-1, 6-4-7771-1R, 6477711X, 8068512, S-F340, SD-6-4-7771-1X, SD6477711X
Regular price
$139.55
Unit price
/
Unavailable
Shipping calculated at checkout.
Half Round Style 1710 Series End Yoke 46 Spline | 17N4-7771-1X, 17N477711X, 17N47771X, 17NYS-38-71A, 17TYS38-75A, 2013-008-C, 2013008C, 2013008C91, 6-4-7761-1, 6-4-7771-1, 6-4-7771-1R, 6477711X, 8068512, S-F340, SD-6-4-7771-1X, SD6477711X is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Half Round Style 1710 Series End Yoke 46 Spline | 17N4-7771-1X, 17N...
Regular price
$139.55
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | Yes |
|---|---|
| Bearing Type | HR |
| C'bore Depth | 0.14 Inch |
| Centerline To End | 6.5 |
| Centerline to End | 6.5 Inch |
| Diameter | 2.39 Inch |
| Dimensions | Spline Size: 2.390 - 46 Major Diameter: 2.390 Ground Hub Diameter: 3.250 Length Thru Hole: 2.344 Centerline To End: 6.500 CBore Depth: 0.140 Inch |
| Ground Hub Diameter | 3.25 Inch |
| Includes Slinger/Plug | Yes |
| Joint Angle | 45 Degrees |
| Length Thru Hole | 2.344 Inch |
| Length Thru Hole | 2.344 Inch |
| Major Diameter | 2.39 Inch |
| Material | Steel |
| Maximum Hub Diameter | 3.25 Inch |
| Series | 1710 Series (Half Round) |
| Spline Quantity | 46 |
| Spline Size | 2.390 - 46 Inch |
| Style | HR |
| Type | Splined Hole |
| Yoke Style | HR |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Meritor | 17N4-7771-1X |
| Meritor | 17N477711X |
| Meritor | 17N47771X |
| Meritor | 17NYS-38-71A |
| Spicer | 17TYS38-75A |
| International | 2013-008-C |
| International | 2013008C |
| International | 2013008C91 |
| Spicer | 6-4-7761-1 |
| Spicer | 6-4-7771-1 |
| World American | 6-4-7771-1R |
| Prima Brands | 6477711X |
| World American | |
| Volvo Truck | 8068512 |
| Genuine Newstar | S-F340 |
| Genuine Newstar | SD-6-4-7771-1X |
| Spicer | SD6477711X |
| Genuine Newstar | SF340 |
| Freightliner | TDA 17TYS38 75A |
