SKU:
GTP06087

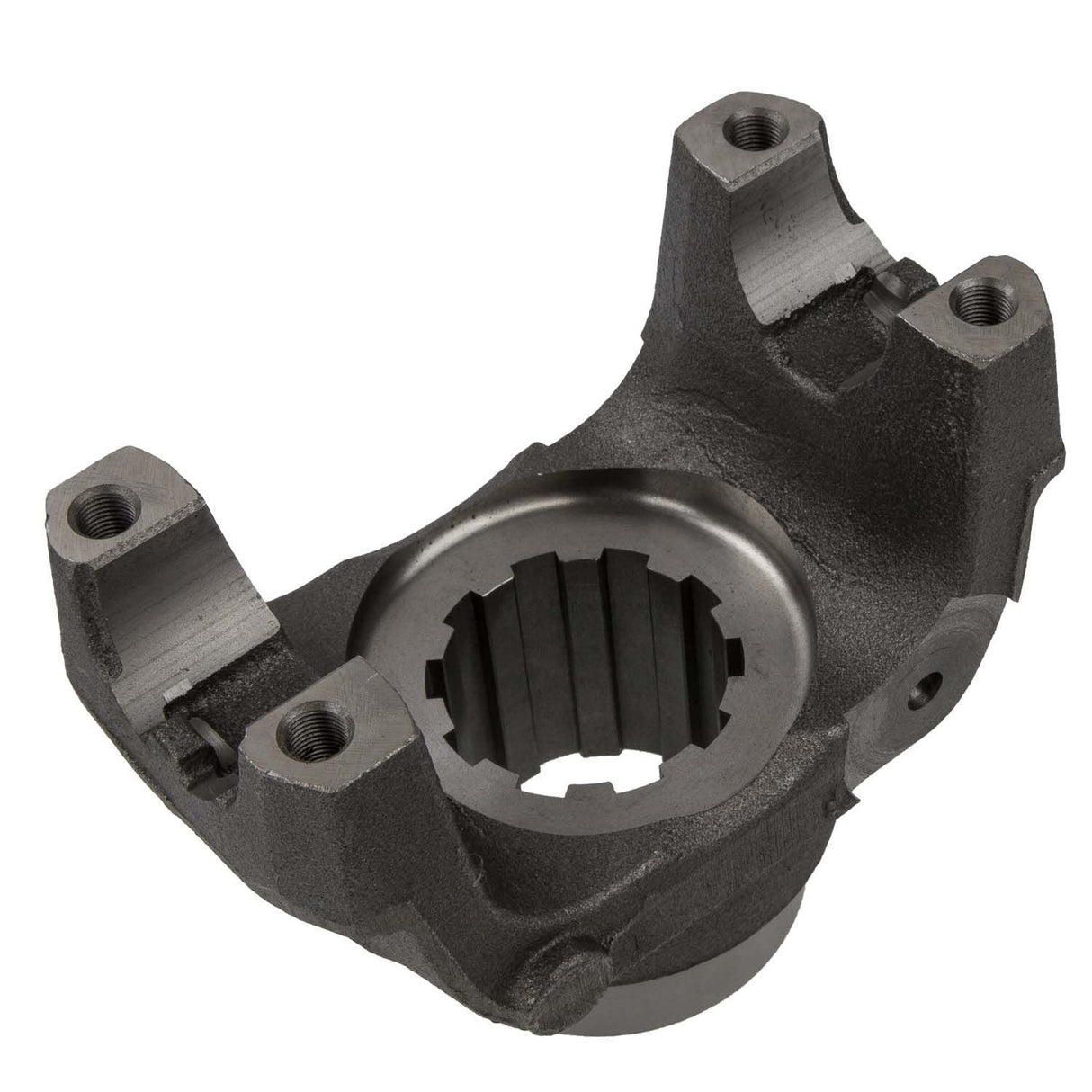

Half Round Style 1760 Series End Yoke 10 Spline | 016.3-4-7911X, 1657-280-C, 1657280C, 1657280C91, 1658881C, 1658881C91, 176MU51P15, 176N4-791-1X, 176N47911X, 176TYS44-4A, 2104-6347911X, 2104-637911X, 6.3-4-711-1, 6.3-4-711-1R, 6.3-4-791-1R, 6.3-4-791-1X
Regular price
$122.20
Unit price
/
Unavailable
Shipping calculated at checkout.
Half Round Style 1760 Series End Yoke 10 Spline | 016.3-4-7911X, 1657-280-C, 1657280C, 1657280C91, 1658881C, 1658881C91, 176MU51P15, 176N4-791-1X, 176N47911X, 176TYS44-4A, 2104-6347911X, 2104-637911X, 6.3-4-711-1, 6.3-4-711-1R, 6.3-4-791-1R, 6.3-4-791-1X is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Half Round Style 1760 Series End Yoke 10 Spline | 016.3-4-7911X, 16...
Regular price
$122.20
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Across Ears | 7.09 Inch |
|---|---|
| Assembly | Yes |
| Bearing Cap Diameter | 1.94 Inch |
| Bearing Type | HR |
| Centerline To End | 5.969 |
| Centerline to End | 5.969 Inch |
| Dimensions | Spline Size: 2.750 - 10 Major Diameter: 2.750 Ground Hub Diameter: 3.750 Length Thru Hole: 3.000 Centerline To End: 5.969 Inch |
| Ground Hub Diameter | 3.75 Inch |
| Ground Hub Diameter | 3.75 Inch |
| Includes Slinger/Plug | Yes |
| Involute Spline | No |
| Joint Angle | 34 Degrees |
| Length Thru Hole | 3 Inch |
| Length Thru Hole | 3 Inch |
| Major Diameter | 2.75 Inch |
| Material | Steel |
| Maximum Hub Diameter | 3.75 Inch |
| Outside Yoke Dimension | 7.094 Inch |
| Series | 1760 Series (Half Round) |
| Spline Diameter | 2.75 Inch |
| Spline Length | 3 Inch |
| Spline Quantity | 10 |
| Spline Size | 2.750 - 10 Inch |
| Style | HR |
| Type | Splined Hole |
| Universal Joint Series | 1760 |
| Yoke Bearing Dimension | 1.938 Inch |
| Yoke Style | HR |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Freightliner | 016.3-4-7911X |
| International | 1657-280-C |
| International | 1657280C |
| International | 1657280C91 |
| International | 1658881C |
| International | 1658881C91 |
| Spicer | 176MU51P15 |
| Meritor | 176N4-791-1X |
| Meritor | 176N47911X |
| Meritor | 176TYS44-4A |
| Mack | 2104-6347911X |
| Mack | 2104-637911X |
| Spicer | 6.3-4-711-1 |
| World American | 6.3-4-711-1R |
| World American | 6.3-4-791-1R |
| Spicer | 6.3-4-791-1X |
| Spicer | 6.3-4-791X |
| Midwest Truck & Auto Parts Inc | 6347111R |
| Prima Brands | 6347911X |
| Automann | 8235176N47911X |
| Fuller- Transmissions | 86771 |
| Fuller- Transmissions | A-5416 |
| Neapco OE Series | N6.3-4-791-1X |
| Spicer | PAC6.3-4-791-1X |
| Genuine Newstar | S-A138 |
| Genuine Newstar | SA138 |
| Genuine Newstar | SD-6.3-4-791-1X |
| Freightliner | TDA 176N4 791 1X |
