SKU:
GTP11787

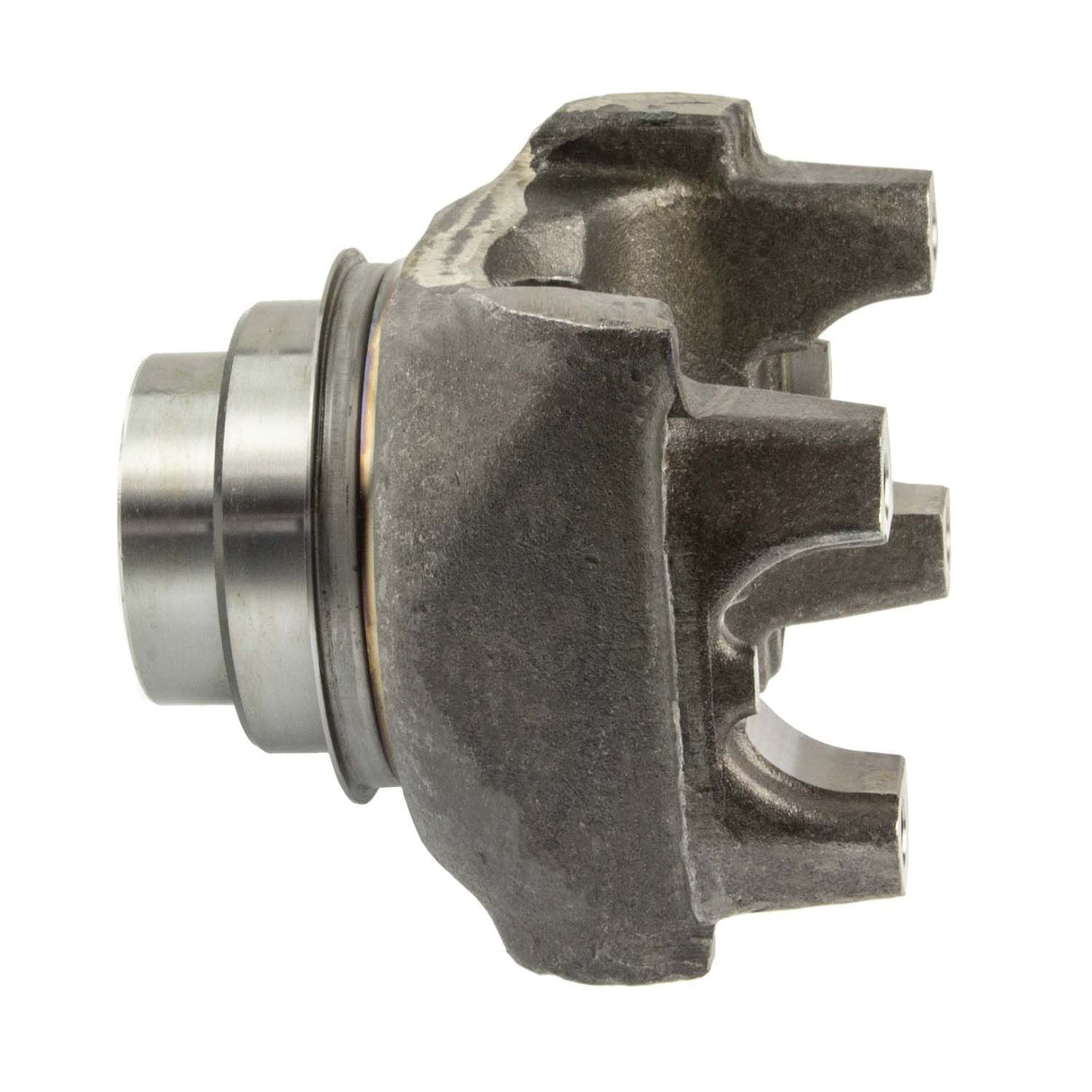

Half Round Style 1760 Series End Yoke 10 Spline | 15629259, 1657277C91, 1666194C1, 176MU51P3, 176N4-781-1X, 176N46511, 176N47811X, 300103218, 6.3-4-651-1R, 6.3-4-781-1, 6.3-4-781-1R, 6.3-4-781-1X, 6346511R, 8071375, N6.3-4-781-1X, S-A125, SA125
Regular price
$127.76
Unit price
/
Unavailable
Shipping calculated at checkout.
Half Round Style 1760 Series End Yoke 10 Spline | 15629259, 1657277C91, 1666194C1, 176MU51P3, 176N4-781-1X, 176N46511, 176N47811X, 300103218, 6.3-4-651-1R, 6.3-4-781-1, 6.3-4-781-1R, 6.3-4-781-1X, 6346511R, 8071375, N6.3-4-781-1X, S-A125, SA125 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Half Round Style 1760 Series End Yoke 10 Spline | 15629259, 1657277...
Regular price
$127.76
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | Yes |
|---|---|
| Bearing Type | HR |
| Centerline To End | 6.031 |
| Centerline to End | 6.031 Inch |
| Dimensions | Spline Size: 2.500 - 10 Major Diameter: 2.500 Ground Hub Diameter: 3.750 Length Thru Hole: 3.000 Centerline To End: 6.031 Inch |
| Ground Hub Diameter | 3.75 Inch |
| Includes Slinger/Plug | Yes |
| Involute Spline | No |
| Length Thru Hole | 3 Inch |
| Length Thru Hole | 3 Inch |
| Major Diameter | 2.5 Inch |
| Material | Steel |
| Maximum Hub Diameter | 3.75 Inch |
| Outside Yoke Dimension | 7.094 Inch |
| Series | 1760 Series (Half Round) |
| Spline Diameter | 2.5 Inch |
| Spline Quantity | 10 |
| Spline Size | 2.500 - 10 Inch |
| Style | HR |
| Type | Splined Hole |
| Yoke Bearing Dimension | 1.938 Inch |
| Yoke Style | HR |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| GMC | 15629259 |
| International | 1657277C91 |
| International | 1666194C1 |
| Mack | 176MU51P3 |
| Meritor | 176N4-781-1X |
| Meritor | 176N46511 |
| Meritor | 176N47811X |
| Volvo Truck | 300103218 |
| World American | 6.3-4-651-1R |
| Spicer | 6.3-4-781-1 |
| World American | 6.3-4-781-1R |
| Spicer | 6.3-4-781-1X |
| World American | 6346511R |
| Volvo Truck | 8071375 |
| Neapco OE Series | N6.3-4-781-1X |
| Genuine Newstar | S-A125 |
| Genuine Newstar | SA125 |
| Genuine Newstar | SD-6.3-4-781-1X |
