SKU:
GTP06093

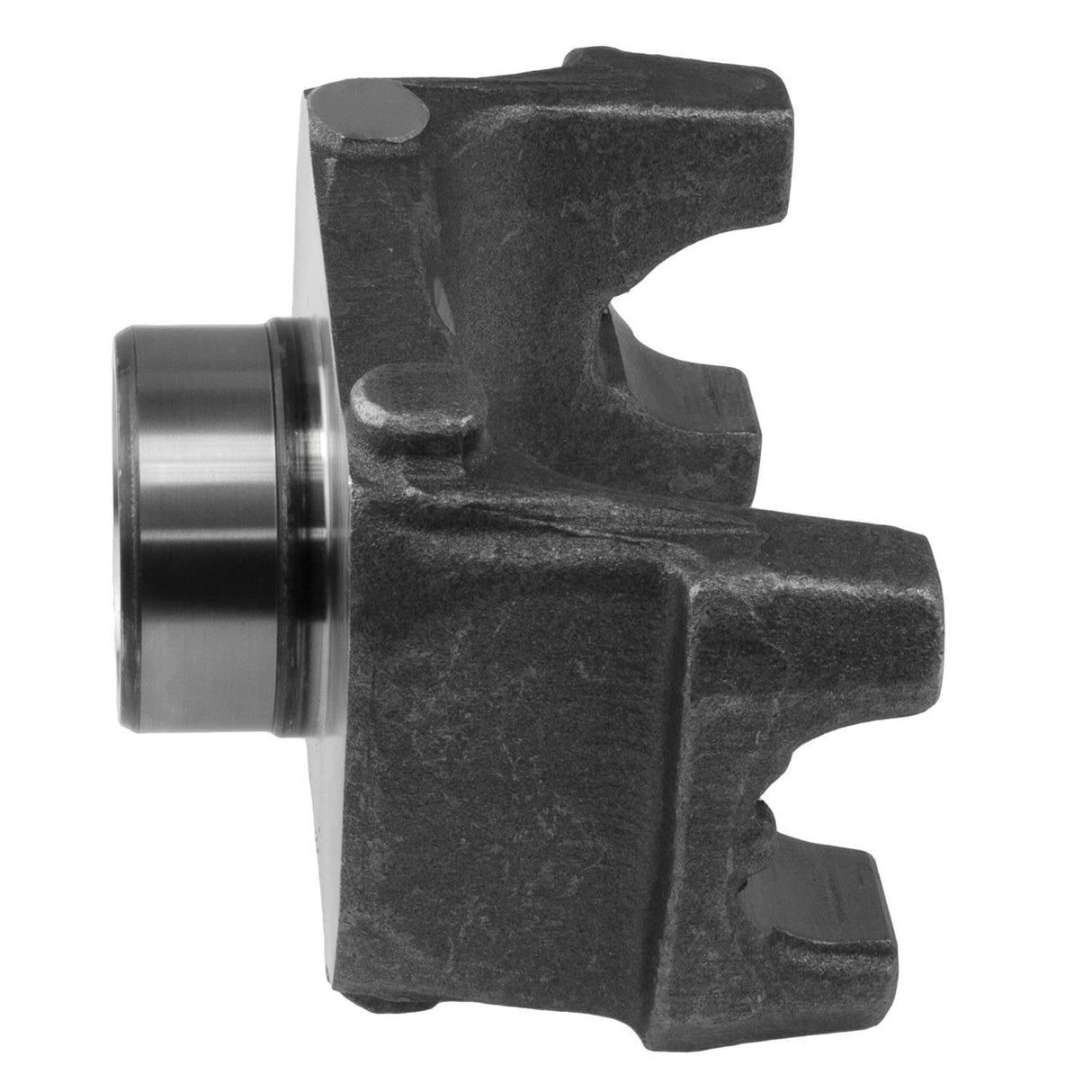

Half Round Style 1760 Series End Yoke 32 Spline | 1689-523-C, 1689523C91, 176N4-1521-1X, 2104-63415211X, 6.3-4-1231-1X, 6.3-4-1511-1, 6.3-4-1521-1X, 6.3-4-1521-1XR, 63415211X, 63415211XR, N6.3-4-1521-1X, S-A614, SA614, SD-6.3-4-1521-1X, SP6.3415211X
Regular price
$121.35
Unit price
/
Unavailable
Shipping calculated at checkout.
Half Round Style 1760 Series End Yoke 32 Spline | 1689-523-C, 1689523C91, 176N4-1521-1X, 2104-63415211X, 6.3-4-1231-1X, 6.3-4-1511-1, 6.3-4-1521-1X, 6.3-4-1521-1XR, 63415211X, 63415211XR, N6.3-4-1521-1X, S-A614, SA614, SD-6.3-4-1521-1X, SP6.3415211X is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Half Round Style 1760 Series End Yoke 32 Spline | 1689-523-C, 16895...
Regular price
$121.35
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | Yes |
|---|---|
| Bearing Type | HR |
| C'bore Depth | 0.424 Inch |
| C-Bore Depth | 0.424 Inch |
| Centerline to End | 5 Inch |
| Centerline To End | 5 |
| Dimensions | Spline Size: 2.114 - 32 Major Diameter: 2.114 Ground Hub Diameter: 3.000 Length Thru Hole: 2.250 Centerline To End: 5.000 CBore Depth: 0.424 Inch |
| Ground Hub Diameter | 3 Inch |
| Includes Slinger/Plug | Yes |
| Involute Spline | Yes |
| Length Thru Hole | 2.25 Inch |
| Length Thru Hole | 2.25 Inch |
| Major Diameter | 2.114 Inch |
| Material | Steel |
| Maximum Hub Diameter | 3 Inch |
| Outside Yoke Dimension | 7.094 Inch |
| Series | 1760 Series (Half Round) |
| Spline Quantity | 32 |
| Spline Size | 2.114 - 32 Inch |
| Style | HR |
| Type | Splined Hole |
| U Joint Cap Diameter | 2.114 Inch |
| Yoke Bearing Dimension | 1.938 Inch |
| Yoke Style | HR |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| International | 1689-523-C |
| Spicer | 1689523C91 |
| Meritor | 176N4-1521-1X |
| OE Aftermarket | 2104-63415211X |
| Spicer | 6.3-4-1231-1X |
| Spicer | 6.3-4-1511-1 |
| Spicer | 6.3-4-1521-1X |
| World American | 6.3-4-1521-1XR |
| Prima Brands | 63415211X |
| World American | 63415211XR |
| Spicer | N6.3-4-1521-1X |
| Genuine Newstar | S-A614 |
| Genuine Newstar | SA614 |
| Genuine Newstar | SD-6.3-4-1521-1X |
| Freightliner | SP6.3415211X |
