SKU:
GTP11722

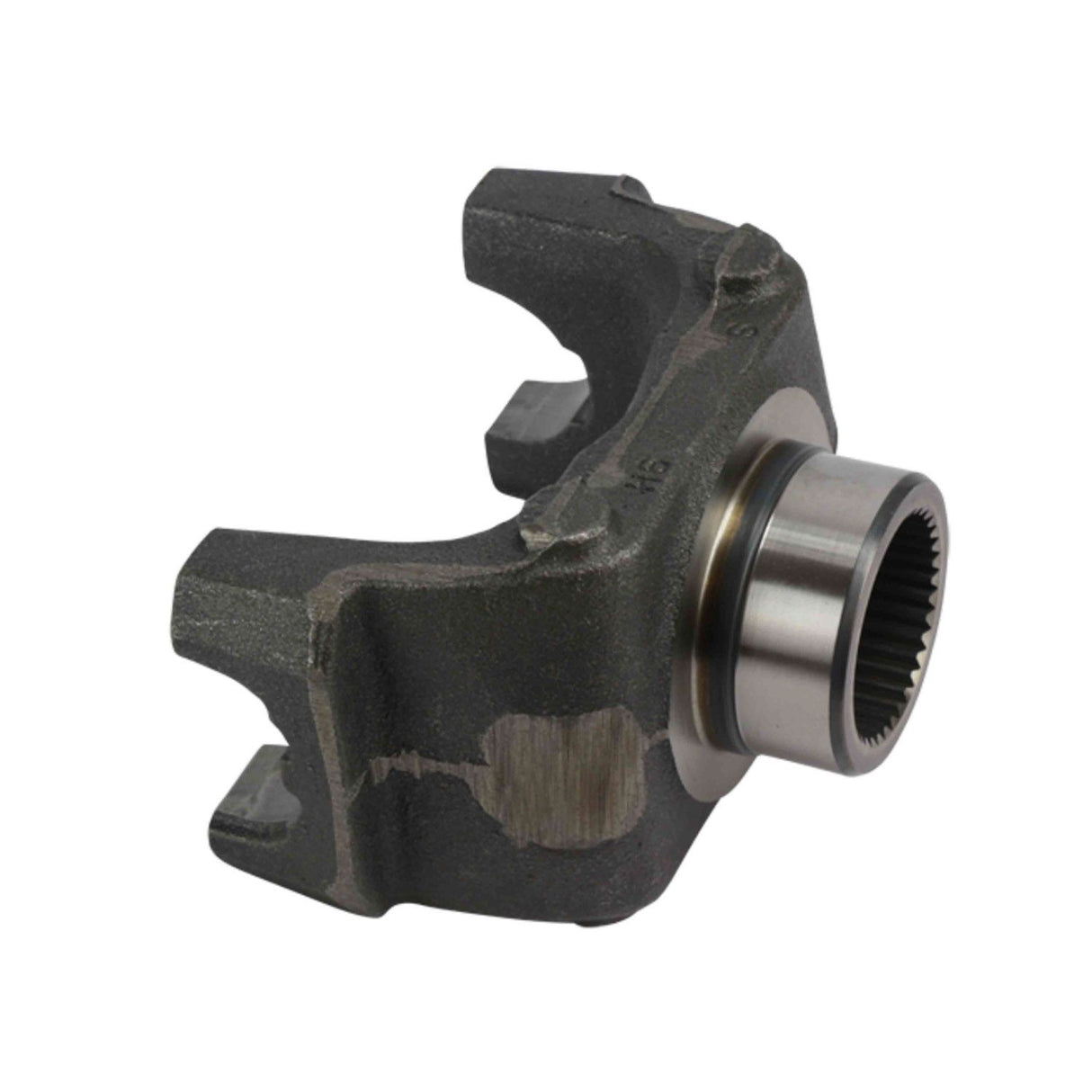

Half Round Style 1760 Series End Yoke 36 Spline | 1689-532-C, 1689532C91, 176N4-1561-1X, 6.3-4-1551-1, 6.3-4-1561-1X, S-A372, S-A615, SA372, SA615, SD-6.3-4-1561-1X
Regular price
$106.69
Unit price
/
Unavailable
Shipping calculated at checkout.
Half Round Style 1760 Series End Yoke 36 Spline | 1689-532-C, 1689532C91, 176N4-1561-1X, 6.3-4-1551-1, 6.3-4-1561-1X, S-A372, S-A615, SA372, SA615, SD-6.3-4-1561-1X is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Half Round Style 1760 Series End Yoke 36 Spline | 1689-532-C, 16895...
Regular price
$106.69
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | Yes |
|---|---|
| Bearing Type | HR |
| Centerline To End | 5.438 |
| Centerline to End | 5.438 Inch |
| Dimensions | Spline Size: 2.364 - 36 Major Diameter: 2.364 Ground Hub Diameter: 3.000 Length Thru Hole: 2.688 Centerline To End: 5.438 Inch |
| Ground Hub Diameter | 3 Inch |
| Includes Slinger/Plug | Yes |
| Length Thru Hole | 2.688 Inch |
| Length Thru Hole | 2.688 Inch |
| Major Diameter | 2.364 Inch |
| Material | Steel |
| Maximum Hub Diameter | 3 Inch |
| Series | 1760 Series (Half Round) |
| Spline Diameter | 2.364 Inch |
| Spline Quantity | 36 |
| Spline Size | 2.364 - 36 Inch |
| Style | HR |
| Type | Splined Hole |
| Yoke Style | HR |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| International | 1689-532-C |
| Automann | 1689532C91 |
| Meritor | 176N4-1561-1X |
| Spicer | 6.3-4-1551-1 |
| Spicer | 6.3-4-1561-1X |
| Genuine Newstar | S-A372 |
| Genuine Newstar | S-A615 |
| Genuine Newstar | SA372 |
| Genuine Newstar | SA615 |
| Genuine Newstar | SD-6.3-4-1561-1X |
