GTP11842

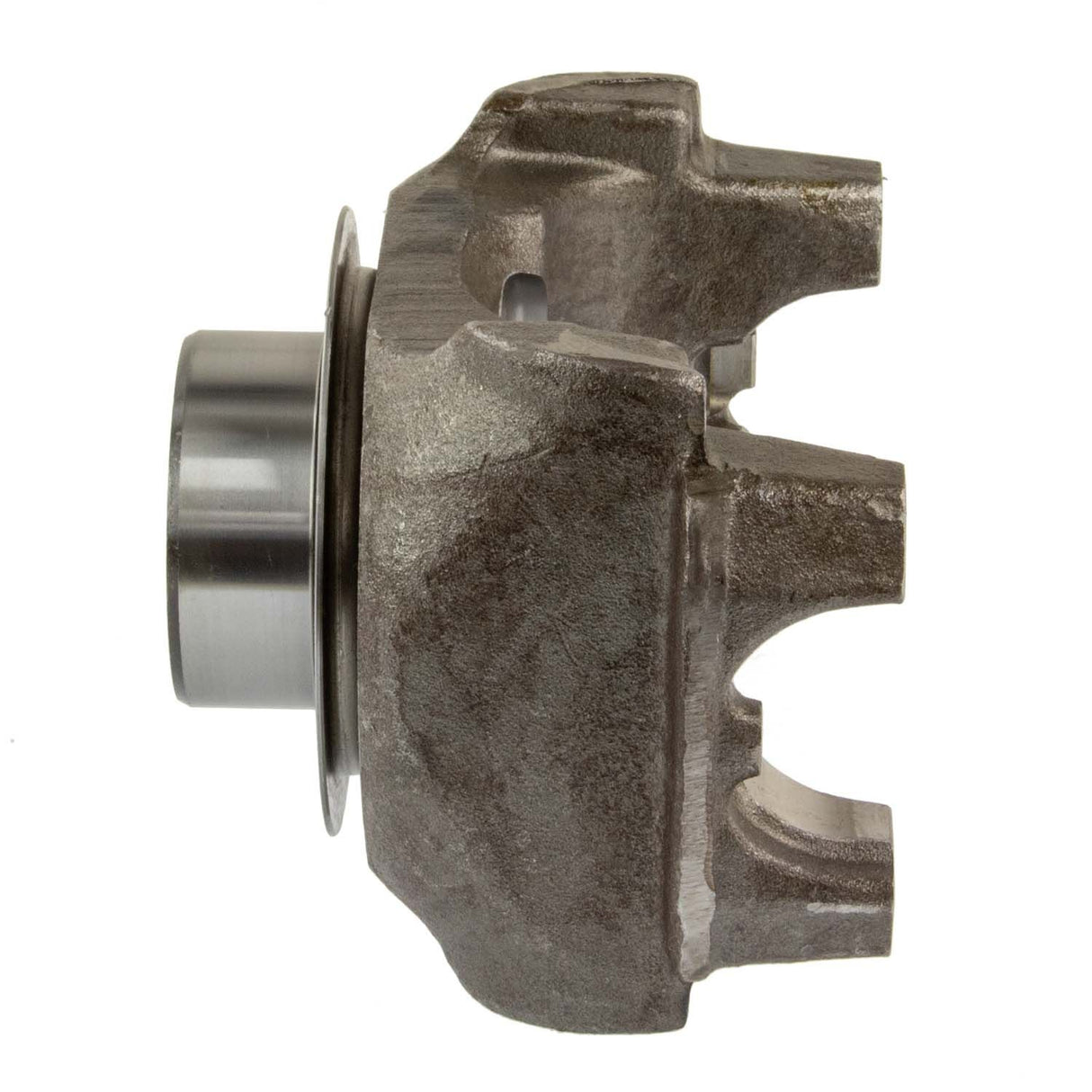

Half Round Style 1760 Series End Yoke 44 Spline | 127618, 127622, 15708544, 176N 4 5221 1X, 176N4-5221-1X, 176TYS36 12A, 176TYS36-12A, 2017786C91, 2039-047-C, 2039047C91, 6.3-4-1411-1, 6.3-4-5221-1R, 63452211X, 8167471, N6.3-4-5221-1X, S-E872
Regular price
$120.84
Unit price
/
Unavailable
Shipping calculated at checkout.
Half Round Style 1760 Series End Yoke 44 Spline | 127618, 127622, 15708544, 176N 4 5221 1X, 176N4-5221-1X, 176TYS36 12A, 176TYS36-12A, 2017786C91, 2039-047-C, 2039047C91, 6.3-4-1411-1, 6.3-4-5221-1R, 63452211X, 8167471, N6.3-4-5221-1X, S-E872 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Half Round Style 1760 Series End Yoke 44 Spline | 127618, 127622, 1...
Regular price
$120.84
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | Yes |
|---|---|
| Bearing Cap Diameter | 1.94 Inch |
| Bearing Type | HR |
| C'bore Depth | 0.236 Inch |
| C-Bore Depth | 0.236 Inch |
| Centerline to End | 5.25 Inch |
| Centerline To End | 5.25 |
| Dimensions | Spline Size: 2.274 - 44 Major Diameter: 2.274 Ground Hub Diameter: 3.000 Length Thru Hole: 2.500 Centerline To End: 5.250 CBore Depth: 0.236 Inch |
| Ground Hub Diameter | 3 Inch |
| Ground Hub Diameter | 3 Inch |
| Includes Slinger/Plug | Yes |
| Joint Angle | 30 Degrees |
| Joint Angle | 26 Degrees |
| Length Thru Hole | 2.5 Inch |
| Length Thru Hole | 2.5 Inch |
| Major Diameter | 2.274 Inch |
| Material | Steel |
| Maximum Hub Diameter | 3 Inch |
| Series | 1760 Series (Half Round) |
| Spline Diameter | 2.274 Inch |
| Spline Length | 2.5 Inch |
| Spline Quantity | 44 |
| Spline Size | 2.274 - 44 Inch |
| Style | HR |
| Type | Splined Hole |
| Universal Joint Series | 1760 |
| Yoke Style | HR |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Eaton | 127618 |
| Eaton | 127622 |
| GMC | 15708544 |
| Meritor | 176N 4 5221 1X |
| Meritor | 176N4-5221-1X |
| Meritor | 176TYS36 12A |
| Meritor | 176TYS36-12A |
| International | 2017786C91 |
| International | 2039-047-C |
| Spicer | 2039047C91 |
| Spicer | 6.3-4-1411-1 |
| World American | 6.3-4-5221-1R |
| Prima Brands | 63452211X |
| Volvo Truck | 8167471 |
| Spicer | N6.3-4-5221-1X |
| Genuine Newstar | S-E872 |
| Genuine Newstar | SD-6.3-4-5221-1X |
| Genuine Newstar | SE872 |
