SKU:
GTP06090

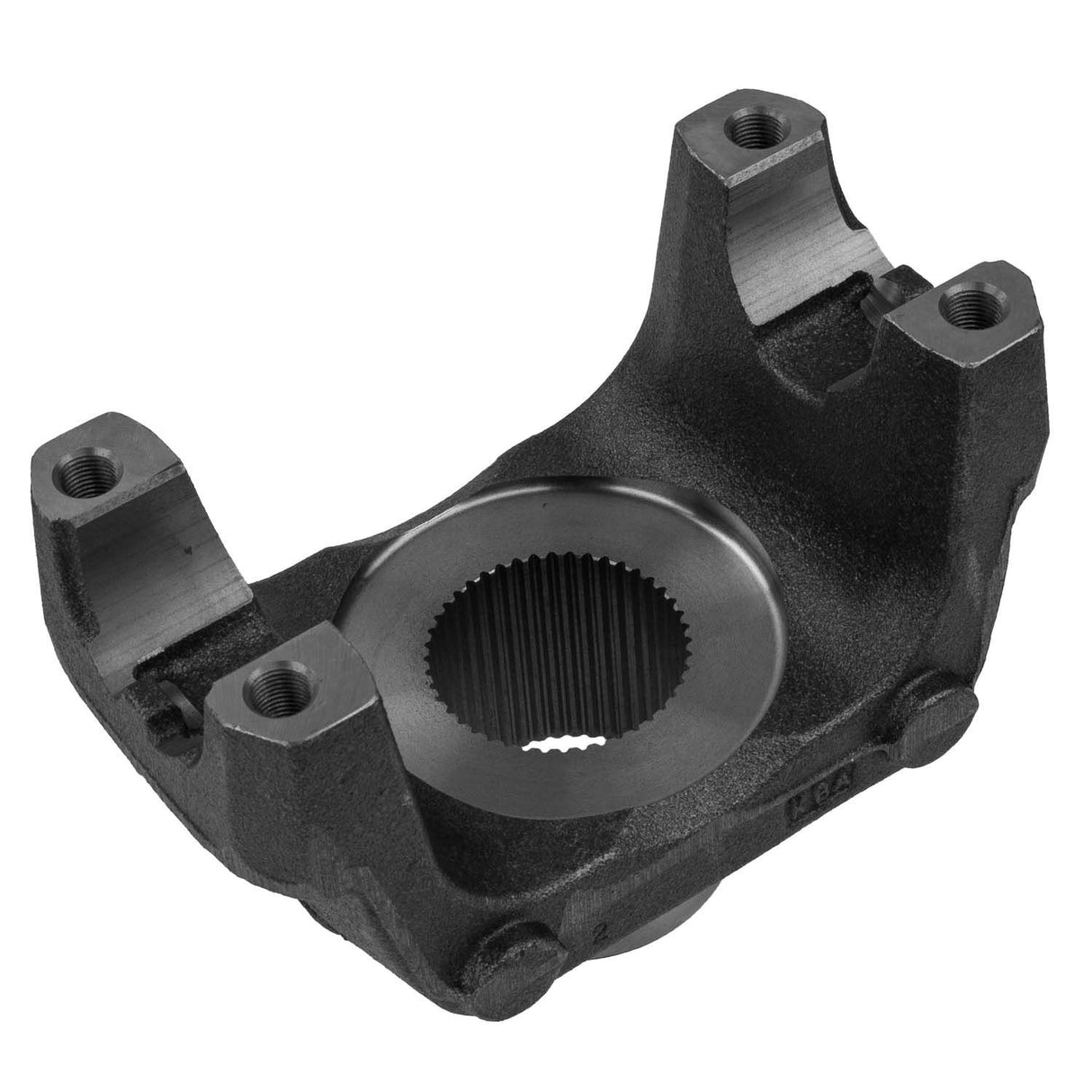

Half Round Style 1760 Series End Yoke 44 Spline | 1657343C91, 176N4-331-1X, 6.3-4-1421-1R, 6.3-4-331-1R, 6.3-4-331-1X, 63414211R, 6343311X, S-B428, SB428, SD-6.3-4-331-1X
Regular price
$125.75
Unit price
/
Unavailable
Shipping calculated at checkout.
Half Round Style 1760 Series End Yoke 44 Spline | 1657343C91, 176N4-331-1X, 6.3-4-1421-1R, 6.3-4-331-1R, 6.3-4-331-1X, 63414211R, 6343311X, S-B428, SB428, SD-6.3-4-331-1X is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Half Round Style 1760 Series End Yoke 44 Spline | 1657343C91, 176N4...
Regular price
$125.75
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Across Ears | 7.09 Inch |
|---|---|
| Assembly | Yes |
| Bearing Cap Diameter | 1.94 Inch |
| Bearing Type | HR |
| Centerline To End | 5.25 |
| Centerline to End | 5.25 Inch |
| Dimensions | Spline Size: 2.274 - 44 Major Diameter: 2.274 Ground Hub Diameter: 2.938 Length Thru Hole: 2.500 Centerline To End: 5.250 Inch |
| Ground Hub Diameter | 2.938 Inch |
| Ground Hub Diameter | 3 Inch |
| Includes Slinger/Plug | Yes |
| Joint Angle | 30 Degrees |
| Joint Angle | 26 Degrees |
| Length Thru Hole | 2.5 Inch |
| Length Thru Hole | 2.5 Inch |
| Major Diameter | 2.274 Inch |
| Material | Steel |
| Maximum Hub Diameter | 2.938 Inch |
| Series | 1760 Series (Half Round) |
| Spline Diameter | 2.274 Inch |
| Spline Length | 2.5 Inch |
| Spline Quantity | 44 |
| Spline Size | 2.274 - 44 Inch |
| Style | HR |
| Type | Splined Hole |
| Universal Joint Series | 1760 |
| Yoke Style | HR |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| International | 1657343C91 |
| Meritor | 176N4-331-1X |
| World American | 6.3-4-1421-1R |
| World American | 6.3-4-331-1R |
| Spicer | 6.3-4-331-1X |
| World American | 63414211R |
| Prima Brands | 6343311X |
| Genuine Newstar | S-B428 |
| Genuine Newstar | SB428 |
| Genuine Newstar | SD-6.3-4-331-1X |
