GTP06095

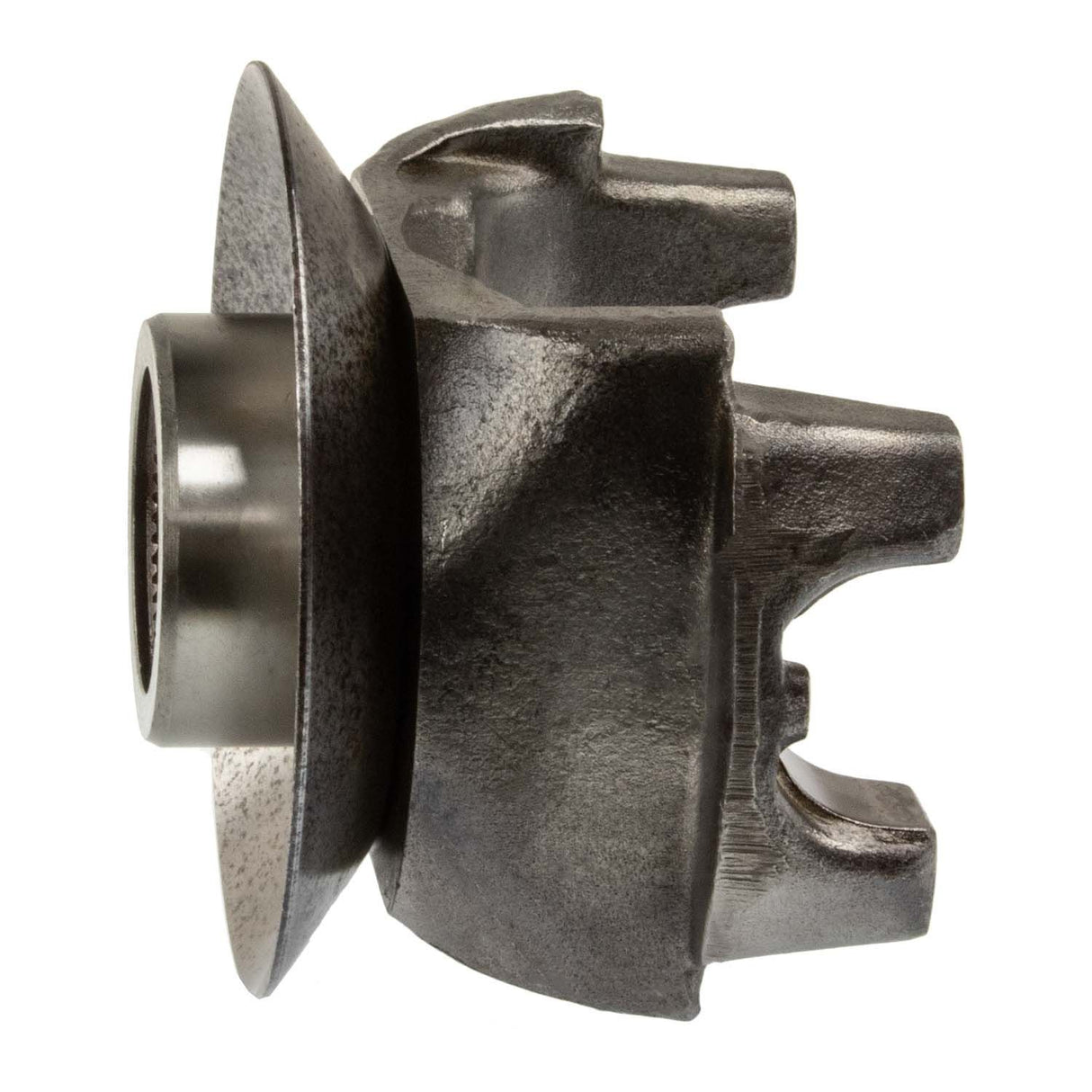

Half Round Style 1760 Series End Yoke 46 Spline | 1616-215-C, 1616215C, 176MU51P27, 176N 4 1041 1X, 176N4-1041-1X, 176N410411X, 176TYS38 27A, 176TYS38-27A, 176TYS38-27AS, 3595-280-C, 6.3-4-1031-1, 6.3-4-1031-1R, 6.3-4-1041-1R, 6.3-4-1041-1X
Regular price
$126.21
Unit price
/
Unavailable
Shipping calculated at checkout.
Half Round Style 1760 Series End Yoke 46 Spline | 1616-215-C, 1616215C, 176MU51P27, 176N 4 1041 1X, 176N4-1041-1X, 176N410411X, 176TYS38 27A, 176TYS38-27A, 176TYS38-27AS, 3595-280-C, 6.3-4-1031-1, 6.3-4-1031-1R, 6.3-4-1041-1R, 6.3-4-1041-1X is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Half Round Style 1760 Series End Yoke 46 Spline | 1616-215-C, 16162...
Regular price
$126.21
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | Yes |
|---|---|
| Bearing Type | HR |
| C'bore Depth | 0.14 Inch |
| C-Bore Depth | 0.14 Inch |
| Centerline to End | 5.062 Inch |
| Centerline To End | 5.062 |
| Dimensions | Spline Size: 2.390 - 46 Major Diameter: 2.390 Ground Hub Diameter: 3.250 Length Thru Hole: 2.328 Centerline To End: 5.062 CBore Depth: 0.140 Inch |
| Ground Hub Diameter | 3.25 Inch |
| Includes Slinger/Plug | Yes |
| Involute Spline | Yes |
| Length Thru Hole | 2.328 Inch |
| Length Thru Hole | 2.328 Inch |
| Major Diameter | 2.39 Inch |
| Material | Steel |
| Maximum Hub Diameter | 3.25 Inch |
| Outside Yoke Dimension | 7.094 Inch |
| Series | 1760 Series (Half Round) |
| Spline Quantity | 46 |
| Spline Size | 2.390 - 46 Inch |
| Style | HR |
| Type | Splined Hole |
| U Joint Cap Diameter | 2.39 Inch |
| Yoke Bearing Dimension | 1.938 Inch |
| Yoke Style | HR |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| International | 1616-215-C |
| International | 1616215C |
| Mack | 176MU51P27 |
| Meritor | 176N 4 1041 1X |
| Spicer | 176N4-1041-1X |
| Meritor | 176N410411X |
| Meritor | 176TYS38 27A |
| Meritor | 176TYS38-27A |
| Meritor | 176TYS38-27AS |
| International | 3595-280-C |
| Spicer | 6.3-4-1031-1 |
| World American | 6.3-4-1031-1R |
| World American | 6.3-4-1041-1R |
| Spicer | 6.3-4-1041-1X |
| Spicer | 6.3-4-1041-1XN |
| Spicer | 6.3-4-1041X |
| Midwest Truck & Auto Parts Inc | 63410311R |
| Prima Brands | 63410411X |
| World American | 63410411XR |
| Spicer | 6341041X |
| Automann | 8235176N410411X |
| Automann | 8235176TYS3827A |
| Meritor | A-3260-P-1264 |
| Neapco OE Series | N6.3-4-1041-1X |
| Spicer | PAC6.3-4-1041-1X |
| Genuine Newstar | S-B429 |
| Genuine Newstar | SB429 |
| Genuine Newstar | SD-6.3-4-1041-1X |
| Freightliner | SP6.3-4-1041-1X |
| Freightliner | SP6.3410411X |
| Freightliner | TDA 176N4 1041 1X |
