SKU:
GTP06096

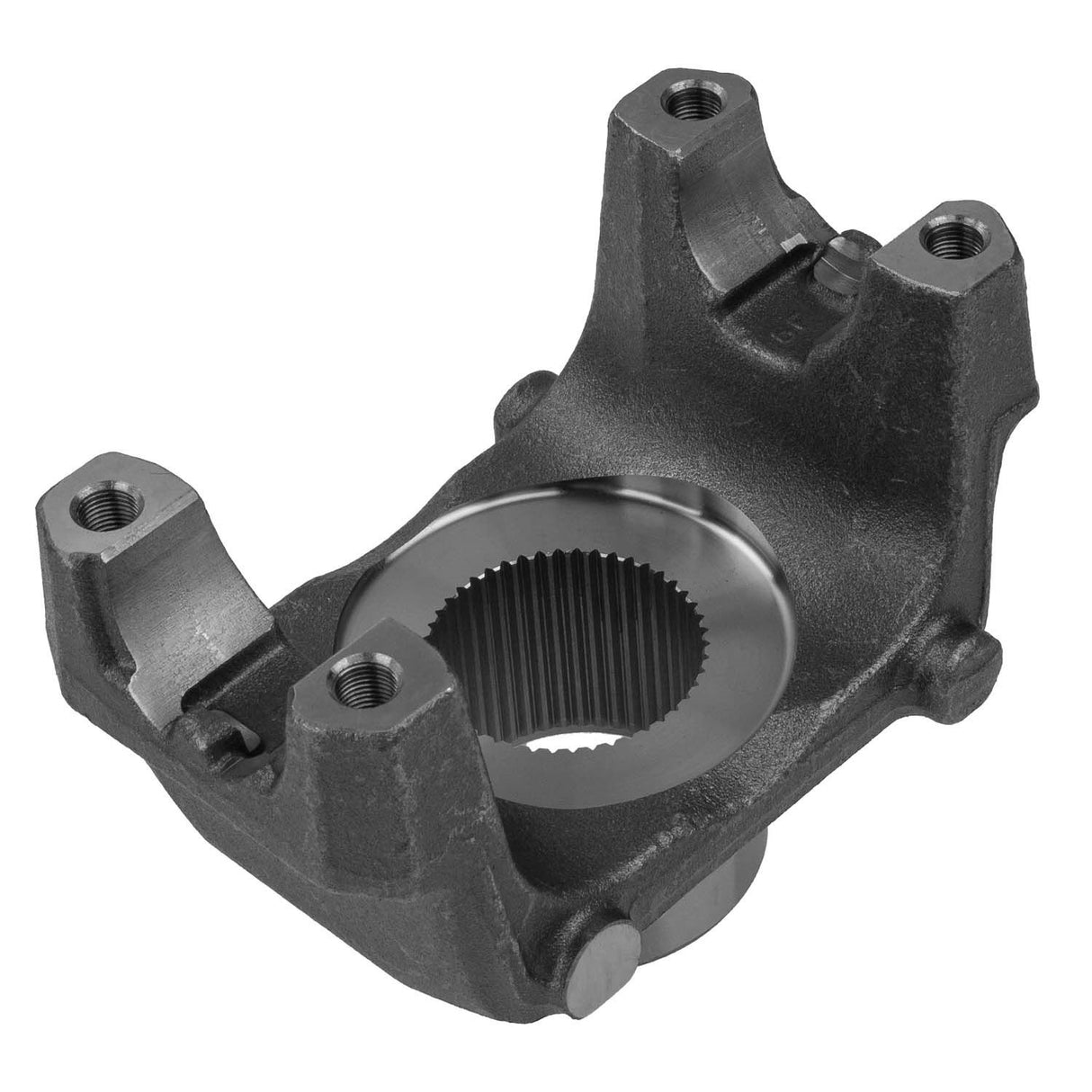

Half Round Style 1760 Series End Yoke 46 Spline | 1616215C91, 176MU51P27, 176N410411X, 176TYS38-27A, 176TYS38-27AS, 6.3-4-1041-1X, 6.3-4-1041-1XR, 6.3-4-1041X, 753.63410311, N6.3-4-1041-1X, S-47219, S47219
Regular price
$116.16
Unit price
/
Unavailable
Shipping calculated at checkout.
Half Round Style 1760 Series End Yoke 46 Spline | 1616215C91, 176MU51P27, 176N410411X, 176TYS38-27A, 176TYS38-27AS, 6.3-4-1041-1X, 6.3-4-1041-1XR, 6.3-4-1041X, 753.63410311, N6.3-4-1041-1X, S-47219, S47219 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Half Round Style 1760 Series End Yoke 46 Spline | 1616215C91, 176MU...
Regular price
$116.16
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | Yes |
|---|---|
| C-Bore Depth | 0.14 Inch |
| Centerline to End | 5.062 Inch |
| Includes Slinger/Plug | Yes |
| Involute Spline | Yes |
| Length Thru Hole | 2.328 Inch |
| Material | Steel |
| Maximum Hub Diameter | 3.25 Inch |
| Outside Yoke Dimension | 7.094 Inch |
| Series | 1760 Series (Half Round) |
| Spline Quantity | 46 |
| Type | Splined Hole |
| U Joint Cap Diameter | 2.39 Inch |
| Yoke Bearing Dimension | 1.938 Inch |
| Yoke Style | HR |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| International | 1616215C91 |
| Mack | 176MU51P27 |
| Meritor | 176N410411X |
| Meritor | 176TYS38-27A |
| Meritor | 176TYS38-27AS |
| Spicer | 6.3-4-1041-1X |
| World American | 6.3-4-1041-1XR |
| Spicer | 6.3-4-1041X |
| Automann | 753.63410311 |
| Neapco OE Series | N6.3-4-1041-1X |
| Genuine Newstar | S-47219 |
| Genuine Newstar | S47219 |
