SKU:
GTP11789

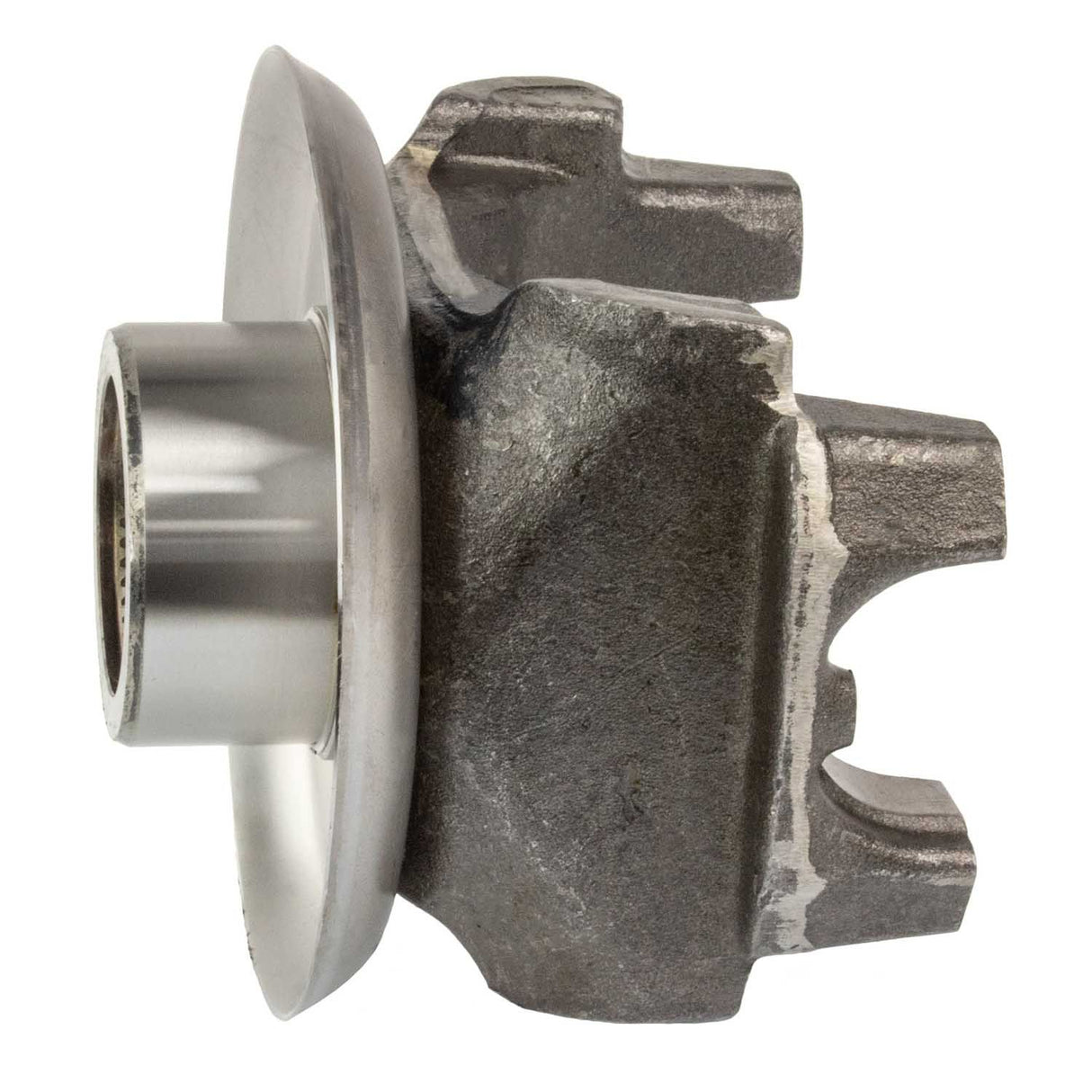

Half Round Style 1760 Series End Yoke 46 Spline | 1657317C91, 176MU51P31, 2104-6348611X, 6.3-4-861-1, 6.3-4-861-1R, 6.3-4-861-1X, 8071829, S-B925, SB925, SD-6.3-4-861-1X
Regular price
$126.99
Unit price
/
Unavailable
Shipping calculated at checkout.
Half Round Style 1760 Series End Yoke 46 Spline | 1657317C91, 176MU51P31, 2104-6348611X, 6.3-4-861-1, 6.3-4-861-1R, 6.3-4-861-1X, 8071829, S-B925, SB925, SD-6.3-4-861-1X is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Half Round Style 1760 Series End Yoke 46 Spline | 1657317C91, 176MU...
Regular price
$126.99
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | Yes |
|---|---|
| Bearing Type | HR |
| C'bore Depth | 0.14 Inch |
| C-Bore Depth | 0.14 Inch |
| Centerline To End | 5.625 |
| Centerline to End | 5.625 Inch |
| Dimensions | Spline Size: 2.374 - 46 Major Diameter: 2.374 Ground Hub Diameter: 3.250 Length Thru Hole: 2.875 Centerline To End: 5.625 CBore Depth: 0.140 Inch |
| Ground Hub Diameter | 3.25 Inch |
| Includes Slinger/Plug | Yes |
| Involute Spline | No |
| Length Thru Hole | 2.875 Inch |
| Length Thru Hole | 2.875 Inch |
| Major Diameter | 2.374 Inch |
| Material | Steel |
| Maximum Hub Diameter | 3.25 Inch |
| Outside Yoke Dimension | 7.094 Inch |
| Series | 1760 Series (Half Round) |
| Spline Diameter | 2.374 Inch |
| Spline Quantity | 46 |
| Spline Size | 2.374 - 46 Inch |
| Style | HR |
| Type | Splined Hole |
| Yoke Bearing Dimension | 1.938 Inch |
| Yoke Style | HR |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| International | 1657317C91 |
| Mack | 176MU51P31 |
| Mack | 2104-6348611X |
| Spicer | 6.3-4-861-1 |
| World American | 6.3-4-861-1R |
| Spicer | 6.3-4-861-1X |
| Volvo Truck | 8071829 |
| Genuine Newstar | S-B925 |
| Genuine Newstar | SB925 |
| Genuine Newstar | SD-6.3-4-861-1X |
