SKU:
GTP06086

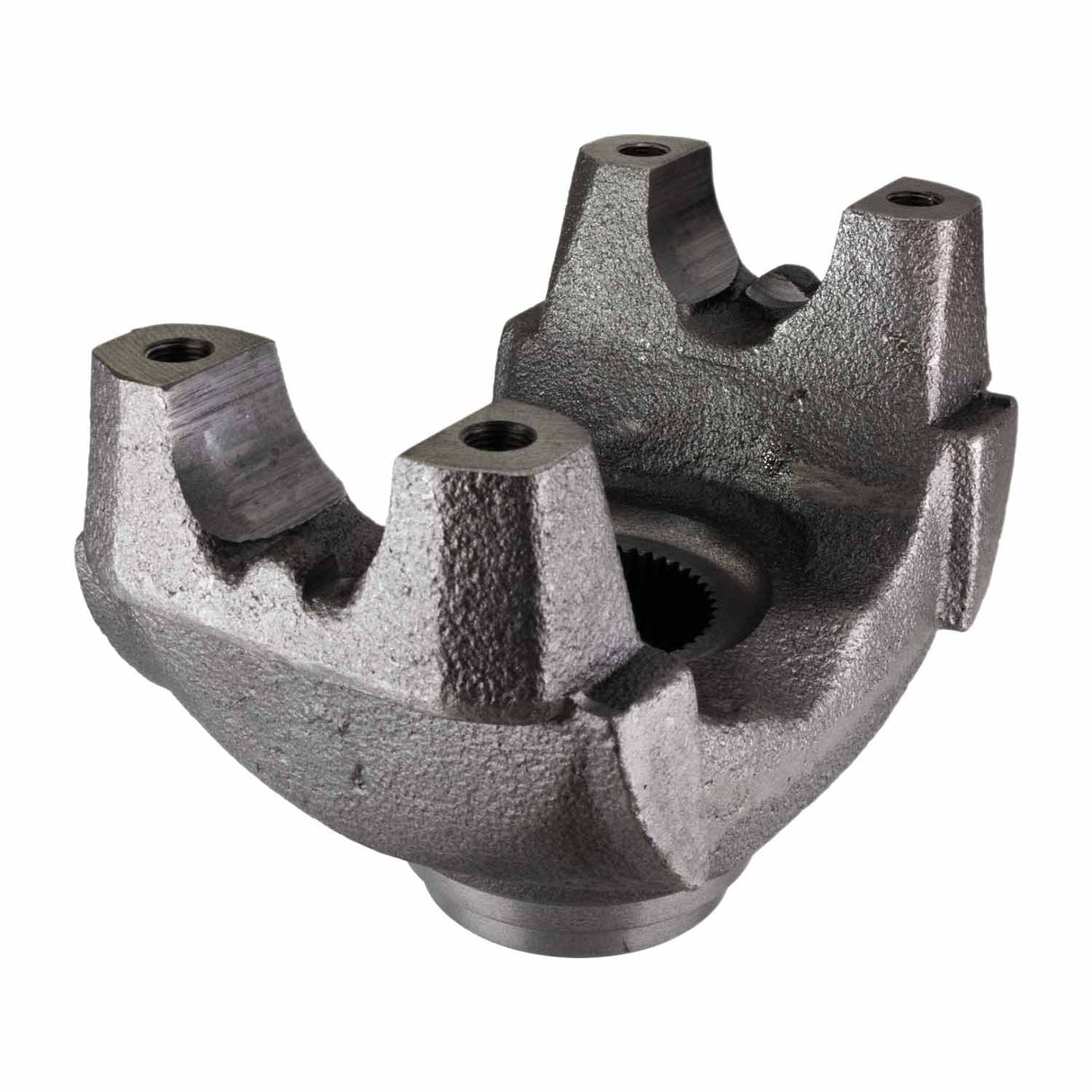

Half Round Style 1760 Series End Yoke 46 Spline | 176MU51P35, 176N4-821-1, 176N4-821-1X, 30010-3208, 6.3-4-821-1, 6.3-4-821-1X, 6348211, 6348211R, 8235-176N48211, DAN6.3-4-821-1, N6.3-4-821-1, NEPN6.3-4-821-1, PAC6.3-4-821-1X, S-A613, SA613
Regular price
$112.06
Unit price
/
Unavailable
Shipping calculated at checkout.
Half Round Style 1760 Series End Yoke 46 Spline | 176MU51P35, 176N4-821-1, 176N4-821-1X, 30010-3208, 6.3-4-821-1, 6.3-4-821-1X, 6348211, 6348211R, 8235-176N48211, DAN6.3-4-821-1, N6.3-4-821-1, NEPN6.3-4-821-1, PAC6.3-4-821-1X, S-A613, SA613 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Half Round Style 1760 Series End Yoke 46 Spline | 176MU51P35, 176N4...
Regular price
$112.06
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | No |
|---|---|
| Bearing Type | HR |
| Centerline To End | 5.5 |
| Centerline to End | 5.5 Inch |
| Dimensions | Spline Size: 2.390 - 46 Major Diameter: 2.390 Ground Hub Diameter: 2.875 Length Thru Hole: 2.750 Centerline To End: 5.500 Inch |
| Ground Hub Diameter | 2.875 Inch |
| Includes Slinger/Plug | No |
| Joint Angle | 30 Degrees |
| Length Thru Hole | 2.75 Inch |
| Length Thru Hole | 2.75 Inch |
| Major Diameter | 2.39 Inch |
| Material | Steel |
| Maximum Hub Diameter | 2.875 Inch |
| Outside Yoke Dimension | 7.094 Inch |
| Series | 1760 Series (Half Round) |
| Spline Diameter | 2.39 Inch |
| Spline Quantity | 46 |
| Spline Size | 2.390 - 46 Inch |
| Style | HR |
| Type | Splined Hole |
| U Joint Cap Diameter | 2.39 Inch |
| Yoke Bearing Dimension | 1.938 Inch |
| Yoke Style | HR |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Meritor | 176MU51P35 |
| Meritor | 176N4-821-1 |
| Meritor | 176N4-821-1X |
| Volvo Truck | 30010-3208 |
| Spicer | 6.3-4-821-1 |
| Spicer | 6.3-4-821-1X |
| Spicer | 6348211 |
| World American | 6348211R |
| Spicer | 8235-176N48211 |
| Spicer | DAN6.3-4-821-1 |
| Neapco OE Series | N6.3-4-821-1 |
| Automann | NEPN6.3-4-821-1 |
| Spicer | PAC6.3-4-821-1X |
| Genuine Newstar | S-A613 |
| Genuine Newstar | SA613 |
| Genuine Newstar | SD-6.3-4-821-1X |
| Spicer | SP 6.3 4 821 1 |
| Freightliner | SP6348211X |
| Freightliner | TDA 176N48211 |
