SKU:
GTP06071

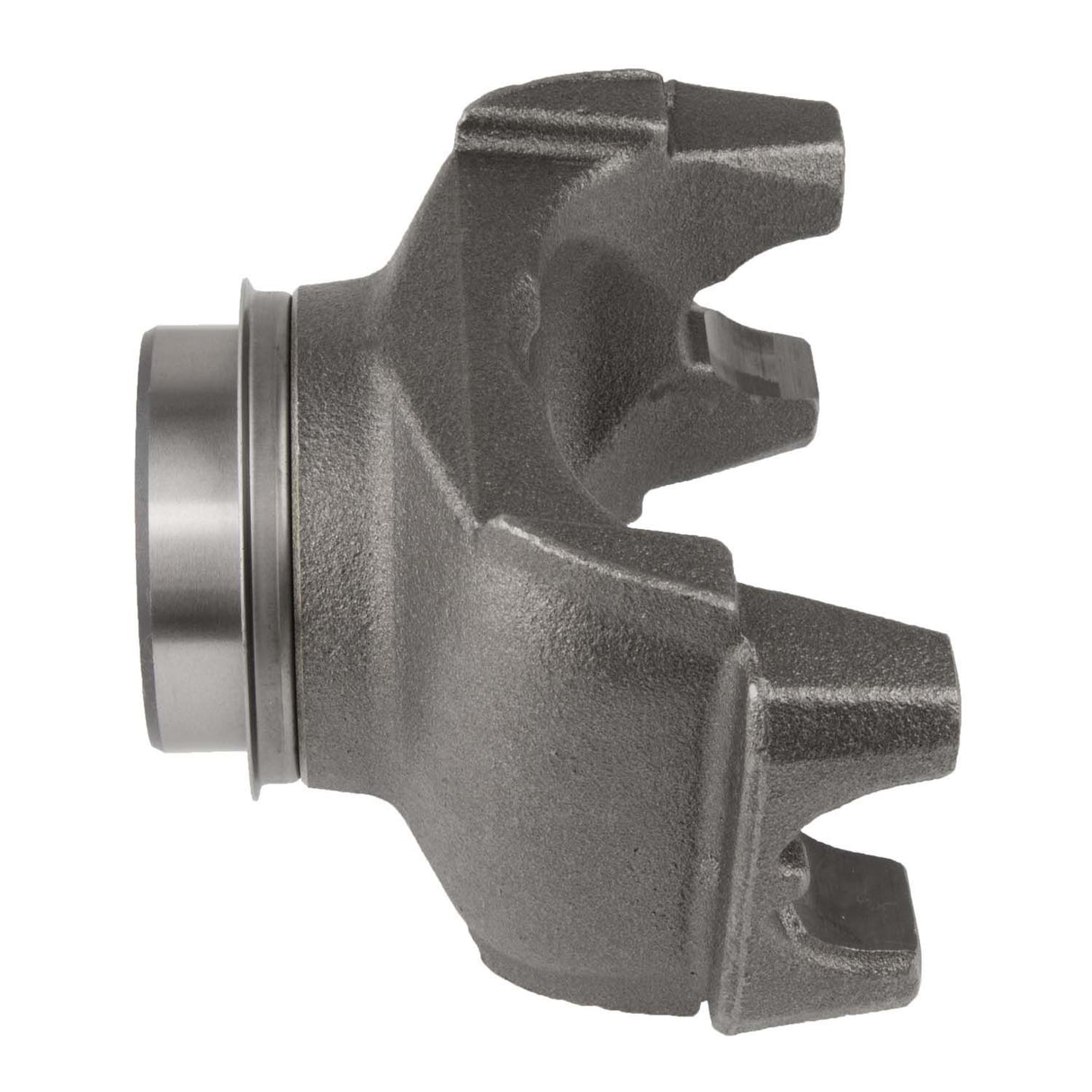

Half Round Style 1810 Series End Yoke 10 Spline | 1657-281-C, 1657281C, 1657281C91, 181-MU-51-P32, 18N4-3561-1X, 18TYS44-4A, 6.5-4-3491-1X, 6.5-4-3561-1R, 6.5-4-3561-1X, 6.5-4-3561-1XN, 65435611X, 6543561XR, A-5413, FUL A5413, N6.5-4-3561-1X
Regular price
$95.85
Unit price
/
Unavailable
Shipping calculated at checkout.
Half Round Style 1810 Series End Yoke 10 Spline | 1657-281-C, 1657281C, 1657281C91, 181-MU-51-P32, 18N4-3561-1X, 18TYS44-4A, 6.5-4-3491-1X, 6.5-4-3561-1R, 6.5-4-3561-1X, 6.5-4-3561-1XN, 65435611X, 6543561XR, A-5413, FUL A5413, N6.5-4-3561-1X is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Half Round Style 1810 Series End Yoke 10 Spline | 1657-281-C, 16572...
Regular price
$95.85
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | Yes |
|---|---|
| Bearing Cap Diameter | 1.94 Inch |
| Bearing Type | HR |
| Centerline To End | 6.062 |
| Centerline to End | 6.062 Inch |
| Dimensions | Spline Size: 2.750 - 10 Major Diameter: 2.750 Ground Hub Diameter: 3.750 Length Thru Hole: 3.000 Centerline To End: 6.062 Inch |
| Ground Hub Diameter | 3.75 Inch |
| Ground Hub Diameter | 3.75 Inch |
| Includes Slinger/Plug | Yes |
| Involute Spline | No |
| Joint Angle | 34 Degrees |
| Length Thru Hole | 3 Inch |
| Length Thru Hole | 3 Inch |
| Major Diameter | 2.75 Inch |
| Material | Steel |
| Maximum Hub Diameter | 3.75 Inch |
| Outside Yoke Dimension | 7.643 Inch |
| Series | 1810 Series (Half Round) |
| Spline Diameter | 2.75 Inch |
| Spline Length | 3 Inch |
| Spline Quantity | 10 |
| Spline Size | 2.750 - 10 Inch |
| Style | HR |
| Type | Splined Hole |
| Universal Joint Series | 1810 |
| Yoke Bearing Dimension | 1.938 Inch |
| Yoke Style | HR |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| International | 1657-281-C |
| International | 1657281C |
| International | 1657281C91 |
| Mack | 181-MU-51-P32 |
| Meritor | 18N4-3561-1X |
| Meritor | 18TYS44-4A |
| Spicer | 6.5-4-3491-1X |
| World American | 6.5-4-3561-1R |
| Spicer | 6.5-4-3561-1X |
| Spicer | 6.5-4-3561-1XN |
| Prima Brands | 65435611X |
| World American | 6543561XR |
| Fuller- Transmissions | A-5413 |
| Freightliner | FUL A5413 |
| Spicer | N6.5-4-3561-1X |
| Automann | NEPN6.5-4-3561-1X |
| Spicer | PAC6.5-4-3561-1X |
| Genuine Newstar | S-B445 |
| Genuine Newstar | SB445 |
| Genuine Newstar | SD-6.5-4-3561-1X |
| Freightliner | TDA 18N4 3561 1X |
