SKU:
GTP11714

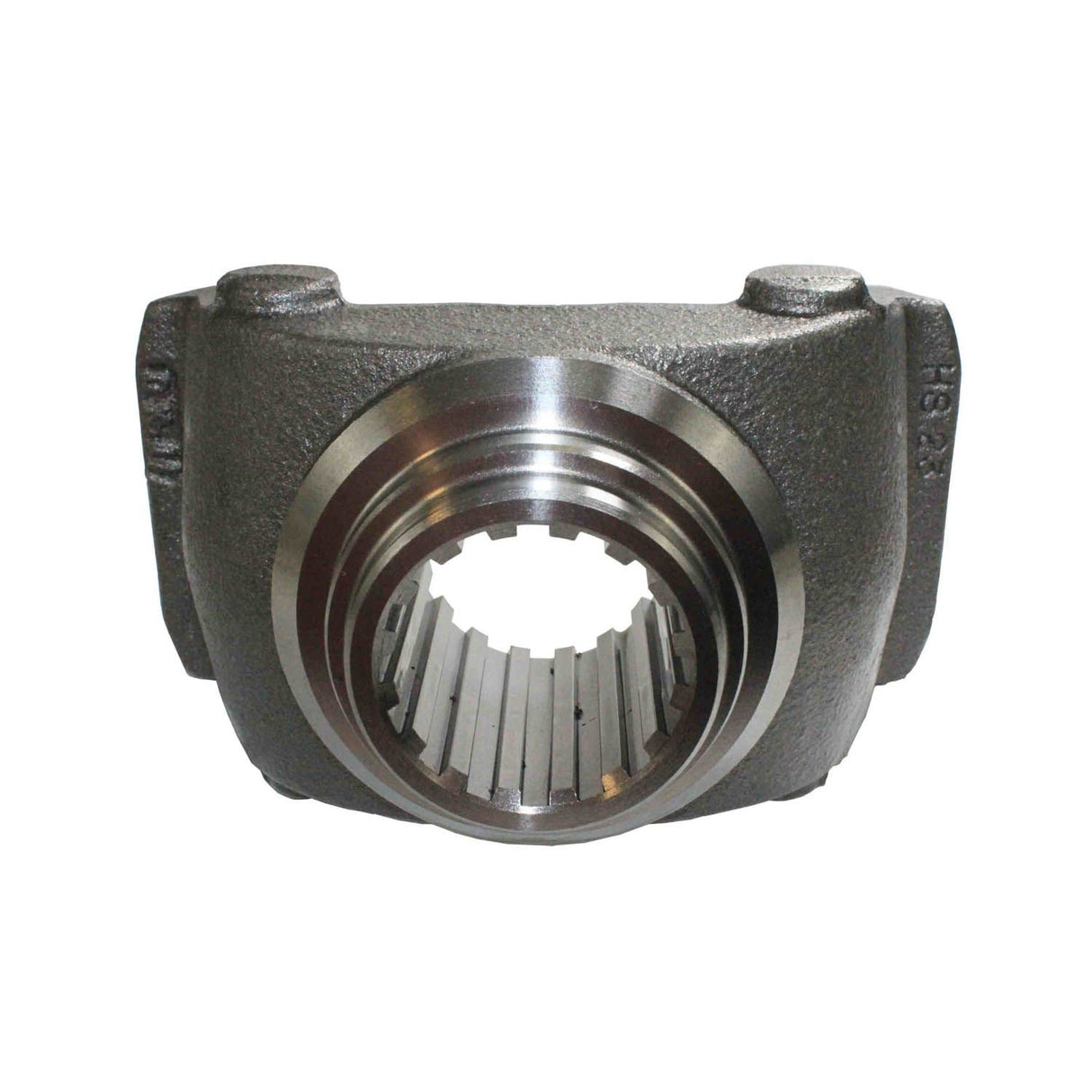

Half Round Style 1810 Series End Yoke 16 Spline | 18N4-1891-1, 18TYSC38-3, 6.5-4-2531-1X, 65-4-1891-1, 65418911, N6.5-4-1891-1, NEPN6.5-4-1891-1, S-C483, S-C485, SC483, SC485, SD-6.5-4-2531-1X, TDA 18N4 1891 1
Regular price
$174.44
Unit price
/
Unavailable
Shipping calculated at checkout.
Half Round Style 1810 Series End Yoke 16 Spline | 18N4-1891-1, 18TYSC38-3, 6.5-4-2531-1X, 65-4-1891-1, 65418911, N6.5-4-1891-1, NEPN6.5-4-1891-1, S-C483, S-C485, SC483, SC485, SD-6.5-4-2531-1X, TDA 18N4 1891 1 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Half Round Style 1810 Series End Yoke 16 Spline | 18N4-1891-1, 18TY...
Regular price
$174.44
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | No |
|---|---|
| Bearing Type | HR |
| Centerline To End | 5.5 |
| Centerline to End | 5.5 Inch |
| Dimensions | Spline Size: 2.350 - 16 Major Diameter: 2.350 Ground Hub Diameter: 2.875 Length Thru Hole: 2.750 Centerline To End: 5.500 Inch |
| Ground Hub Diameter | 2.875 Inch |
| Includes Slinger/Plug | No |
| Involute Spline | No |
| Length Thru Hole | 2.75 Inch |
| Length Thru Hole | 2.75 Inch |
| Major Diameter | 2.35 Inch |
| Material | Steel |
| Maximum Hub Diameter | 2.875 Inch |
| Outside Yoke Dimension | 7.643 Inch |
| Series | 1810 Series (Half Round) |
| Spline Diameter | 2.344 Inch |
| Spline Quantity | 16 |
| Spline Size | 2.350 - 16 Inch |
| Style | HR |
| Type | Splined Hole |
| Yoke Bearing Dimension | 1.938 Inch |
| Yoke Style | HR |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Meritor | 18N4-1891-1 |
| Meritor | 18TYSC38-3 |
| Spicer | 6.5-4-2531-1X |
| Automann | 65-4-1891-1 |
| Spicer | 65418911 |
| Neapco OE Series | N6.5-4-1891-1 |
| Automann | NEPN6.5-4-1891-1 |
| Genuine Newstar | S-C483 |
| Genuine Newstar | S-C485 |
| Genuine Newstar | SC483 |
| Genuine Newstar | SC485 |
| Genuine Newstar | SD-6.5-4-2531-1X |
| Freightliner | TDA 18N4 1891 1 |
