SKU:
GTP11822

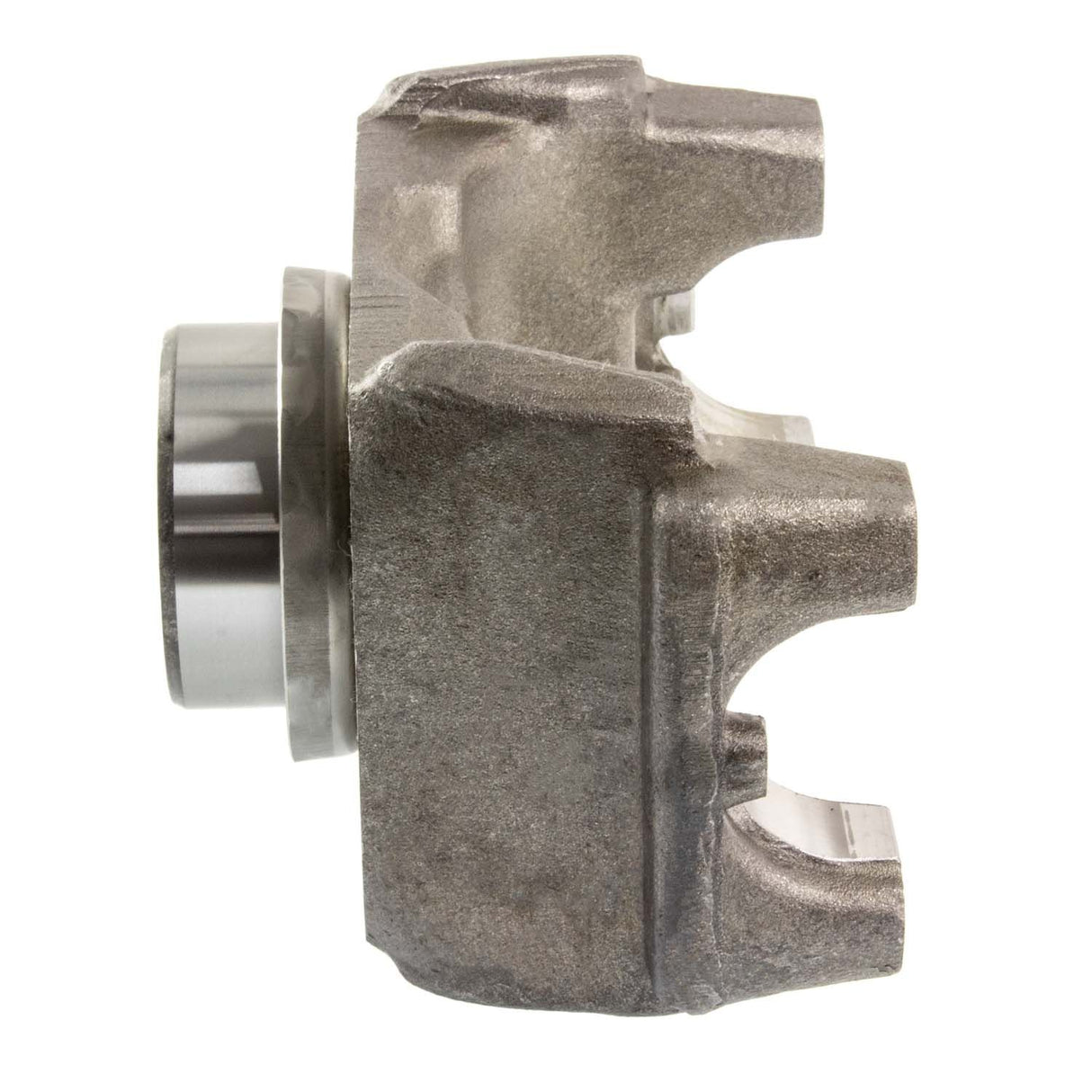

Half Round Style 1810 Series End Yoke 32 Spline | 1689-539-C, 1689539C, 1689539C91, 18N4-4571X, 6.5-4-3981-1X, 6.5-4-4451-1, 6.5-4-4461-1, 6.5-4-4461-1X, S-10180, S10180, SD-6.5-4-4461-1X, SP6.5444611X
Regular price
$140.48
Unit price
/
Unavailable
Shipping calculated at checkout.
Half Round Style 1810 Series End Yoke 32 Spline | 1689-539-C, 1689539C, 1689539C91, 18N4-4571X, 6.5-4-3981-1X, 6.5-4-4451-1, 6.5-4-4461-1, 6.5-4-4461-1X, S-10180, S10180, SD-6.5-4-4461-1X, SP6.5444611X is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Half Round Style 1810 Series End Yoke 32 Spline | 1689-539-C, 16895...
Regular price
$140.48
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | Yes |
|---|---|
| Bearing Type | HR |
| C'bore Depth | 0.424 Inch |
| C-Bore Depth | 0.424 Inch |
| Centerline to End | 5 Inch |
| Centerline To End | 5 |
| Dimensions | Spline Size: 2.114 - 32 Major Diameter: 2.114 Ground Hub Diameter: 3.000 Length Thru Hole: 2.250 Centerline To End: 5.000 CBore Depth: 0.424 Inch |
| Ground Hub Diameter | 3 Inch |
| Includes Slinger/Plug | Yes |
| Involute Spline | Yes |
| Length Thru Hole | 2.25 Inch |
| Length Thru Hole | 2.25 Inch |
| Major Diameter | 2.114 Inch |
| Material | Steel |
| Maximum Hub Diameter | 3 Inch |
| Outside Yoke Dimension | 7.643 Inch |
| Series | 1810 Series (Half Round) |
| Spline Diameter | 2.114 Inch |
| Spline Quantity | 32 |
| Spline Size | 2.114 - 32 Inch |
| Style | HR |
| Type | Splined Hole |
| Yoke Bearing Dimension | 1.938 Inch |
| Yoke Style | HR |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| International | 1689-539-C |
| International | 1689539C |
| International | 1689539C91 |
| Meritor | 18N4-4571X |
| Spicer | 6.5-4-3981-1X |
| Spicer | 6.5-4-4451-1 |
| Spicer | 6.5-4-4461-1 |
| Spicer | 6.5-4-4461-1X |
| Genuine Newstar | S-10180 |
| Genuine Newstar | S10180 |
| Genuine Newstar | SD-6.5-4-4461-1X |
| Freightliner | SP6.5444611X |
