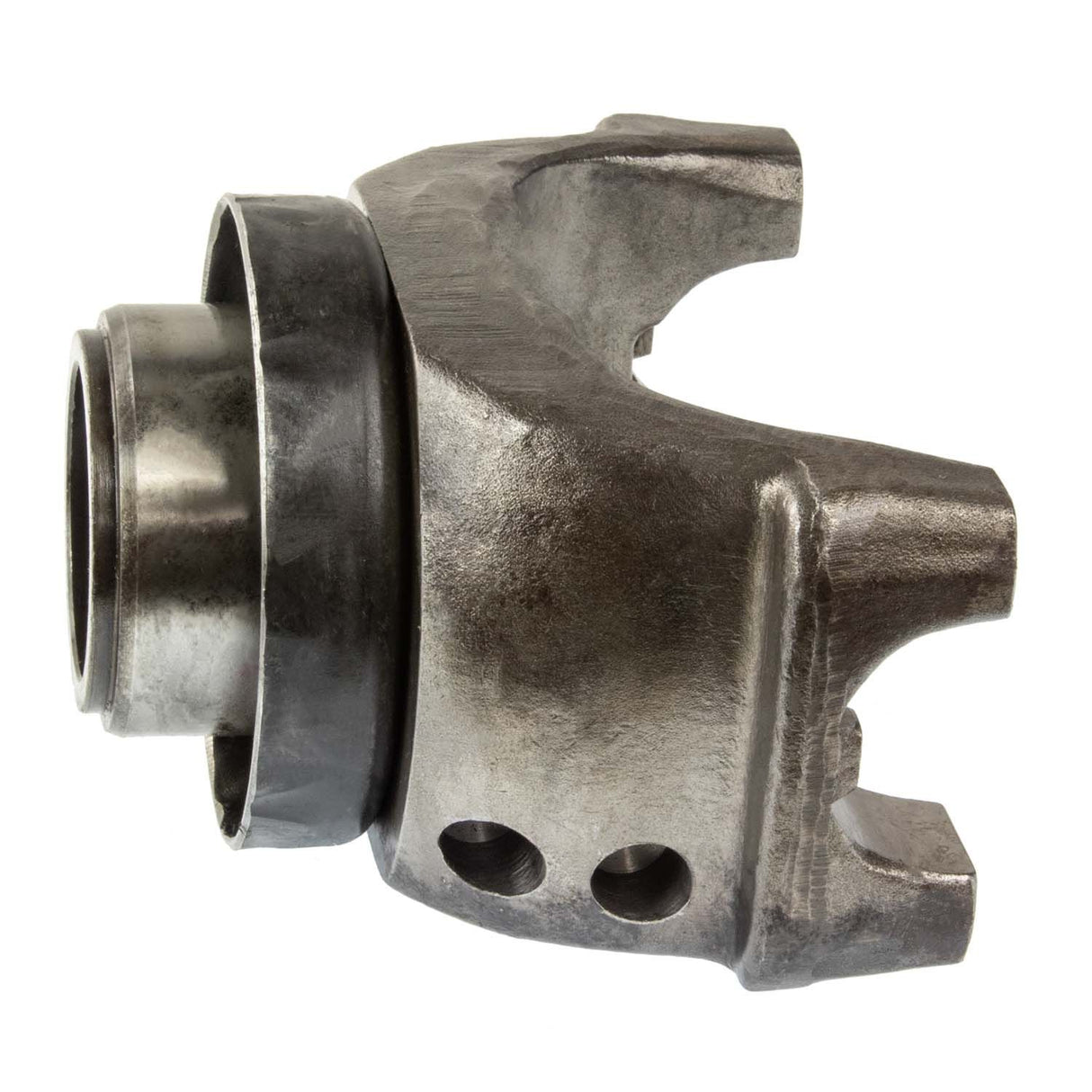

Half Round Style 1810 Series End Yoke 46 Spline | 126690, 181MU51P23, 18N39211X, 18N4-3921-1X, 2039-773-C, 2104-65439211X, 210739, 6.5-4-3911-1, 6.5-4-3911-1X, 6.5-4-3911XR, 6.5-4-3921-1, 6.5-4-3921-1X, 6.5-4-4611-1X, 6543911XR, N6.5-4-3921-1X, S-B430
Regular price
$142.64
Unit price
/
Unavailable
Shipping calculated at checkout.
Half Round Style 1810 Series End Yoke 46 Spline | 126690, 181MU51P23, 18N39211X, 18N4-3921-1X, 2039-773-C, 2104-65439211X, 210739, 6.5-4-3911-1, 6.5-4-3911-1X, 6.5-4-3911XR, 6.5-4-3921-1, 6.5-4-3921-1X, 6.5-4-4611-1X, 6543911XR, N6.5-4-3921-1X, S-B430 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Half Round Style 1810 Series End Yoke 46 Spline | 126690, 181MU51P2...
Regular price
$142.64
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | Yes |
|---|---|
| Bearing Type | HR |
| C'bore Depth | 0.58 Inch |
| C-Bore Depth | 0.58 Inch |
| Centerline to End | 6 Inch |
| Centerline To End | 6 |
| Dimensions | Spline Size: 2.390 - 46 Major Diameter: 2.390 Ground Hub Diameter: 3.375 Length Thru Hole: 3.188 Centerline To End: 6.000 CBore Depth: 0.580 Inch |
| Ground Hub Diameter | 3.375 Inch |
| Includes Slinger/Plug | Yes |
| Length Thru Hole | 3.188 Inch |
| Length Thru Hole | 3.188 Inch |
| Major Diameter | 2.39 Inch |
| Material | Steel |
| Maximum Hub Diameter | 3.375 Inch |
| Outside Yoke Dimension | 7.643 Inch |
| Series | 1810 Series (Half Round) |
| Spline Quantity | 46 |
| Spline Size | 2.390 - 46 Inch |
| Style | HR |
| Type | Splined Hole |
| U Joint Cap Diameter | 2.39 Inch |
| Yoke Bearing Dimension | 1.938 Inch |
| Yoke Style | HR |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Eaton | 126690 |
| Mack | 181MU51P23 |
| Meritor | 18N39211X |
| Meritor | 18N4-3921-1X |
| International | 2039-773-C |
| Mack | 2104-65439211X |
| Eaton | 210739 |
| Spicer | 6.5-4-3911-1 |
| Spicer | 6.5-4-3911-1X |
| World American | 6.5-4-3911XR |
| Spicer | 6.5-4-3921-1 |
| Spicer | 6.5-4-3921-1X |
| Spicer | 6.5-4-4611-1X |
| World American | 6543911XR |
| Neapco OE Series | N6.5-4-3921-1X |
| Genuine Newstar | S-B430 |
| Genuine Newstar | SB430 |
| Genuine Newstar | SD-6.5-4-3921-1X |
