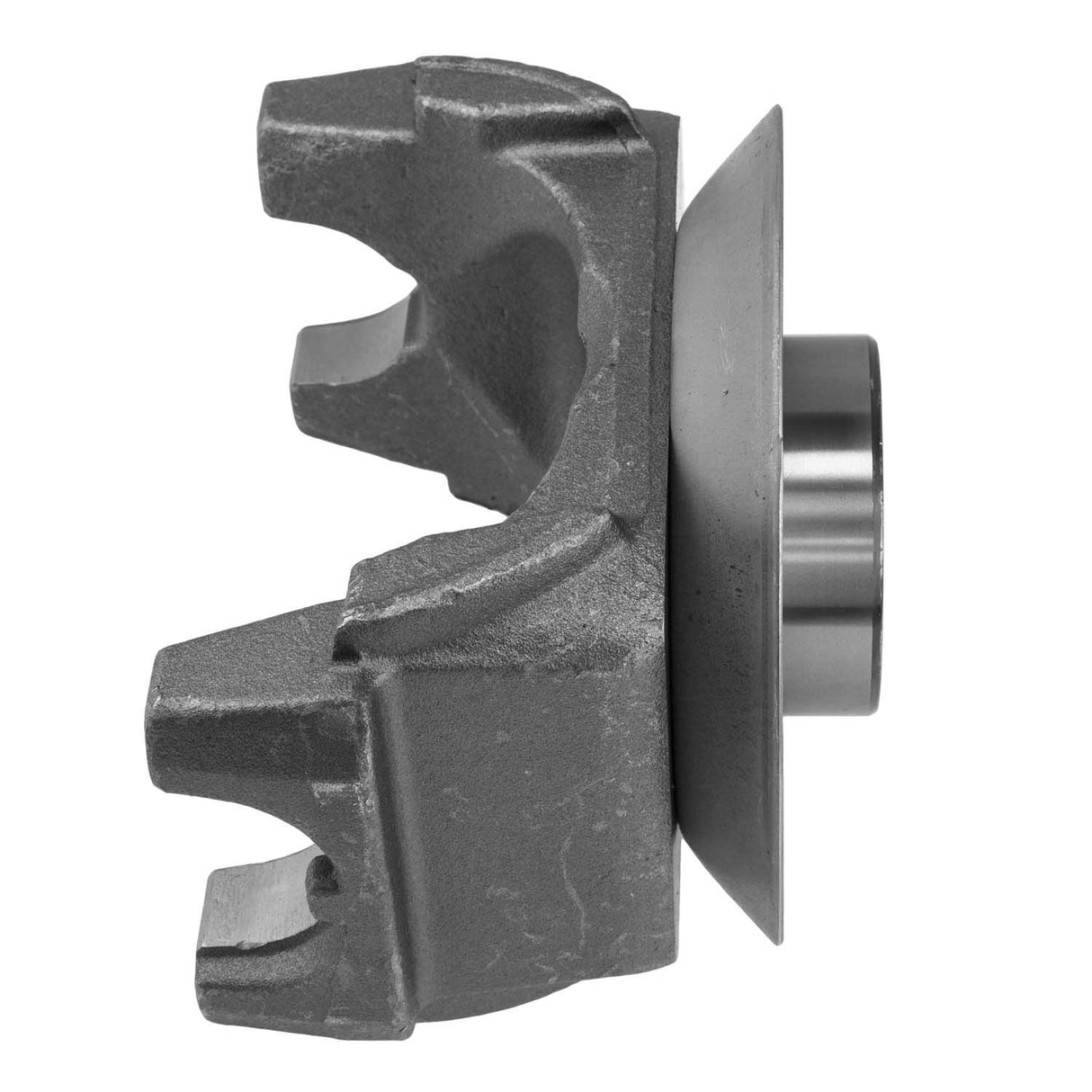

Half Round Style 1810 Series End Yoke 46 Spline | 166084C, 166084C91, 1666-084-C, 1666084C91, 18N 4 3731 1X, 18N-4-3731-1X, 18N4-3731-1X, 18N437311X, 18TYS38-16A, 18TYS38-27A, 2010-004-C, 6.5-4-3721-1, 6.5-4-3731-1, 6.5-4-3731-1R, 6.5-4-3731-1XWEL
Regular price
$227.76
Unit price
/
Unavailable
Shipping calculated at checkout.
Half Round Style 1810 Series End Yoke 46 Spline | 166084C, 166084C91, 1666-084-C, 1666084C91, 18N 4 3731 1X, 18N-4-3731-1X, 18N4-3731-1X, 18N437311X, 18TYS38-16A, 18TYS38-27A, 2010-004-C, 6.5-4-3721-1, 6.5-4-3731-1, 6.5-4-3731-1R, 6.5-4-3731-1XWEL is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Half Round Style 1810 Series End Yoke 46 Spline | 166084C, 166084C9...
Regular price
$227.76
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Across Ears | 7.63 Inch |
|---|---|
| Assembly | Yes |
| Bearing Cap Diameter | 1.94 Inch |
| Bearing Type | HR |
| C'bore Depth | 0.14 Inch |
| C-Bore Depth | 0.14 Inch |
| Centerline to End | 5.156 Inch |
| Centerline To End | 5.156 |
| Dimensions | Spline Size: 2.390 - 46 Major Diameter: 2.390 Ground Hub Diameter: 3.250 Length Thru Hole: 2.312 Centerline To End: 5.156 CBore Depth: 0.140 Inch |
| Ground Hub Diameter | 3.25 Inch |
| Ground Hub Diameter | 3.25 Inch |
| Includes Slinger/Plug | Yes |
| Involute Spline | Yes |
| Joint Angle | 32 Degrees |
| Length Thru Hole | 2.312 Inch |
| Length Thru Hole | 2.312 Inch |
| Major Diameter | 2.39 Inch |
| Material | Steel |
| Maximum Hub Diameter | 3.25 Inch |
| Outside Yoke Dimension | 7.643 Inch |
| Series | 1810 Series (Half Round) |
| Spline Diameter | 2.375 Inch |
| Spline Length | 2.32 Inch |
| Spline Quantity | 46 |
| Spline Size | 2.390 - 46 Inch |
| Style | HR |
| Type | Splined Hole |
| Universal Joint Series | 1810 |
| Yoke Bearing Dimension | 1.938 Inch |
| Yoke Style | HR |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| International | 166084C |
| International | 166084C91 |
| International | 1666-084-C |
| Spicer | 1666084C91 |
| Meritor | 18N 4 3731 1X |
| Meritor | 18N-4-3731-1X |
| Meritor | 18N4-3731-1X |
| Spicer | 18N437311X |
| Meritor | 18TYS38-16A |
| Meritor | 18TYS38-27A |
| International | 2010-004-C |
| Spicer | 6.5-4-3721-1 |
| Spicer | 6.5-4-3731-1 |
| World American | 6.5-4-3731-1R |
| Spicer | 6.5-4-3731-1XWEL |
| World American | 65437311R |
| Prima Brands | 65437311X |
| Spicer | 65437311XWEL |
| Automann | 823518TYS3827A |
| Meritor | A-3260-L-1260 |
| OE Aftermarket | N6.5-4-3731-1X |
| Spicer | PAC6.5-4-3731-1X |
| Genuine Newstar | S-B452 |
| Genuine Newstar | SB452 |
| Genuine Newstar | SD-6.5-4-3731-1X |
| Freightliner | TDA 18N4 3731 1X |
| Freightliner | TDA 18TYS38-27A |
