SKU:
GTP06064

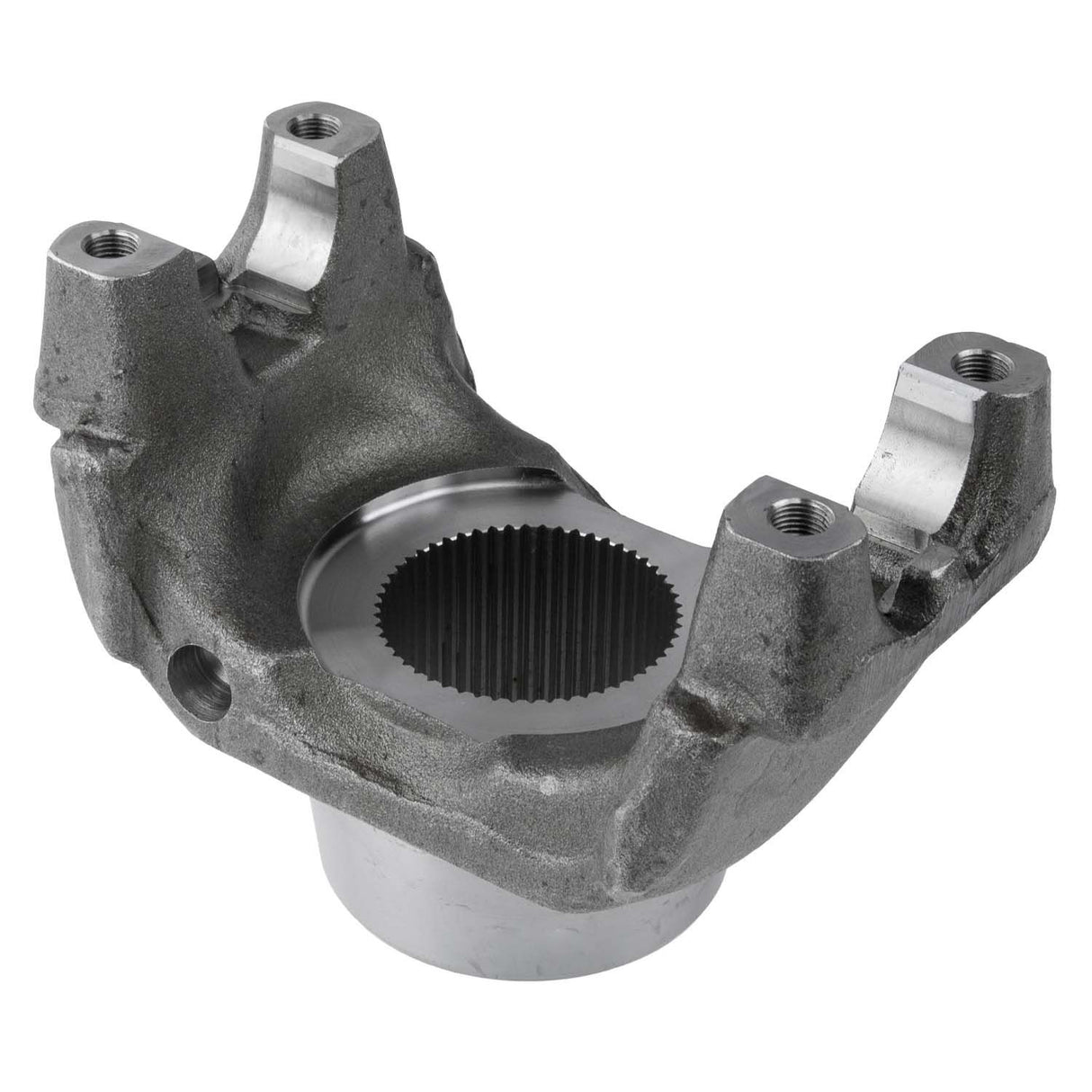

Half Round Style 1810 Series End Yoke 54 Spline | 18TYS45, 2104-65446311, 210465446311, 3507-640-C, 3507640C, 3507640C1, 3534-225-C, 3971288, 5505547, 6.5-4-4631-1, 6.5-4-4631-1N, 6.5-4-4631-1X, 65446311, FUL5505547, N6.5-4-4631-1, NEPN6.5-4-4631-1
Regular price
$128.03
Unit price
/
Unavailable
Shipping calculated at checkout.
Half Round Style 1810 Series End Yoke 54 Spline | 18TYS45, 2104-65446311, 210465446311, 3507-640-C, 3507640C, 3507640C1, 3534-225-C, 3971288, 5505547, 6.5-4-4631-1, 6.5-4-4631-1N, 6.5-4-4631-1X, 65446311, FUL5505547, N6.5-4-4631-1, NEPN6.5-4-4631-1 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Half Round Style 1810 Series End Yoke 54 Spline | 18TYS45, 2104-654...
Regular price
$128.03
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | No |
|---|---|
| Centerline To End | 5.625 |
| Centerline to End | 5.625 Inch |
| Dimensions | Spline Size: 2.794 - 54 Major Diameter: 2.794 Length Thru Hole: 2.750 Centerline To End: 5.625 Inch |
| Includes Slinger/Plug | No |
| Joint Angle | 30 Degrees |
| Length Thru Hole | 2.75 Inch |
| Length Thru Hole | 2.75 Inch |
| Major Diameter | 2.794 Inch |
| Material | Steel |
| Outside Yoke Dimension | 7.643 Inch |
| Schematic | FRF15210B |
| Schematic | FROF16210B |
| Schematic | FROF16210C |
| Series | 1810 Series (Half Round) |
| Spline Diameter | 2.794 Inch |
| Spline Quantity | 54 |
| Spline Size | 2.794 - 54 Inch |
| Style | HR |
| Type | Splined Hole |
| U Joint Cap Diameter | 2.794 Inch |
| Yoke Bearing Dimension | 1.938 Inch |
| Yoke Style | HR |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Meritor | 18TYS45 |
| Mack | 2104-65446311 |
| Automann | 210465446311 |
| International | 3507-640-C |
| International | 3507640C |
| International | 3507640C1 |
| International | 3534-225-C |
| Volvo Truck | 3971288 |
| Fuller- Transmissions | 5505547 |
| Spicer | 6.5-4-4631-1 |
| Spicer | 6.5-4-4631-1N |
| Spicer | 6.5-4-4631-1X |
| Prima Brands | 65446311 |
| Fuller- Transmissions | FUL5505547 |
| Spicer | N6.5-4-4631-1 |
| Automann | NEPN6.5-4-4631-1 |
| Genuine Newstar | S-F030 |
| Genuine Newstar | SD-6.5-4-4631-1 |
| Genuine Newstar | SF030 |
| Freightliner | SP6.5446311 |
| Spicer | TDA18TYS45 |
