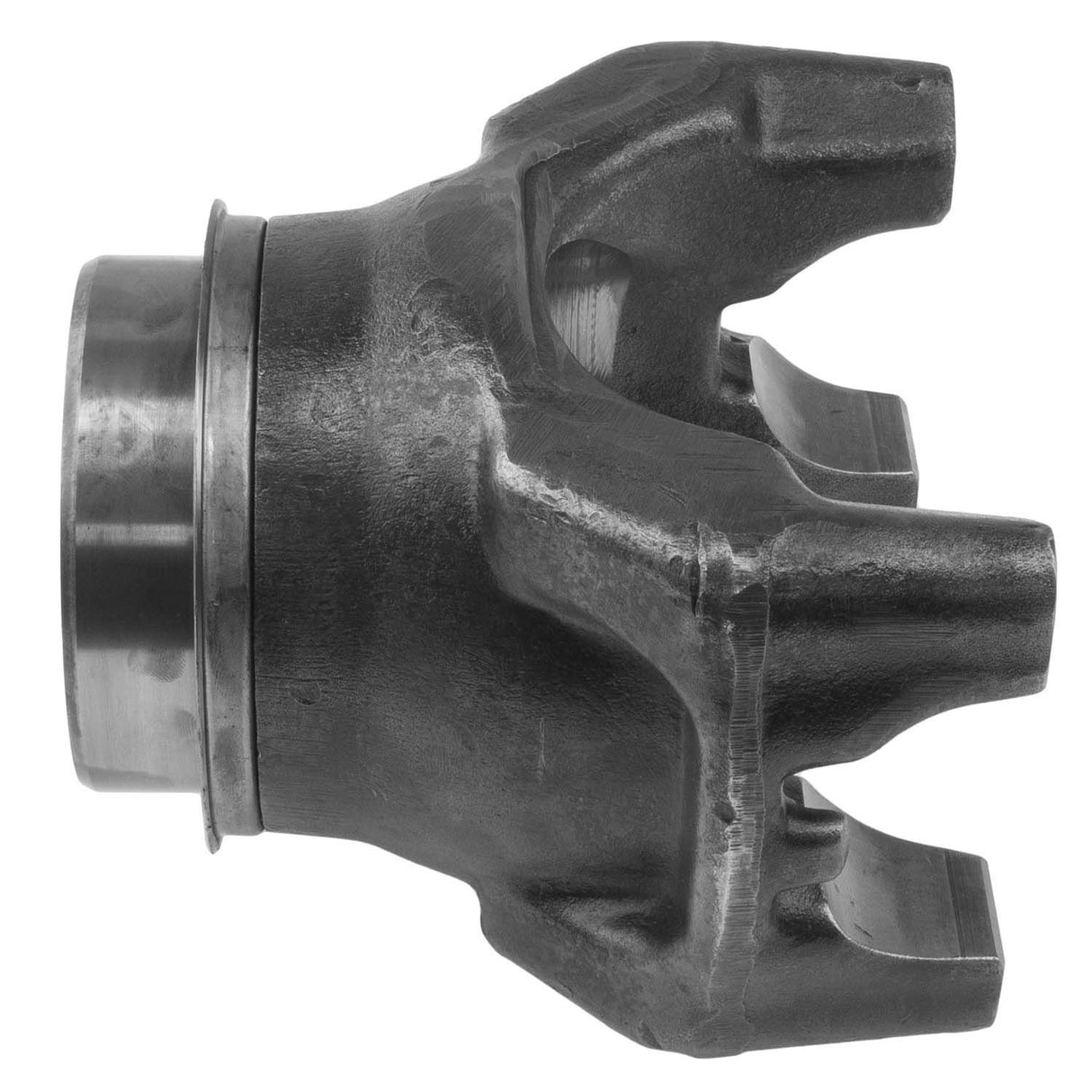

Half Round Style SPL170 Series End Yoke 10 Spline | 170-4-511-1, 170-4-521-1, 170-4-521-1X, 3514642C91, S-22757, S22757, SD-170-4-521-1X, SD17045211X, SP17045211X
Regular price
$173.58
Unit price
/
Unavailable
Shipping calculated at checkout.
Half Round Style SPL170 Series End Yoke 10 Spline | 170-4-511-1, 170-4-521-1, 170-4-521-1X, 3514642C91, S-22757, S22757, SD-170-4-521-1X, SD17045211X, SP17045211X is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Half Round Style SPL170 Series End Yoke 10 Spline | 170-4-511-1, 17...
Regular price
$173.58
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | Yes |
|---|---|
| Bearing Type | HR |
| Centerline To End | 5.85 |
| Centerline to End | 5.85 Inch |
| Dimensions | Spline Size: 2.750 - 10 Major Diameter: 2.750 Ground Hub Diameter: 3.750 Length Thru Hole: 3.000 Centerline To End: 5.850 Inch |
| Ground Hub Diameter | 3.75 Inch |
| Includes Slinger/Plug | Yes |
| Involute Spline | No |
| Length Thru Hole | 3 Inch |
| Length Thru Hole | 3 Inch |
| Major Diameter | 2.75 Inch |
| Material | Steel |
| Maximum Hub Diameter | 3.75 Inch |
| Outside Yoke Dimension | 6.456 Inch |
| Series | SPL170 Series |
| Spline Quantity | 10 |
| Spline Size | 2.750 - 10 Inch |
| Spline Size | 2.750-10 Inch |
| Style | HR |
| Type | Splined Hole |
| U Joint Cap Diameter | 2.75 Inch |
| Yoke Bearing Dimension | 2.166 Inch |
| Yoke Style | HR |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Spicer | 170-4-511-1 |
| Spicer | 170-4-521-1 |
| Spicer | 170-4-521-1X |
| International | 3514642C91 |
| Genuine Newstar | S-22757 |
| Genuine Newstar | S22757 |
| Genuine Newstar | SD-170-4-521-1X |
| Spicer | SD17045211X |
| Freightliner | SP17045211X |
