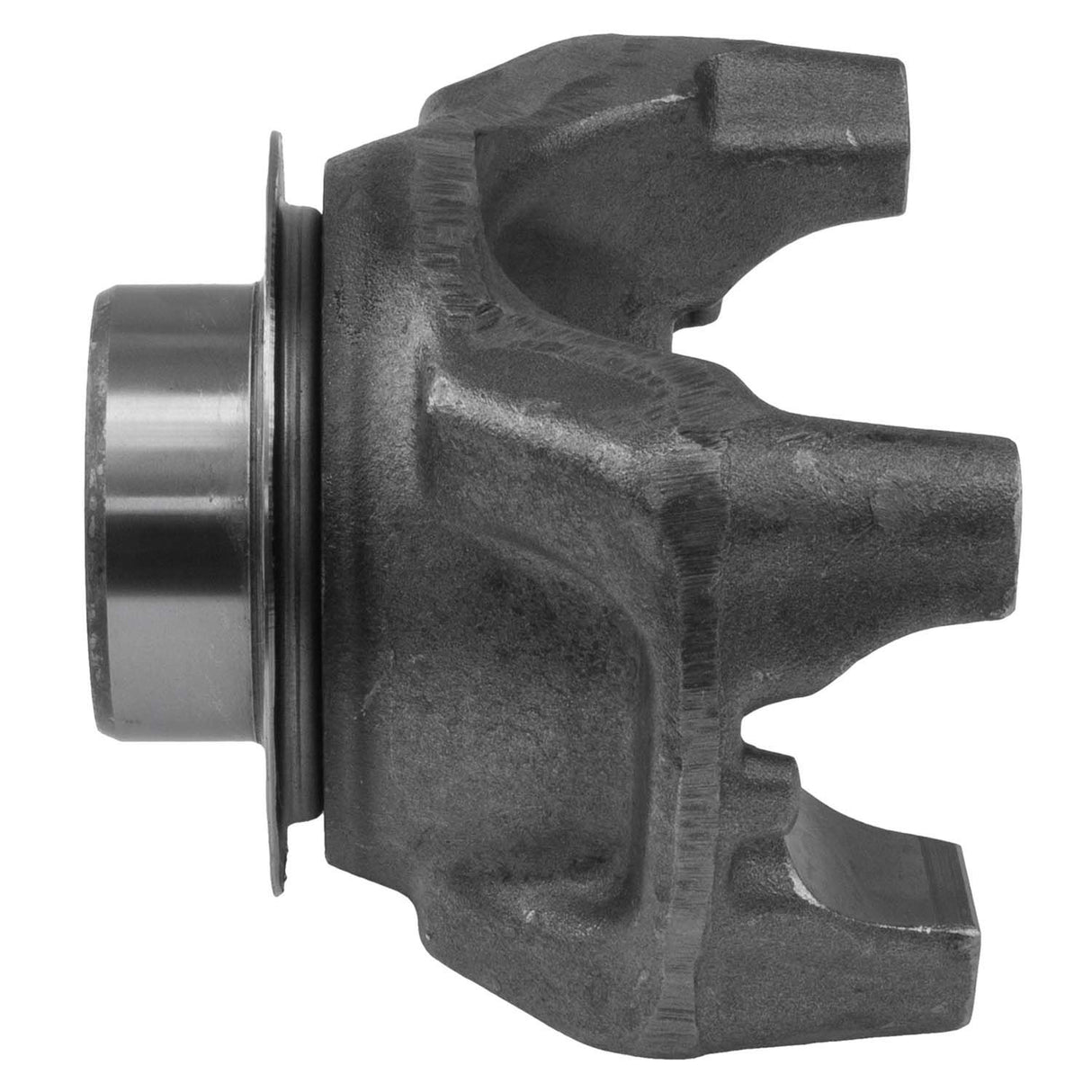

Half Round Style SPL170 Series End Yoke 39 Spline | 17-04251, 170-4-251, 170-4-251-1R, 170-4-251X, 170-4-261-1X, 170-4-521-1X, N170-4-261-1X, N170-4-521-1X, S-14944, S14944, SD-170-4-261-1X, SD17042611X
Regular price
$138.93
Unit price
/
Unavailable
Shipping calculated at checkout.
Half Round Style SPL170 Series End Yoke 39 Spline | 17-04251, 170-4-251, 170-4-251-1R, 170-4-251X, 170-4-261-1X, 170-4-521-1X, N170-4-261-1X, N170-4-521-1X, S-14944, S14944, SD-170-4-261-1X, SD17042611X is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Half Round Style SPL170 Series End Yoke 39 Spline | 17-04251, 170-4...
Regular price
$138.93
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | Yes |
|---|---|
| Bearing Type | HR |
| C'bore Depth | 0.25 Inch |
| C-Bore Depth | 0.25 Inch |
| C-Bore Diameter | 2.047 Inch |
| Centerline to End | 5.156 Inch |
| Centerline To End | 5.156 |
| Dimensions | Spline Size: 2.024 - 39 Major Diameter: 2.024 Ground Hub Diameter: 3.000 Length Thru Hole: 2.281 Centerline To End: 5.156 CBore Depth: 0.250 Inch |
| Ground Hub Diameter | 3 Inch |
| Includes Slinger/Plug | Yes |
| Joint Angle | 25 Degrees |
| Length Thru Hole | 2.281 Inch |
| Length Thru Hole | 2.281 Inch |
| Major Diameter | 2.024 Inch |
| Material | Steel |
| Maximum Hub Diameter | 3 Inch |
| Series | SPL170 Series |
| Spline Diameter | 2.024 Inch |
| Spline Quantity | 39 |
| Spline Size | 2.024 - 39 Inch |
| Style | HR |
| Type | Splined Hole |
| U Joint Cap Diameter | 2.024 Inch |
| Yoke Style | HR |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Spicer | 17-04251 |
| Spicer | 170-4-251 |
| World American | 170-4-251-1R |
| Spicer | 170-4-251X |
| Spicer | 170-4-261-1X |
| Spicer | 170-4-521-1X |
| Neapco OE Series | N170-4-261-1X |
| Spicer | N170-4-521-1X |
| Genuine Newstar | S-14944 |
| Genuine Newstar | S14944 |
| Genuine Newstar | SD-170-4-261-1X |
| Spicer | SD17042611X |
