SKU: GTP06215

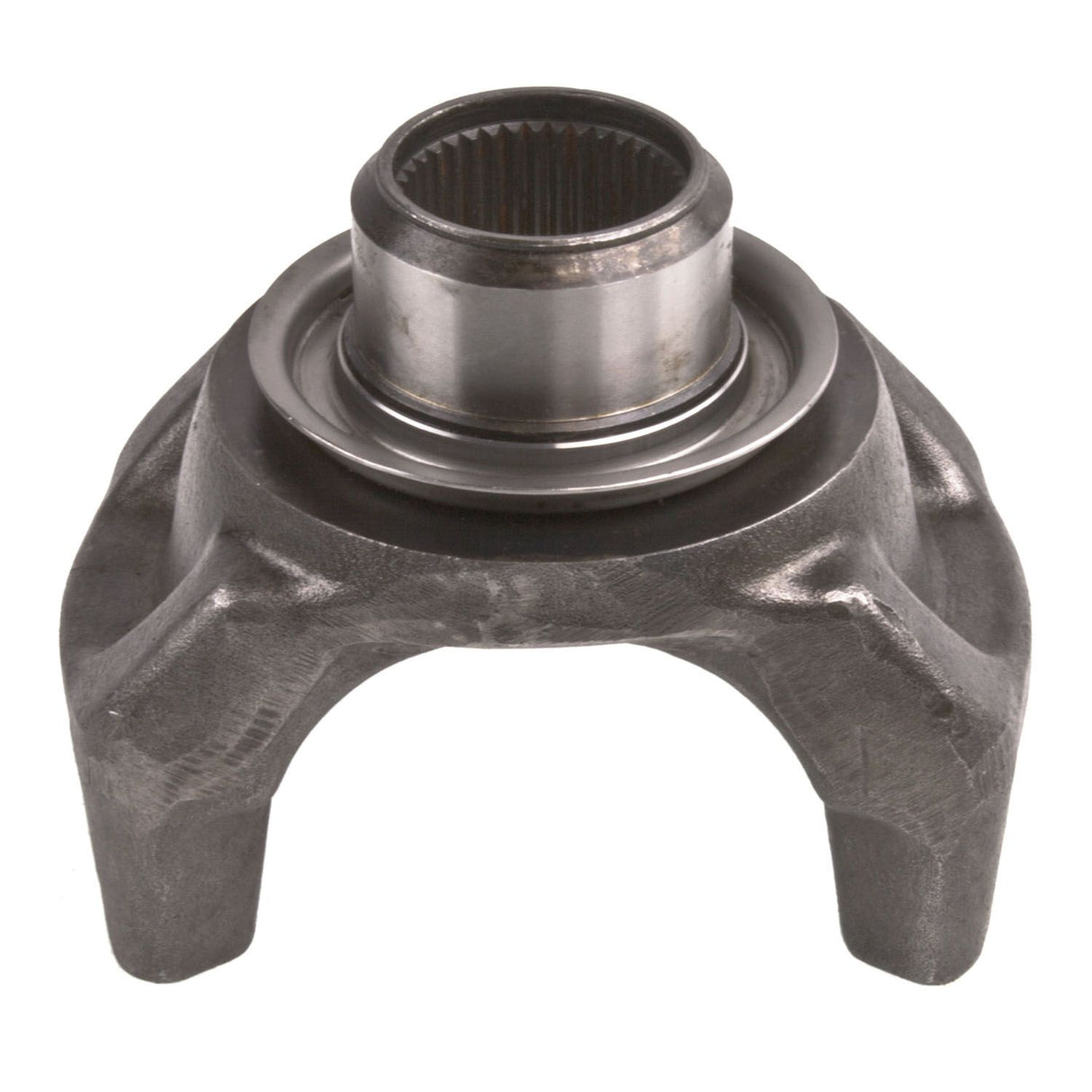

Half Round Style SPL170 Series End Yoke 39 Spline | 170-4-221-1X, 170N4-221-1X, 210835, 3099410, 3513134C, 3513134C91, ETN17042211X, S-F217, SD-170-4-221-1X, SD17042211X, SF217, SP170-4-221-1X

Name: Half Round Style SPL170 Series End Yoke 39 Spline | 170-4-221-1X, 170N4-221-1X, 210835, 3099410, 3513134C, 3513134C91, ETN17042211X, S-F217, SD-170-4-221-1X, SD17042211X, SF217, SP170-4-221-1X
Brand: Newstar
SKU: GTP06215
Price: 145.16 USD
Availability: InStock

$145.16

Shipping calculated at checkout.

If you need to order multiple parts, give us a call so our sales team can work to combine your order into fewer packages and save you money on shipping! 858-898-1558

Delivery and Shipping

This part typically ships within 1 to 2 business days.

This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.

Specifications

Assembly	No
Bearing Type	HR
C'bore Depth	0.25 Inch
C-Bore Depth	0.157 Inch
Centerline To End	5.27
Dimensions	Spline Size: 2.024 - 39 Major Diameter: 2.024 Ground Hub Diameter: 2.625 Length Thru Hole: 2.500 Centerline To End: 5.270 CBore Depth: 0.250 Inch
Ground Hub Diameter	2.625 Inch
Hole Diameter	2.39 Inch
Length Thru Hole	2.5 Inch
Major Diameter	2.024 Inch
Material	Steel
Series	SPL170 Series
Spline Quantity	39
Spline Size	2.024 - 39 Inch
Style	HR
Type	Splined Hole
U Joint Cap Diameter	2.024 Inch
Yoke Style	HR
Warranty Period	1 Year or 100,000 Miles

Interchange / Cross-Reference Numbers

Brand	Part Number
Spicer	170-4-221-1X
Meritor	170N4-221-1X
Eaton	210835
Volvo Truck	3099410
International	3513134C
International	3513134C91
Spicer	ETN17042211X
Genuine Newstar	S-F217
Genuine Newstar	SD-170-4-221-1X
Spicer	SD17042211X
Genuine Newstar	SF217
Freightliner	SP170-4-221-1X
