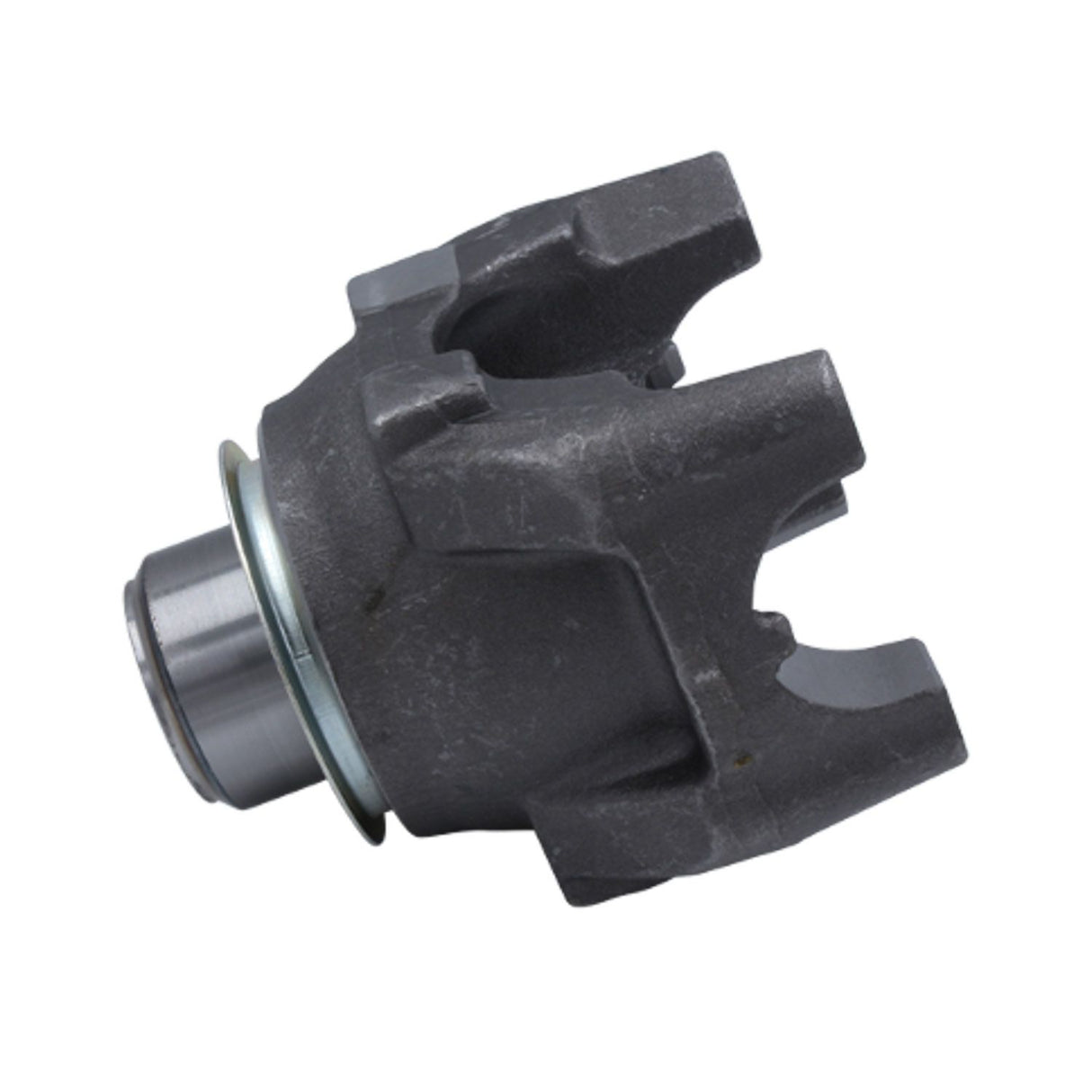

Half Round Style SPL170 Series End Yoke 39 Spline | 170-4-231-1R, 170-4-241-1, 170-4-241-1R, 170-4-241-1X, S-13866, S13866, SD-170-4-241-1X, SD17042411X
Regular price
$236.95
Unit price
/
Unavailable
Shipping calculated at checkout.
Half Round Style SPL170 Series End Yoke 39 Spline | 170-4-231-1R, 170-4-241-1, 170-4-241-1R, 170-4-241-1X, S-13866, S13866, SD-170-4-241-1X, SD17042411X is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Half Round Style SPL170 Series End Yoke 39 Spline | 170-4-231-1R, 1...
Regular price
$236.95
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Bearing Type | HR |
|---|---|
| C'bore Depth | 0.25 Inch |
| Centerline To End | 6.5 |
| Dimensions | Spline Size: 2.024 - 39 Major Diameter: 2.024 Ground Hub Diameter: 2.625 Length Thru Hole: 2.500 Centerline To End: 6.500 CBore Depth: 0.250 Inch |
| Ground Hub Diameter | 2.625 Inch |
| Length Thru Hole | 2.5 Inch |
| Major Diameter | 2.024 Inch |
| Series | SPL170 Series |
| Spline Size | 2.024 - 39 Inch |
| Style | HR |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| World American | 170-4-231-1R |
| OE Aftermarket | 170-4-241-1 |
| World American | 170-4-241-1R |
| Spicer | 170-4-241-1X |
| Genuine Newstar | S-13866 |
| Genuine Newstar | S13866 |
| Genuine Newstar | SD-170-4-241-1X |
| Spicer | SD17042411X |
