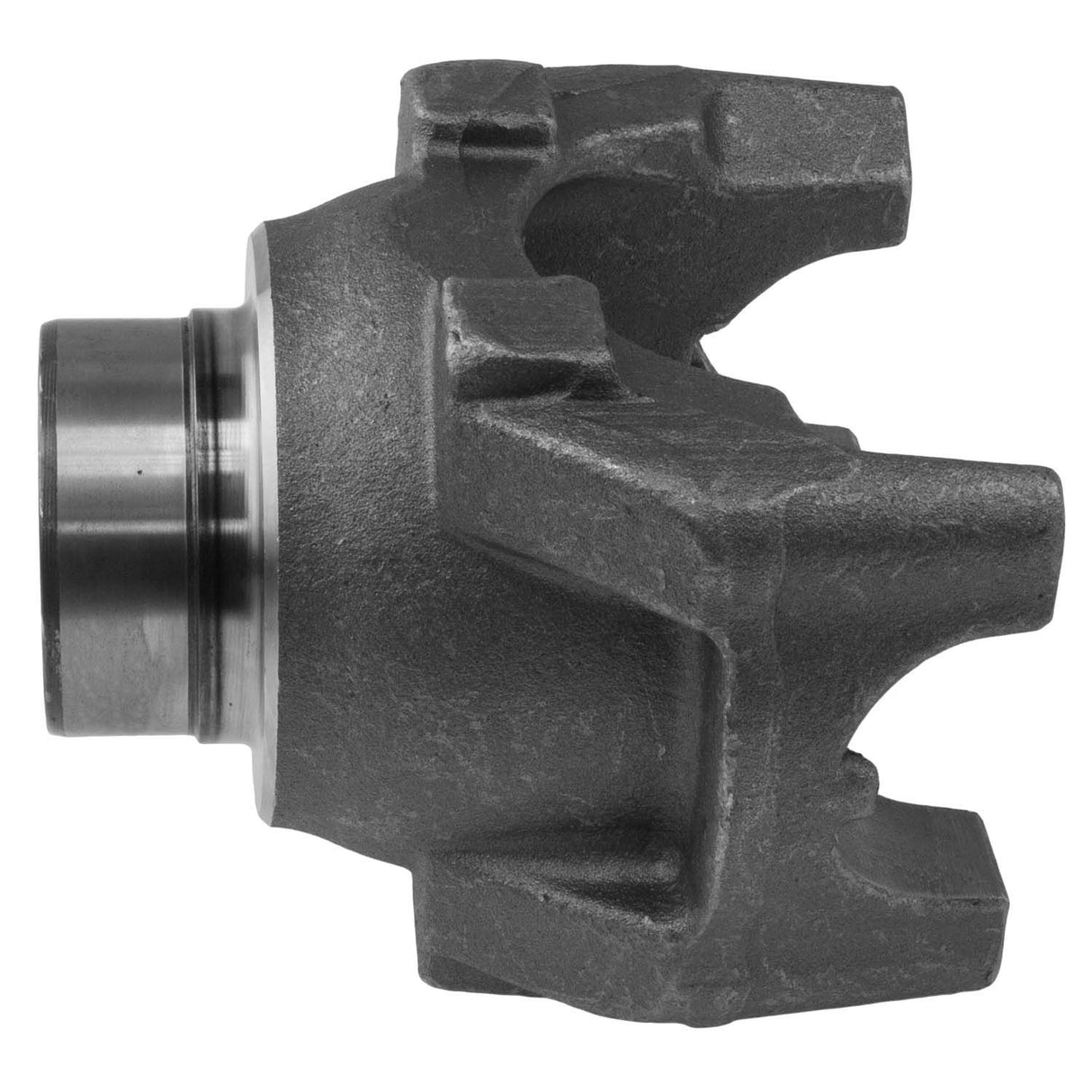

Half Round Style SPL170 Series End Yoke 39 Spline | 170-4-271-1X, 170-4-281-1, 170-4-281-1XR, S-13499, S-27571, S13499, S27571, SD-170-4-281-1, SP17042811X
Regular price
$129.15
Unit price
/
Unavailable
Shipping calculated at checkout.
Half Round Style SPL170 Series End Yoke 39 Spline | 170-4-271-1X, 170-4-281-1, 170-4-281-1XR, S-13499, S-27571, S13499, S27571, SD-170-4-281-1, SP17042811X is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Half Round Style SPL170 Series End Yoke 39 Spline | 170-4-271-1X, 1...
Regular price
$129.15
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | Yes |
|---|---|
| C-Bore Depth | 0.25 Inch |
| Centerline to End | 6.24 Inch |
| Includes Slinger/Plug | Yes |
| Involute Spline | Yes |
| Length Thru Hole | 2.281 Inch |
| Material | Steel |
| Outside Yoke Dimension | 6.456 Inch |
| Series | SPL170 Series |
| Spline Quantity | 39 |
| Type | Splined Hole |
| U Joint Cap Diameter | 2.024 Inch |
| Yoke Bearing Dimension | 2.166 Inch |
| Yoke Style | HR |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Spicer | 170-4-271-1X |
| Spicer | 170-4-281-1 |
| World American | 170-4-281-1XR |
| Genuine Newstar | S-13499 |
| Genuine Newstar | S-27571 |
| Genuine Newstar | S13499 |
| Genuine Newstar | S27571 |
| Genuine Newstar | SD-170-4-281-1 |
| Freightliner | SP17042811X |
