SKU: GTP06988

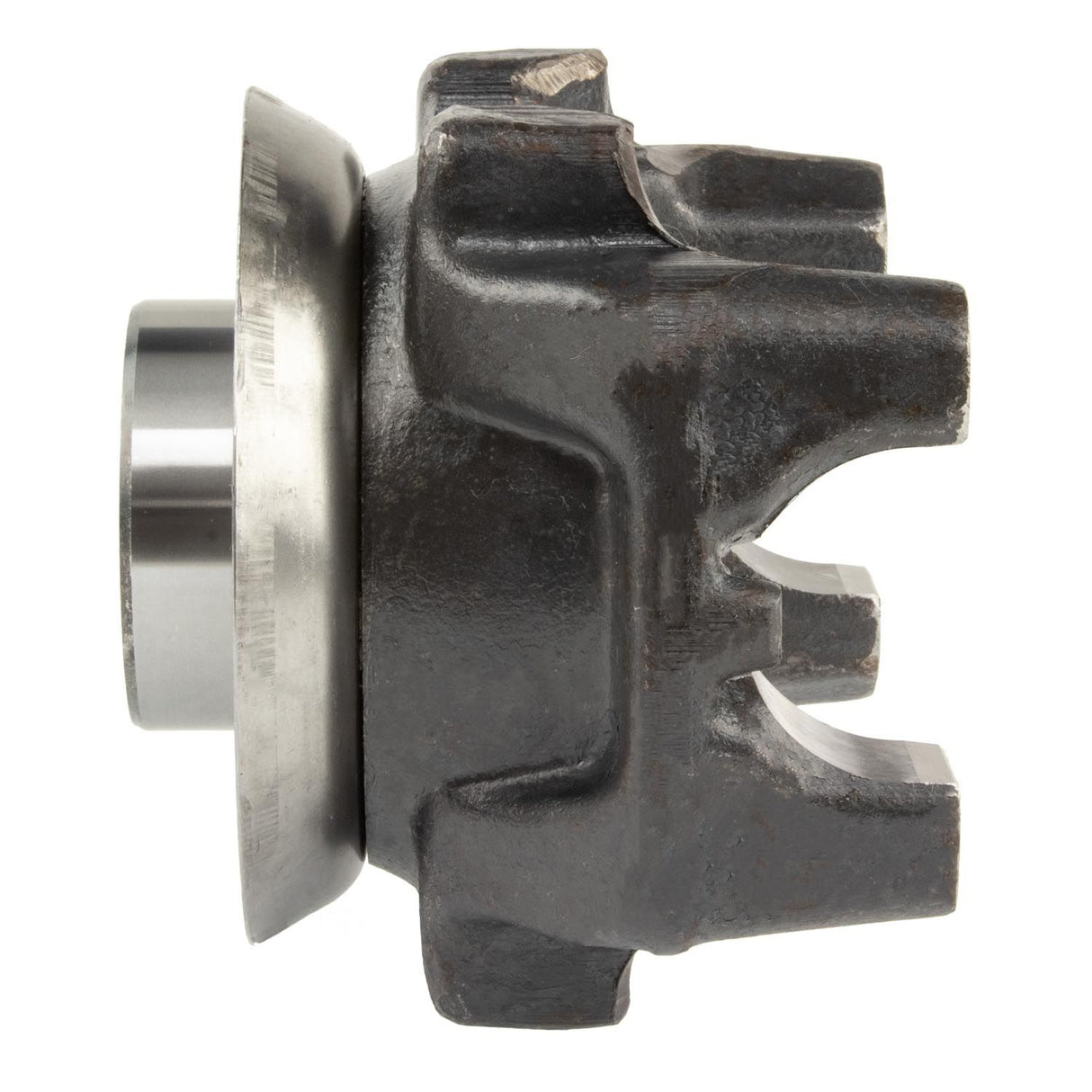

Half Round Style SPL170 Series End Yoke 39 Spline | 170-4-651-1, 170-4-651-1X, 170MU51P20, 170TYS322A, S-20114, S20114, SD-170-4-651-1X, SD17046511X

Name: Half Round Style SPL170 Series End Yoke 39 Spline | 170-4-651-1, 170-4-651-1X, 170MU51P20, 170TYS322A, S-20114, S20114, SD-170-4-651-1X, SD17046511X
Brand: Newstar
SKU: GTP06988
Price: 125.24 USD
Availability: InStock

$125.24

Shipping calculated at checkout.

If you need to order multiple parts, give us a call so our sales team can work to combine your order into fewer packages and save you money on shipping! 858-898-1558

Delivery and Shipping

This part typically ships within 1 to 2 business days.

This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.

Specifications

Assembly	Yes
Bearing Type	HR
Bore Diameter	2.024 Inch
C'bore Depth	0.105 Inch
C-Bore Depth	0.105 Inch
Centerline to End	5.09 Inch
Centerline To End	5.09
Dimensions	Spline Size: 2.024 - 39 Major Diameter: 2.024 Ground Hub Diameter: 3.000 Length Thru Hole: 2.312 Centerline To End: 5.090 CBore Depth: 0.105 Inch
Ground Hub Diameter	3 Inch
Includes Slinger/Plug	Yes
Involute Spline	No
Length Thru Hole	2.312 Inch
Length Thru Hole	2.312 Inch
Major Diameter	2.024 Inch
Material	Steel
Outside Yoke Dimension	6.456 Inch
Series	SPL170 Series
Spline Quantity	39
Spline Size	2.024 - 39 Inch
Style	HR
Type	Splined Hole
Yoke Bearing Dimension	2.166 Inch
Yoke Style	HR
Warranty Period	1 Year or 100,000 Miles

Interchange / Cross-Reference Numbers

Brand	Part Number
Spicer	170-4-651-1
Spicer	170-4-651-1X
Mack	170MU51P20
Meritor	170TYS322A
Genuine Newstar	S-20114
Genuine Newstar	S20114
Genuine Newstar	SD-170-4-651-1X
Spicer	SD17046511X
