SKU:
GTP06211

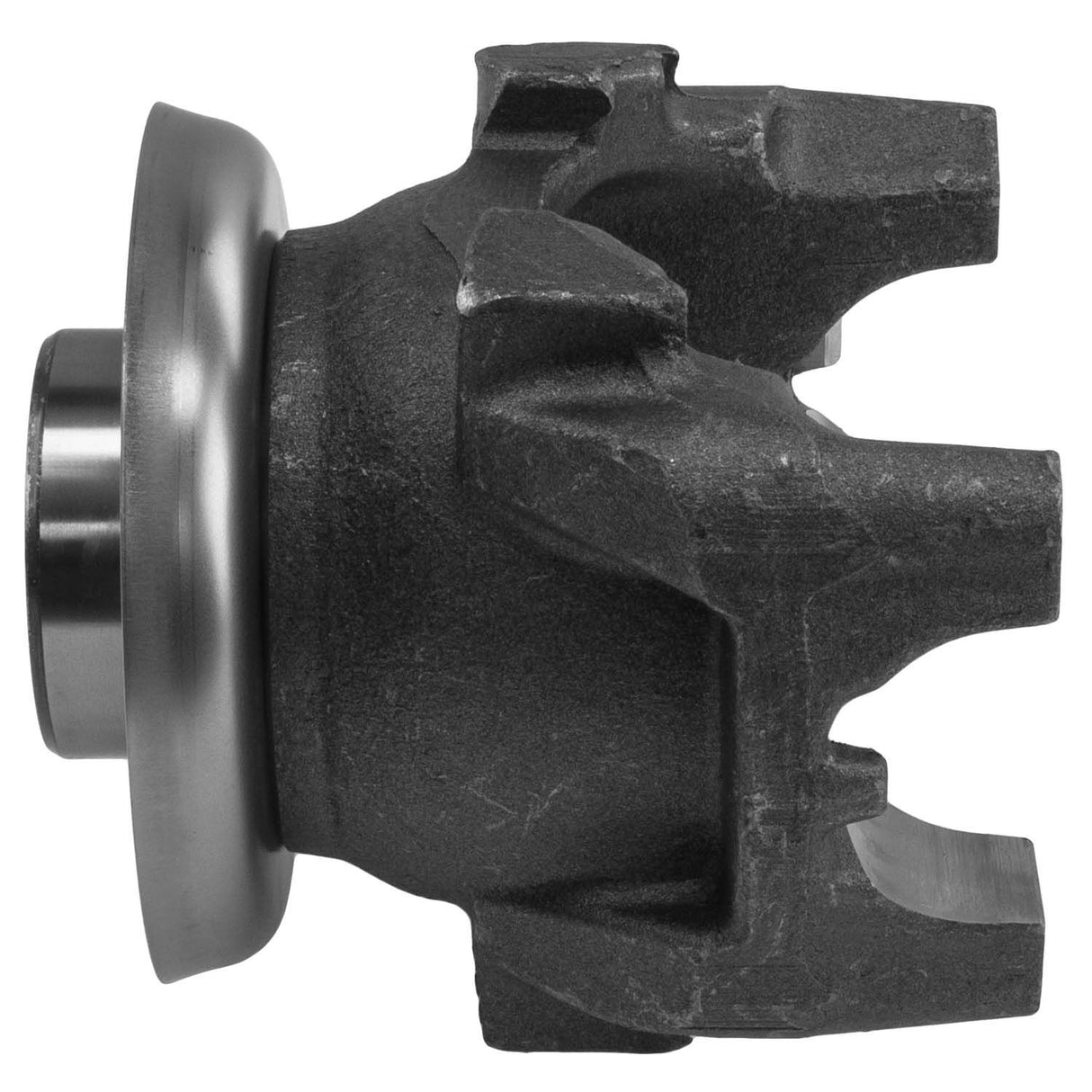

Half Round Style SPL170 Series End Yoke 39 Spline | 170-4-661-1, 170-4-691-1X, 17046611, 17046711X, 176-MU-41-P18, 2104-17046711X, 2603-016-C, 2603016C91, 3513-842-C, 3513842C, 3513842C91, 52152525, 8081937, N170-4-671-1X, S-13334, S-15187, S13334, S15187
Regular price
$144.93
Unit price
/
Unavailable
Shipping calculated at checkout.
Half Round Style SPL170 Series End Yoke 39 Spline | 170-4-661-1, 170-4-691-1X, 17046611, 17046711X, 176-MU-41-P18, 2104-17046711X, 2603-016-C, 2603016C91, 3513-842-C, 3513842C, 3513842C91, 52152525, 8081937, N170-4-671-1X, S-13334, S-15187, S13334, S15187 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
This part typically ships within 1 to 2 business days.
Half Round Style SPL170 Series End Yoke 39 Spline | 170-4-661-1, 17...
Regular price
$144.93
Unit price
/
Unavailable
This Differential End Yoke is precision manufactured to OEM gear ratios and tooth geometry. It distributes torque efficiently between axles, maximizing traction and minimizing wear in commercial trucks.
Specifications
| Assembly | Yes |
|---|---|
| Bearing Type | HR |
| C'bore Depth | 0.105 Inch |
| C-Bore Depth | 0.105 Inch |
| C-Bore Diameter | 2.072 Inch |
| Centerline to End | 6.391 Inch |
| Centerline To End | 6.391 |
| Dimensions | Spline Size: 2.024 - 39 Major Diameter: 2.024 Ground Hub Diameter: 3.000 Length Thru Hole: 2.312 Centerline To End: 6.391 CBore Depth: 0.105 Inch |
| Ground Hub Diameter | 3 Inch |
| Includes Slinger/Plug | Yes |
| Joint Angle | 45 Degrees |
| Length Thru Hole | 2.312 Inch |
| Length Thru Hole | 2.312 Inch |
| Major Diameter | 2.024 Inch |
| Material | Steel |
| Maximum Hub Diameter | 3 Inch |
| Series | SPL170 Series |
| Spline Diameter | 2.024 Inch |
| Spline Quantity | 39 |
| Spline Size | 2.024 - 39 Inch |
| Style | HR |
| Type | Splined Hole |
| U Joint Cap Diameter | 2.024 Inch |
| Yoke Style | HR |
| Warranty Period | 1 Year or 100,000 Miles |
Interchange / Cross-Reference Numbers
| Brand | Part Number |
|---|---|
| Spicer | 170-4-661-1 |
| OE Aftermarket | 170-4-691-1X |
| Spicer | 17046611 |
| Prima Brands | 17046711X |
| Mack | 176-MU-41-P18 |
| Mack | 2104-17046711X |
| International | 2603-016-C |
| Spicer | 2603016C91 |
| International | 3513-842-C |
| International | 3513842C |
| International | 3513842C91 |
| Mack | 52152525 |
| Volvo Truck | 8081937 |
| Neapco OE Series | N170-4-671-1X |
| Genuine Newstar | S-13334 |
| Genuine Newstar | S-15187 |
| Genuine Newstar | S13334 |
| Genuine Newstar | S15187 |
| Genuine Newstar | SD-170-4-671-1X |
| Spicer | SD17046711X |
| Freightliner | SP170-4-671-1X |
| Freightliner | SP17046711X |
